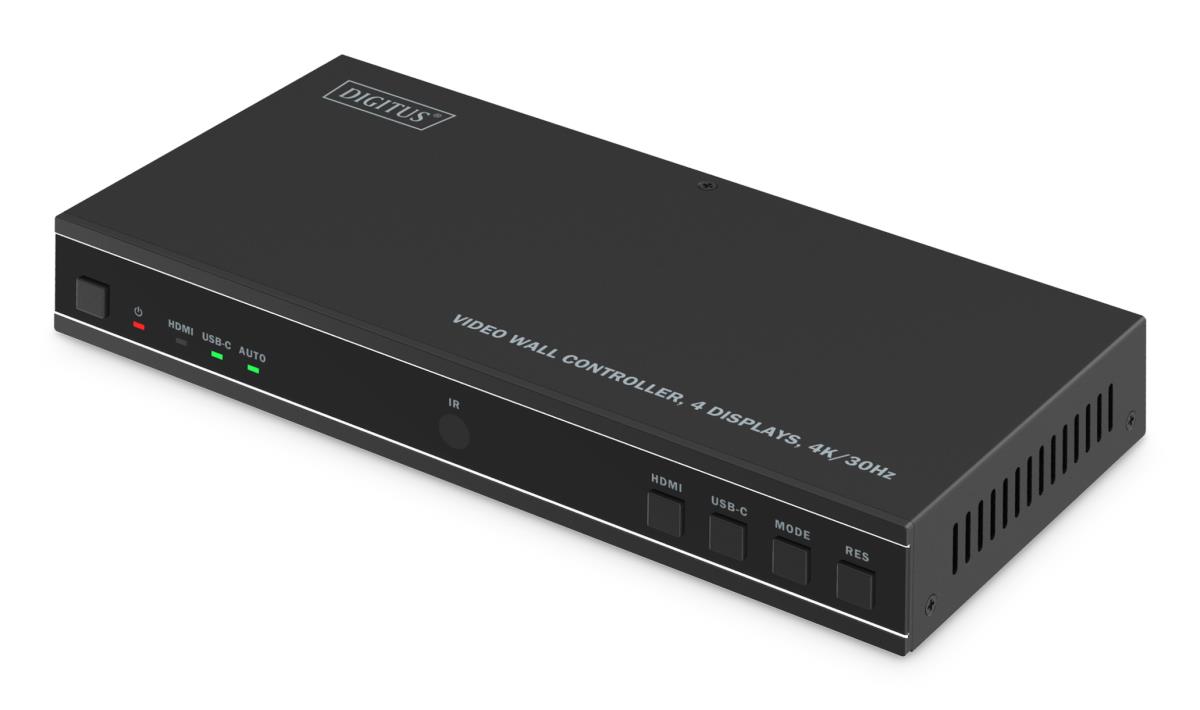

HDMI Video Wall Controller - 4 Displays 4K/30Hz, HDMI, USB-C, Black
ITCurry #: M9239883 | Article #: DS-55358-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Combine a video wall of 4 interconnected 4K UHD displays (HDMI) - 8 different display formations possible
- Input signal via HDMI (DMI 2.0) or USB-C (DP 1.2a) in a maximum resolution of 4K/60Hz
- Output signal (video wall mode, 4 displays) via HDMI in a maximum resolution of 4K/30Hz
- 8 display formations possible - 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2
- Audio extractor - enables decoupling of the audio signal, playback via separate speakers via analog 3.5 mm stereo or digital S/PDIF
- Supports 180° image rotation (simple switching via remote control) - perfect for ceiling installations, for example
- Convenient control options - control via remote control, on the device itself (front panel buttons) or via RS232
- Convenient switching of the resolutions of the 4 output displays on the device and via remote control
- Frame (Bezel) Adjustment - Move the frame of the picture in video wall mode conveniently via remote control
- Suitable for wall mounting
The video wall controller enables the impressive presentation of a video wall of up to four 4K UHD displays. Thanks to the flexible display formations (1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2), you can customize your setup - ideal for professional presentations, advertising displays or surveillance applications. The high-resolution signal processing ensures a maximum input resolution of 4K/60Hz via HDMI (DMI 2.0) or USB-C (DP 1.2a). The video wall is output in 4K/30Hz via HDMI, guaranteeing razor-sharp images. An integrated audio extractor enables separate output of the audio signal via 3.5 mm analog stereo or digital S/PDIF - perfect for external speakers. Thanks to 180° image rotation, the video wall can also be used for ceiling installations, while the intuitive control via remote control, directly on the device or via RS232 interface offers maximum ease of use. The resolutions of the displays can also be easily changed. The compact design and the option of wall mounting make the controller the ideal solution for versatile applications in the professional sector.
| Design | |
| Product colour | Black |
| Control type | Buttons |
| Housing material | Metal |
| Features | |
| Number of displays supported | 4 |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Ports & interfaces | |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 4 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2a |
| RS-232/422 connector | Yes |
| 3.5 mm connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Power | |
| Power consumption (typical) | 5.5 W |
| Input voltage | 12 V |
| Power supply location | External |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 590 g |
| Package width | 280 mm |
| Package depth | 180 mm |
| Package height | 80 mm |
| Package weight | 1.05 kg |
| Package type | Box |
| Packaging content | |
| Mounting kit | Yes |
| Warranty | |
| Base Warranty | Non Non |
