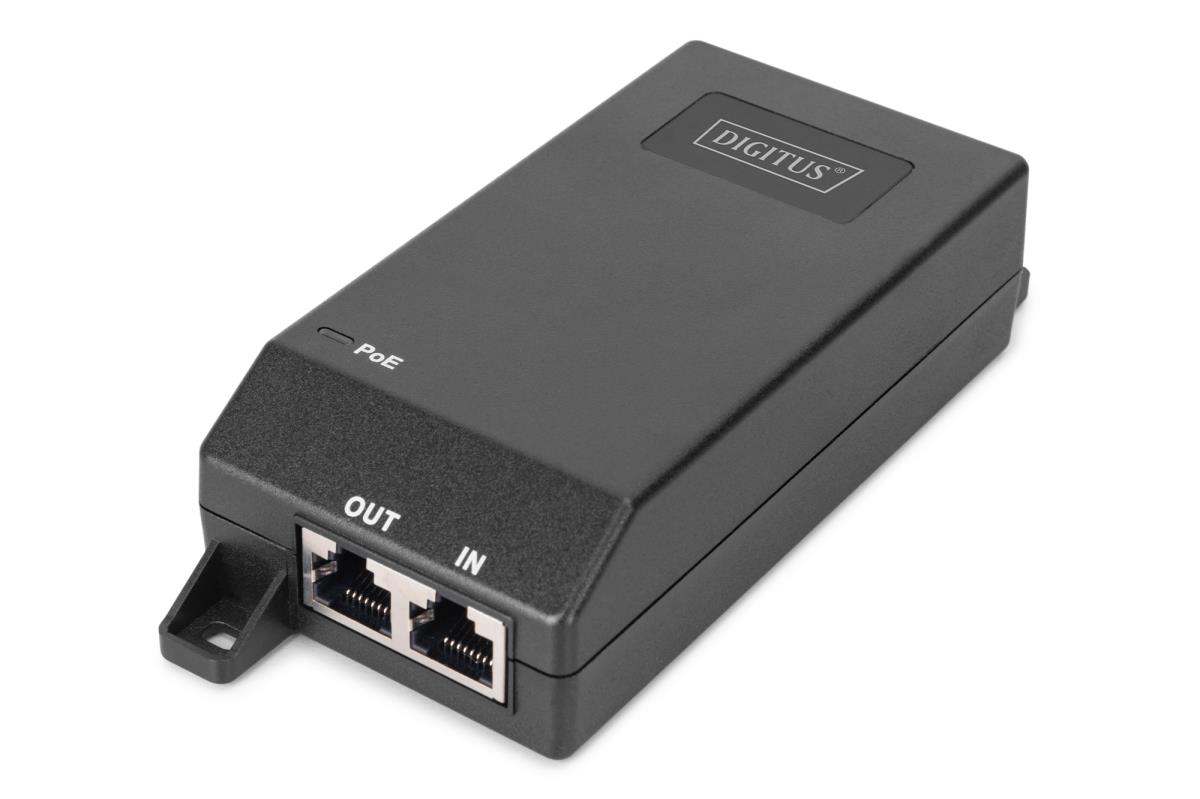

Gigabit Ethernet PoE+ Injector - 802.3at Power Pins:4/5(+) 7/8(-) 30W
ITCurry #: M9239775 | Article #: DN-95103-3-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
With the PoE Injector, you benefit from a powerful and reliable network extension - wherever power sources are lacking.
- Compatibility: Supports IEEE802.3af/at standards, ideal for all compatible PoE devices
- High performance: Delivers up to 30W of power and supports gigabit data transmission
- Simple installation: plug-and-play operation without configuration effort
- Range: power and data transmission up to 100 m possible
- Intelligent protection mechanisms: short-circuit protection and overload protection ensure a safe power supply
- Robust design: Durable plastic housing that combines elegance with functionality
- Energy efficiency: Automatic detection of connected devices for optimum power supply
The PoE injector is the ideal solution for expanding your network in locations without a power connection. Fully compatible with the IEEE 802.3af/at standards, it is perfect for power supply and data transmission for PoE-capable devices such as access points (AP), IP cameras, IP telephones or PoE receivers. Thanks to its powerful features, the PoE injector ensures a stable and reliable connection without the need for additional configurations. An elegant design and robust protection mechanisms make it the first choice for demanding applications.
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Networking standards | IEEE 802.3at |
| Cable types supported | Cat3, Cat5, Cat5e, Cat6 |
| Features | |
| Product colour | Black |
| Maximum operating distance | 800 m |
| LED indicators | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 0.6 A |
| Total Power over Ethernet (PoE) budget | 30 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Weight & dimensions | |
| Width | 142 mm |
| Depth | 60 mm |
| Height | 32 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Quick installation guide | Yes |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 192 mm |
| Package height | 60 mm |
| Package weight | 490 g |
| Package type | Box |
| Logistics data | |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
