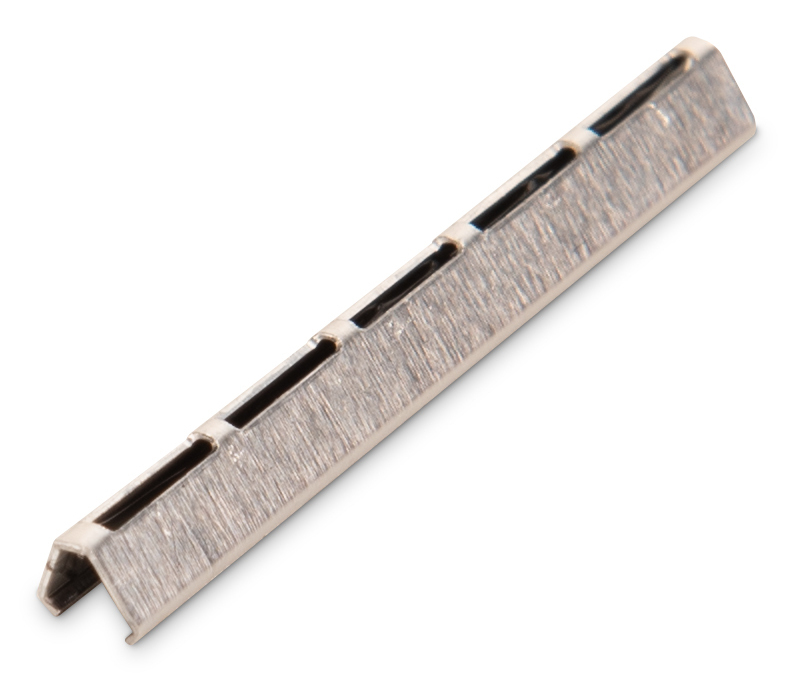

Fiber Optic Crimp Splice Protection 150 pcs
ITCurry #: M9239792 | Article #: DN-CSP-150-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Efficient splice protection for optical fibers using crimp technology. Compatible with standard splice cassettes; ideal for compact installations.
- Reliable mechanical protection
- Compact design for use in splice cassettes
- Ideal for quick and safe on-site installation
- Excellent thermal properties
- Solution for a permanently stable and well-organized installation
The fiber optic crimp splice protector provides a secure way to reliably protect optical fibers after splicing. The protection is secured purely mechanically through a precise crimping process. Thanks to its compact design, the crimp splice protection is perfectly suited for splice trays and distribution frames with limited space. The fiber’s 900 µm secondary coating is securely fixed, providing permanent protection for the sensitive splice point against tension, vibrations, and micro-movements. Its ease of use makes the crimp splice protector the ideal solution for field installations, such as in building cabling, FTTH installations, or data centers. They are used to protect fiber splices in 19"-distribution panels, floor-standing and wall-mounted enclosures, as well as in fiber-optic splice sleeves. Thanks to their excellent climatic and thermal properties, they are suitable for use in both enclosed and open environments. The protection thus ensures long-term resistance to crushing, tension, and puncture.
| Features | |
| Product colour | Silver |
| Weight & dimensions | |
| Length | 30 mm |
| Width | 1.2 mm |
| Height | 3.3 mm |
| Packaging content | |
| Quantity per pack | 150 pc(s) |
| Packaging data | |
| Package width | 50 mm |
| Package depth | 105 mm |
| Package height | 40 mm |
| Package weight | 60 g |
| Logistics data | |
| UK Trade Tariff code | 85447000 |
| Warranty | |
| Base Warranty | Non Non |
