Product Information

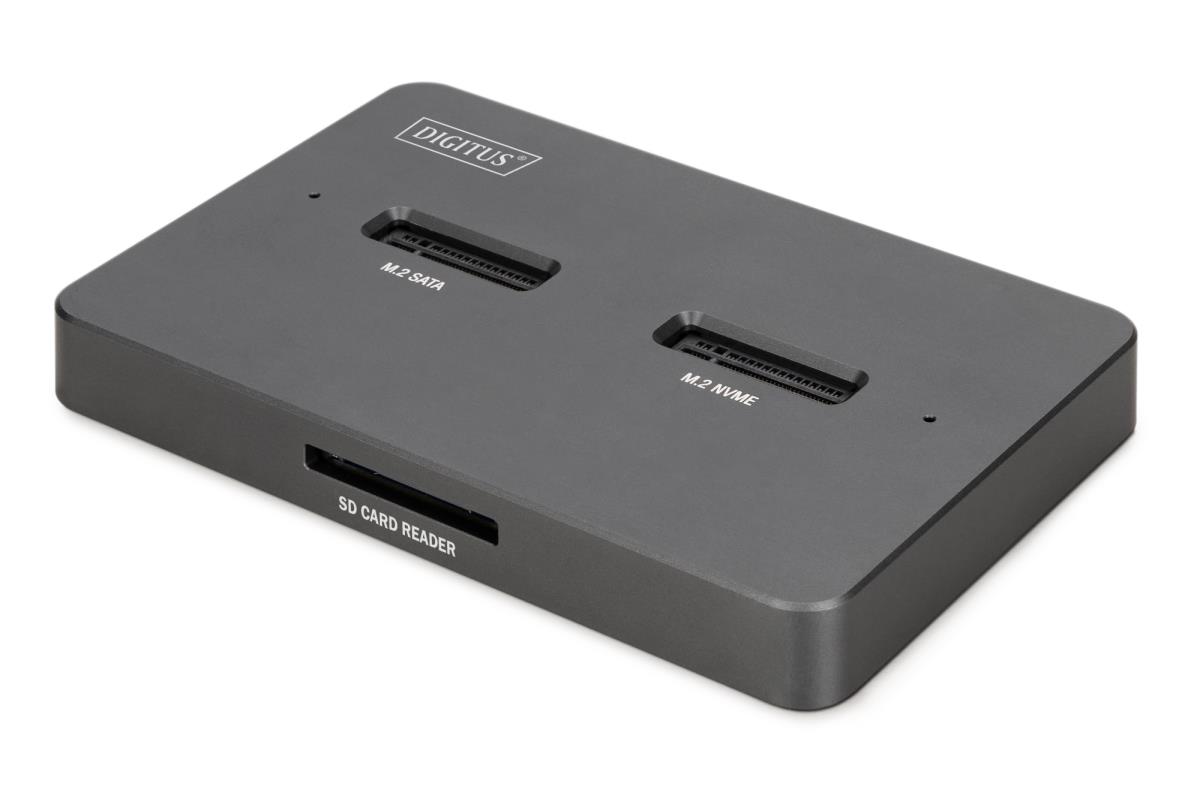

Manage M.2 NVMe and M.2 SATA SSDs via a USB-C™ connection - incl. integrated SD Express card reader
- 1 x M.2 bay for NVMe SSDs (B+M-Key / M-Key)
- 1 x M.2 bay for SATA SSDs (B+M key)
- 1 x SD-Express 7.1 memory card reader / 1000 MB/s max.
- High data transfer rate of up to 10 Gbps (U.A.S.P + T.R.I.M support)
- Supports NVMe & SATA SSDs up to 4 TB capacity
- Supported formats: 2242, 2260, 2280 & 22110
- Can be used as a storage medium for up to 10 TB in total
- USB-C™ connection: USB 3.2 Gen2
- Ideal memory expansion for notebooks, PCs, games consoles, TVs, NAS or routers (USB-C™)
- Plug and play, no drivers required
The 3-in-1 docking station from DIGITUS® can accommodate M.2 SSDs in NVMe or SATA technology, and there is also an SD Express 7.1 card reader with the highest data transfer rates on board. Manage M.2 data carriers with up to 4 TB per slot and additional SD cards up to 2 TB. NVMe SSDs with B+M key & M key as well as SATA SSDs with B+M key, each in the formats 2242, 2260, 2280 & 22110 are supported. Easily expand the storage capacity of numerous USB-C™ devices such as PCs, notebooks, TVs, game consoles or routers.
| Hard drive | |
| Storage media type | SSD |
| Storage drive interface | M.2 |
| Storage drive sizes supported | M.2 |
| Maximum storage capacity | 4 TB |
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Maximum data transfer rate | 10 Gbit/s |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Hot-swap | Yes |
| TRIM support | Yes |
| LED indicators | Yes |
| I/O ports | USB-C 3.2 Gen2 |
| UASP support | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Width | 102 mm |
| Depth | 66 mm |
| Height | 15 mm |
| Weight | 120 g |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 106 mm |
| Package height | 70 mm |
| Package weight | 350 g |
| Package type | Box |
| Packaging content | |
| AC adapter included | Yes |
| Warranty | |
| Base Warranty | Non Non |
