1U Aluminum PDU rackmountable 8x C13 2xC19 16A 230VAC 50/60Hz IEC C20 plug
ITCurry #: M9238900 | Article #: DN-95427-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Safe and professional power supply in the 19" range
- Perfect power distribution for your network and IT rack

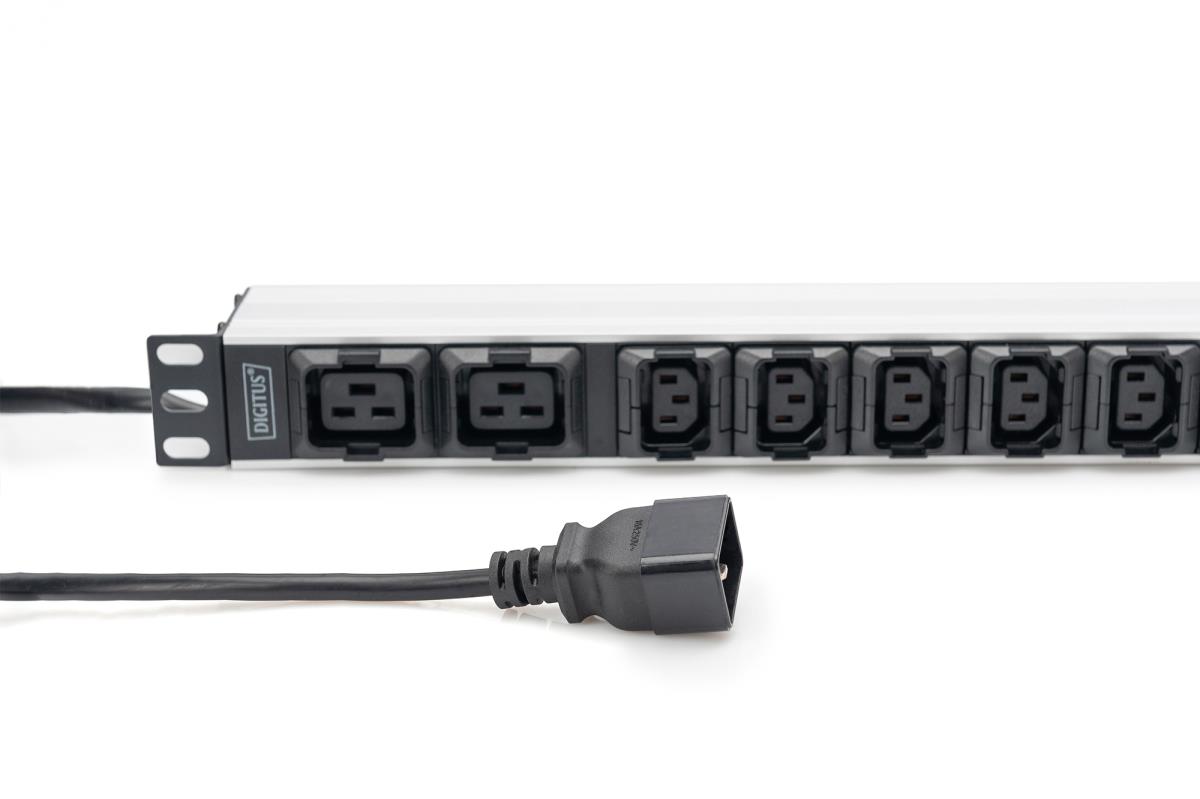

- Optimum power distribution for connection to a UPS (IEC-60320 C20 input connector)
- The sockets offer optimum space management and easy access

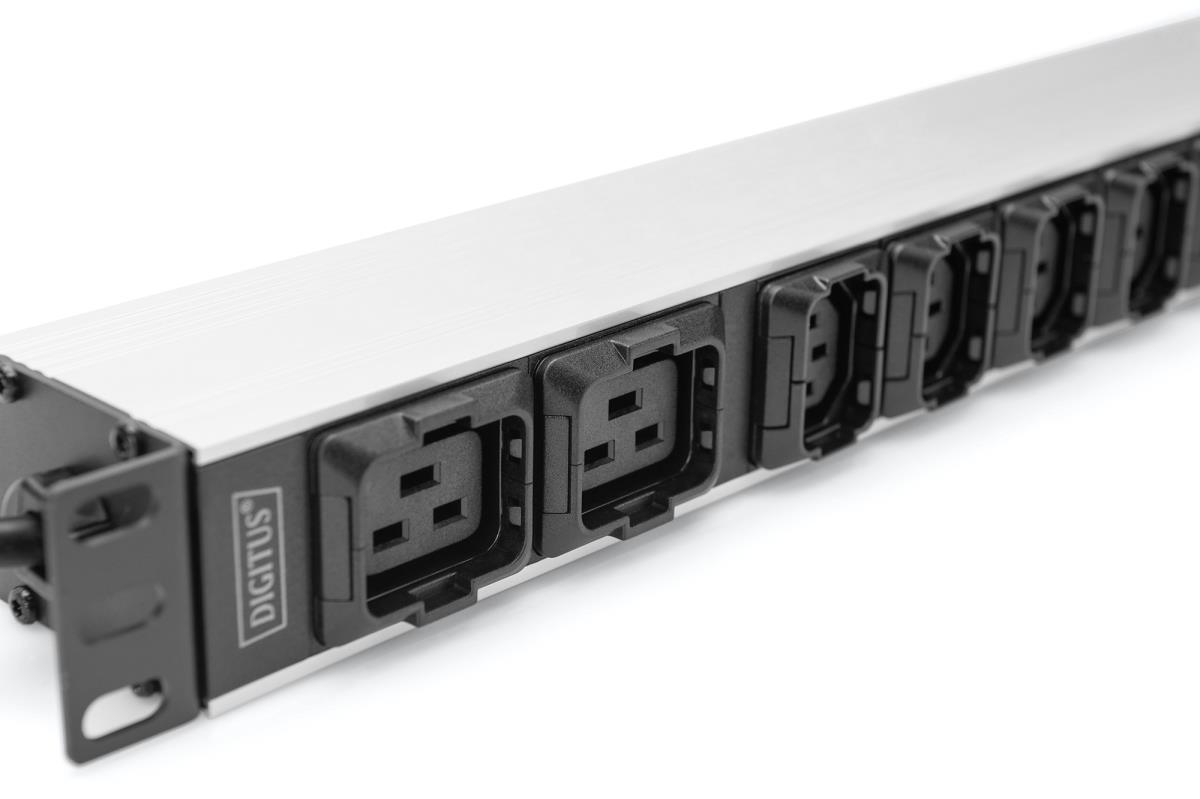

- Integrated pull-out protection on each output, protects C13 and C19 standard cables from unintentional unplugging
The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology and laboratories. With its IEC60320 C13 and C19 input plugs, the PDU is ideal for use as an additional 19" distribution board for a UPS. The individual C13 and C19 outlets are equipped with pull-out protection.
| Design | |
| Type | Single-phase |
| Rack capacity | 1U |
| Housing material | Aluminium, Plastic |
| Ports & interfaces | |
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Master AC outlets quantity | 8 |
| Slave AC outlets quantity | 2 |
| Features | |
| Cable length | 2 m |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Output voltage | 250 V |
| Load capacity | 3600 VA |
| Number of phases | 1 |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 60 mm |
| Height | 482.6 mm |
| Weight | 850 g |
| Size (imperial) | 48.3 cm (19") |
| Packaging content | |
| Manual | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
