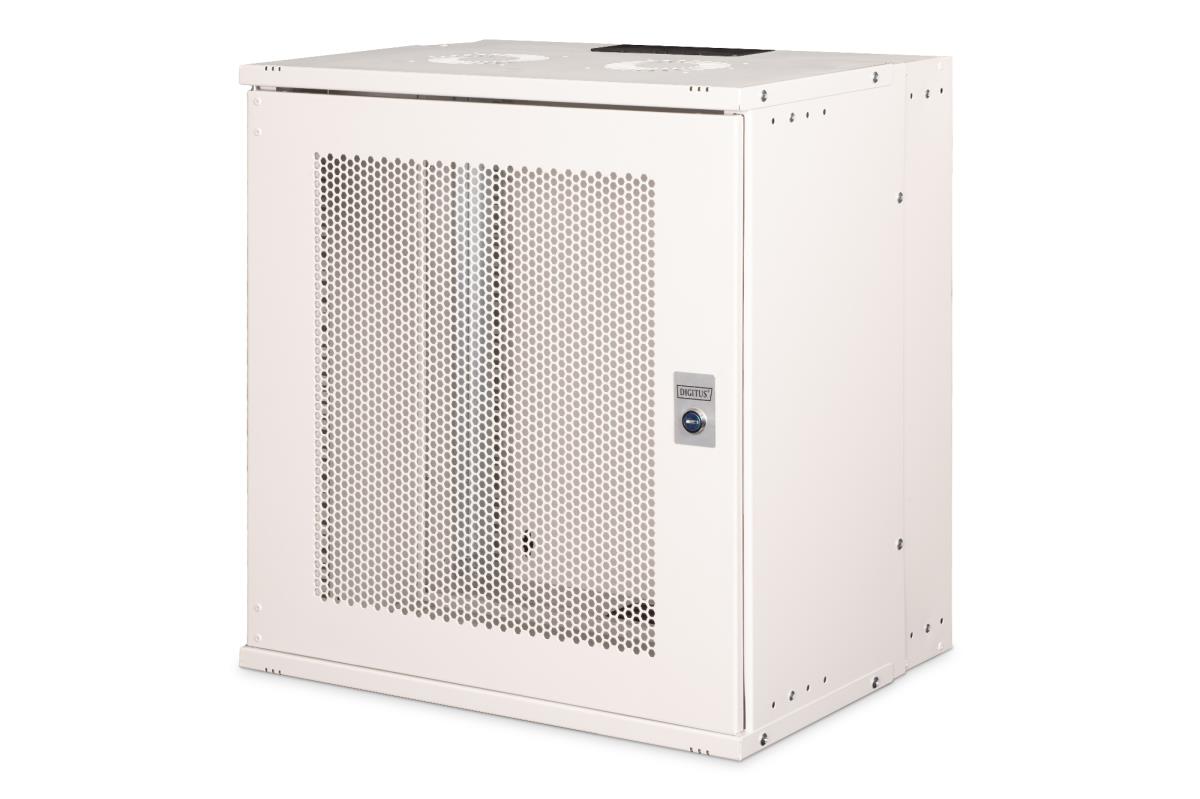

19" 12U wall mounting cabinet SOHO Pro perforated door 595 x 540 x 400mm unmounted gr
ITCurry #: M9239764 | Article #: DN-49210-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DIGITUS® wall-mounted enclosure SOHO Pro series is characterized by efficient delivery in an optimized flat pack and particularly user-friendly installation.
- Compact housing for 483 mm (19") installations
- Simplified logistics: delivered unassembled in an optimized flat pack
- Quickly ready for use: Particularly user-friendly, quick installation with just a few screws
- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable steel front door with perforation, 200° door opening angle
- Depth-adjustable 483 mm (19") profile rails
- Load capacity for the installation of components: 60 kg
Whether in the home, office or for sub-distribution boards with limited space: With the compact 483 mm (19") solutions from the SOHO Pro series, you can install your network wherever you want. The variant with a front door made of perforated sheet steel is available in three height units (7U, 9U, 12U). All cabinets are equipped with a cable entry in the top and bottom. Two pairs of galvanized 483 mm (19") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). The door hinges can be changed. The network enclosures are supplied unassembled in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the enclosed step-by-step instructions.
| Features | |
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Product colour | Light grey |
| Material | Steel |
| Back door construction | Steel |
| Front door construction | Perforated |
| Side panel construction | Steel |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Cable management | Yes |
| Door opening angle | 200ø |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 540 mm |
| Depth | 400 mm |
| Height | 595 mm |
| Mounting depth (max) | 32.7 cm |
| Packaging data | |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Package width | 580 mm |
| Package depth | 600 mm |
| Package height | 150 mm |
| Package volume | 52000 cmü |
| Package weight | 13.7 kg |
| Warranty | |
| Base Warranty | Non Non |
