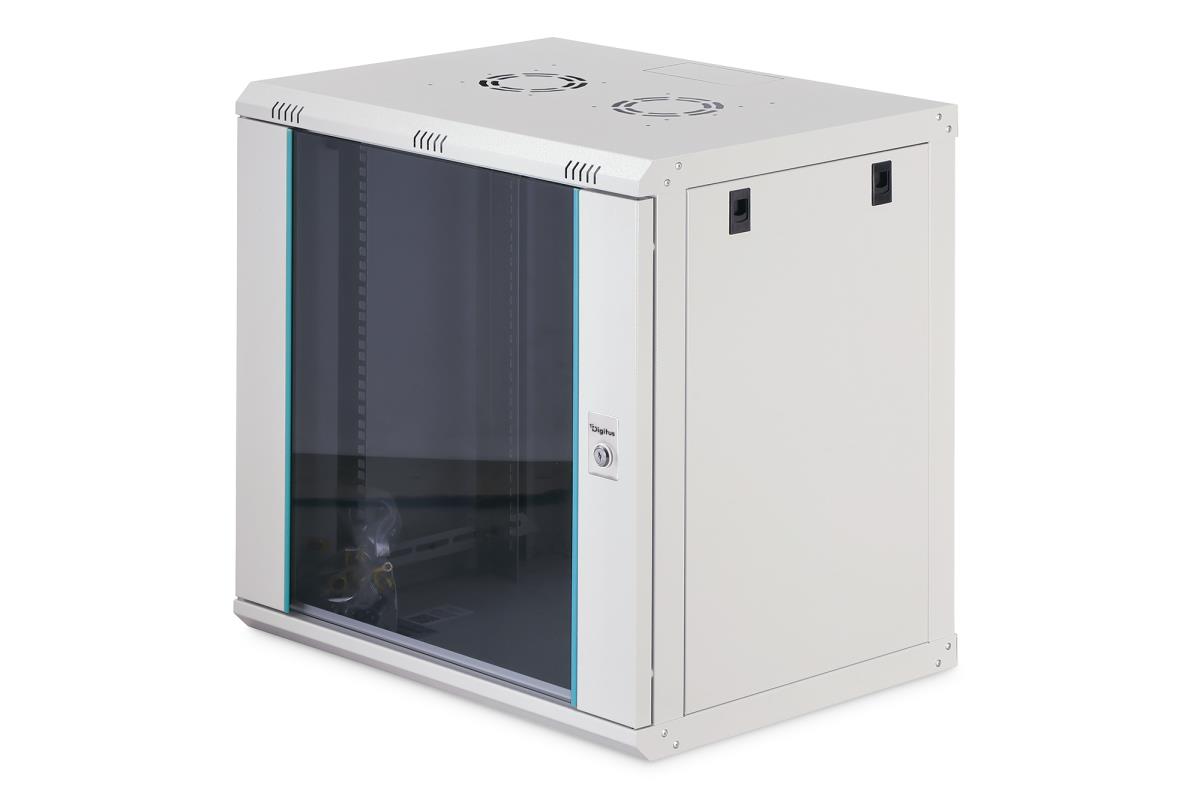

12U wall mounting cabinet - Dynamic-N 600 x 450 mm, unmounted, grey
ITCurry #: M9239919 | Article #: DN-37108-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The unassembled delivery of the wall-mounted enclosures ensures optimized transport options. Assembly can be carried out quickly and easily.
- Optimum ventilation and air extraction
- Lockable safety glass door with steel frame
- 483 mm (19") profile rails at the front and rear inside the enclosure, galvanized
- Supplied unassembled
- Easy wall mounting thanks to enclosed mounting plate
The Dynamic-N series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing. For simplified logistics, the Dynamic-N series is supplied unassembled in a space-saving flat pack. The wall-mounted housing can be installed quickly and easily using the enclosed installation instructions.
| Features | |
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Product colour | Light grey |
| Material | Steel, Glass |
| Frame type | Closed |
| Back door construction | Steel |
| Front door construction | Glass/Steel |
| Side panel construction | Steel |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Front door style | Glass door |
| Back door style | Blind |
| Side panel style | Blind |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rails | Yes |
| Cooling type | Active |
| Cable management | Yes |
| Locking points | 1 |
| Door opening angle | 230ø |
| Assembly required | Yes |
| Preassembled | No |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 450 mm |
| Height | 607 mm |
| Weight | 19.6 kg |
| Packaging data | |
| Mounting kit | Yes |
| Grounding kit | Yes |
| Manual | Yes |
| Package width | 650 mm |
| Package depth | 650 mm |
| Package height | 210 mm |
| Package weight | 22 kg |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Shipping (inner) case length | 65 cm |
| Shipping (inner) case width | 65 cm |
| Shipping (inner) case height | 21 cm |
| Master (outer) case width | 650 mm |
| Master (outer) case length | 650 mm |
| Master (outer) case height | 210 mm |
| Master (outer) case gross weight | 22 kg |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
