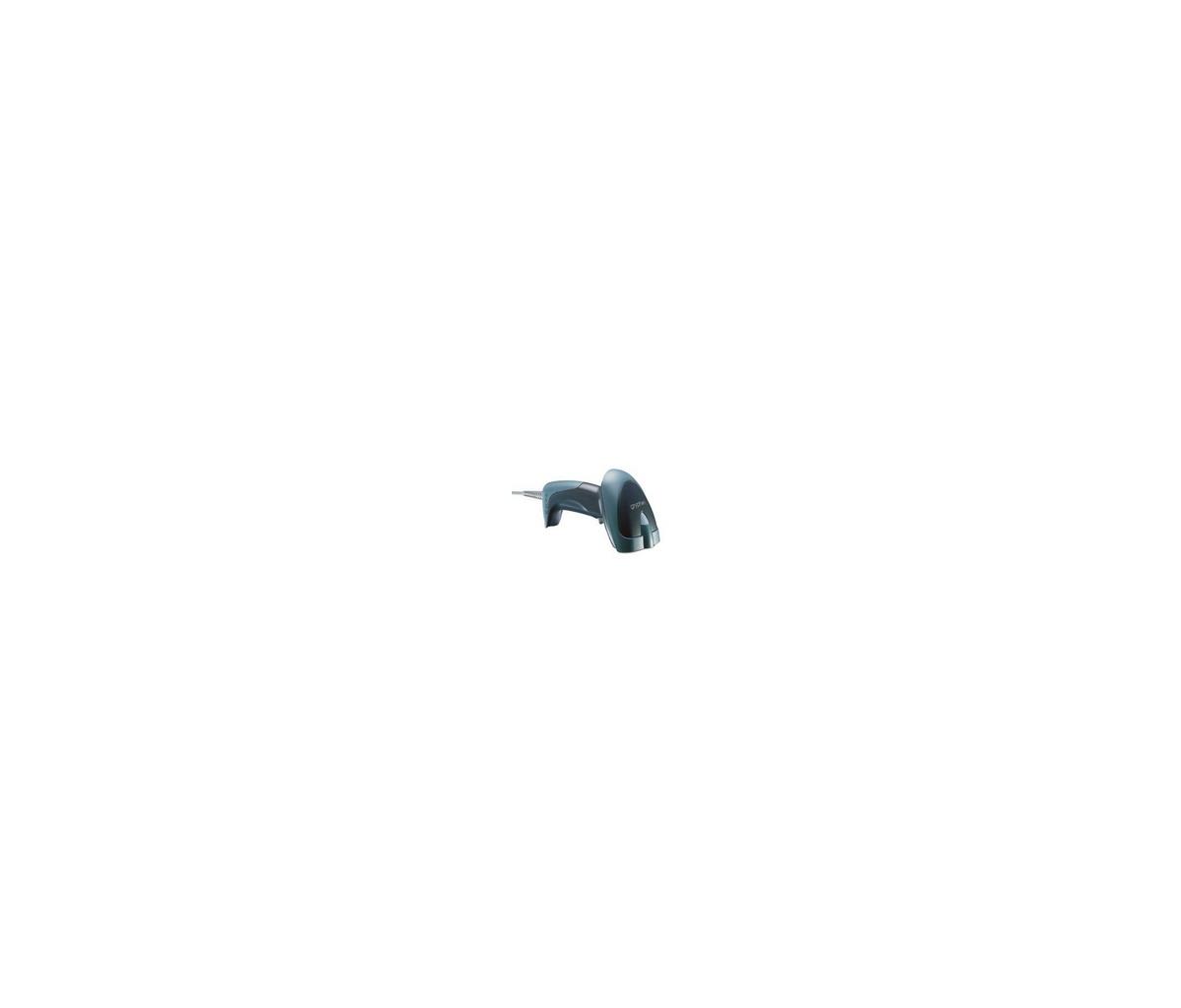

Handheld Scanner Gryphon D230 Std Rs232/ USB/ Wedge/ Wand Grey
ITCurry #: 78552091 | Article #: 901661087-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Gryphon Desk
General Purpose Corded Handheld Linear Imager Bar Code Reader
With rich feature sets and extensive model options, the Gryphon product series from Datalogic Scanning represents the premium level of data collection equipment for general purpose applications. The Gryphon series of corded linear imagers offer outstanding reading performance in an ergonomic form factor. Extremely versatile and durable these readers are the ultimate solution for applications in retail and light industrial environments where low resolution and/or damaged codes need to be read with consistent and reliable performance.
The Gryphon Desk products are available in several model options. The Gryphon D1X0 set offers standard support for 1D codes including GS1 DataBar and offers two multi-interface options: D110 for RS-232/IBM 46XX and the D130 for USB/RS-232/Wedge/Wand Emulation. The Gryphon D130 is also available with long range optics (D130 LR) for extended reading distances up to 43.0 cm / 16.9 in (13 mil EAN and 100% UPC codes). The Gryphon D230 standard range model adds additional symbology support for stacked codes including PDF417 and GS1 DataBar/EAN/UPC composite codes.
Featuring Datalogic’s exclusive patented ‘Green Spot’ for good read feedback directly on the code; it helps to improve productivity especially in noisy environments. When the readers are used in Stand Mode, the Green Spot remains on to aid in positioning the code for quick and intuitive reading.
Datalogic’s patented PuzzleSolver™ decoding algorithm guarantees outstanding performance on poorly printed or damaged codes and advanced data editing and data formatting modes are available to format the collected data as required by the application software. The Datalogic Aladdin™ configuration program provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Main Features:
- Fast reading performance up to 270 scans/second.
- Long Range optics available for extended reading distances up to 43.0 cm / 16.9 in.
- Datalogic’s patented ‘Green Spot’ for good-read feedback.
- Supports GS1 DataBar™ linear codes with additional support for stacked codes like PDF417, MicroPDF and GS1 DataBar plus UPC/EAN composites on select models.
- Water and Particulate Sealing Rating: IP30.
- Drop resistance to 1.8 m / 5.9 ft.
| Scanning | |
| Sensor type | CCD |
| Wavelength | 630 nm |
| Decoding standards | 1D, GS1 Databar Code 16K, Code 49, EAN/JAN Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional, PDF417, UPC A/E Composites |
| Scan speed | 270 sec/page |
| Tilt angle range | -35 - 35ø |
| Ports & interfaces | |
| Standard interfaces | Keyboard wedge, USB, RS-232, RS-485 |
| Performance | |
| Product colour | Grey |
| Power | |
| Input voltage | 5 V |
| Power consumption | 210 mA |
| Weight & dimensions | |
| Weight | 210 g |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Other features | |
| Dimensions (WxDxH) | 179 x 81 x 98 mm |
| Light source | LED Array |
| Maximum operating distance | 0.43 m |
