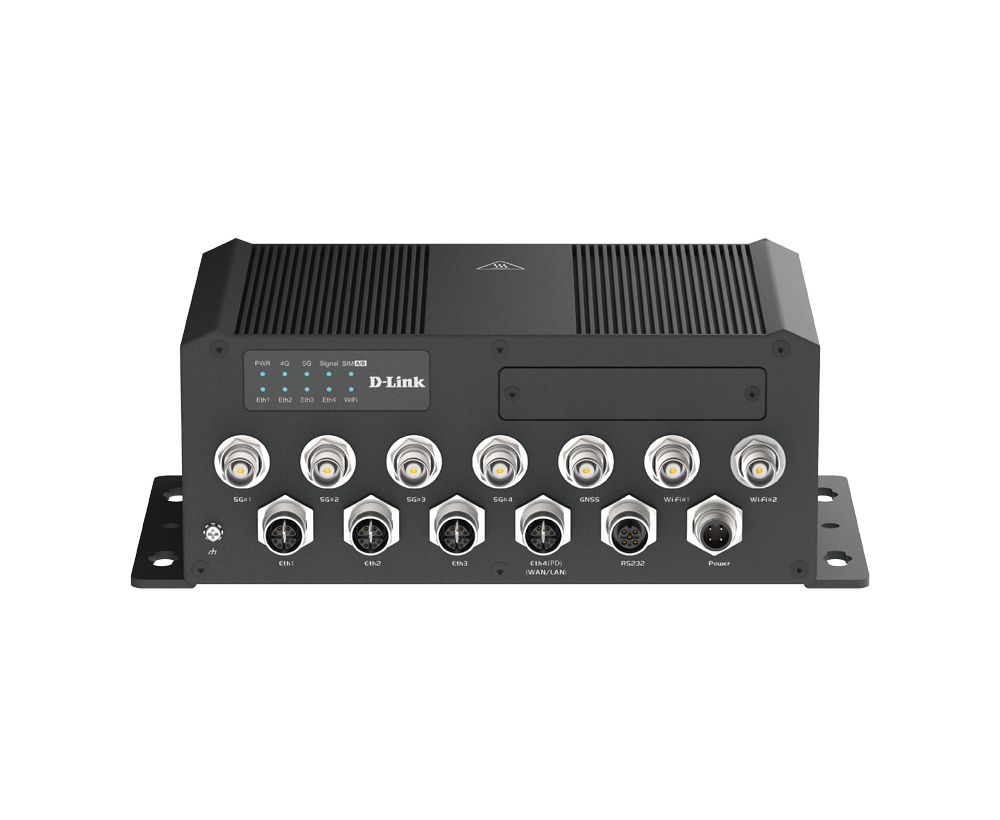

Dtm-570-gs 5g Transit Gateway
ITCurry #: 12135332 | Article #: DTM-570-GS-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
5G SA & NSA?
Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.
Wi-Fi 6 AX1800
Enable high-speed in-vehicle Wi-Fi for seamless passenger and Wi-Fi equipments access and streamlined operations.?
Rugged M12 Connectors
Industrial-rated locking threads ensure on-board connections are protected from harsh elements.
Rail Related Certified
Compliant with EN45545, EN50155, and EN50121-3-2 to ensure reliability and safety in rail transportation.?
GPS Location
Real-time tracking enables routing services to minimize travel time and optimize fleet efficiency.
Wide Voltage Input Range
Safely accepts power input from various on-board power sources for convenient installation.?
?Enhanced Onboard Telematics and Infotainment
The DTM-570-GS 5G Transit Gateway empowers rail transport with advanced connectivity, linking onboard RS232 and Ethernet devices to the Internet via a robust 5G network. This setup not only facilitates real-time monitoring for passenger safety through surveillance systems but also ensures seamless operation of railway onboard systems. Additionally, it delivers precise station arrival notifications on the digital signage, enhancing the rail passenger experience.?
Optimize Railway Operations with Location-Based Services?
The DTM-570-GS enhances railway operations with precise GPS location positioning, enabling effective real-time asset utilization. This gateway supports operators by offering detailed insights into the location and mileage of trains, facilitating optimal routing services that assure punctuality and enhance efficiency through timely service.?
Robust Design for Rail Application
The DTM-570-GS 5G Transit Gateway is engineered to withstand the rigors of rolling stock environments, meeting mandatory requirements of EN45545, EN50155, and EN50121-3-2 rail-related standards. Its robust design includes industrial-rated M12 connectors, a corrosion-resistant zinc-plated steel casing, and wide voltage input range. This ensures reliable and stable M2M connectivity, even under extreme conditions of movement, temperature, and humidity, making it ideal for demanding rail applications where reliable performance is critical.
| Design | |
| Device type | Cellular network gateway |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Ethernet LAN features | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| DHCP server | Yes |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 574,1201 Mbit/s |
| Mobile network | |
| Data network | 4G, 5G, LTE |
| 4G standard | LTE |
| 5G standard | Sub6 NSA, Sub6 SA |
| Number of SIM cards | 2 |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Security | |
| Security algorithms | AES, WPA2, WPA2-PSK, WPA3-Enterprise, WPA, WPA3-SAE, WPA-PSK |
| Network address translation (NAT) | Yes |
| Firewall | Yes |
| DMZ support | Yes |
| Port forwarding | Yes |
| Performance | |
| Antenna type | External |
| Antennas quantity | 7 |
| Power | |
| Power source type | DC |
| Input voltage | 18 - 75 V |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 207.4 mm |
| Depth | 135 mm |
| Height | 86 mm |
| Warranty | |
| Base Warranty | Non Non |
