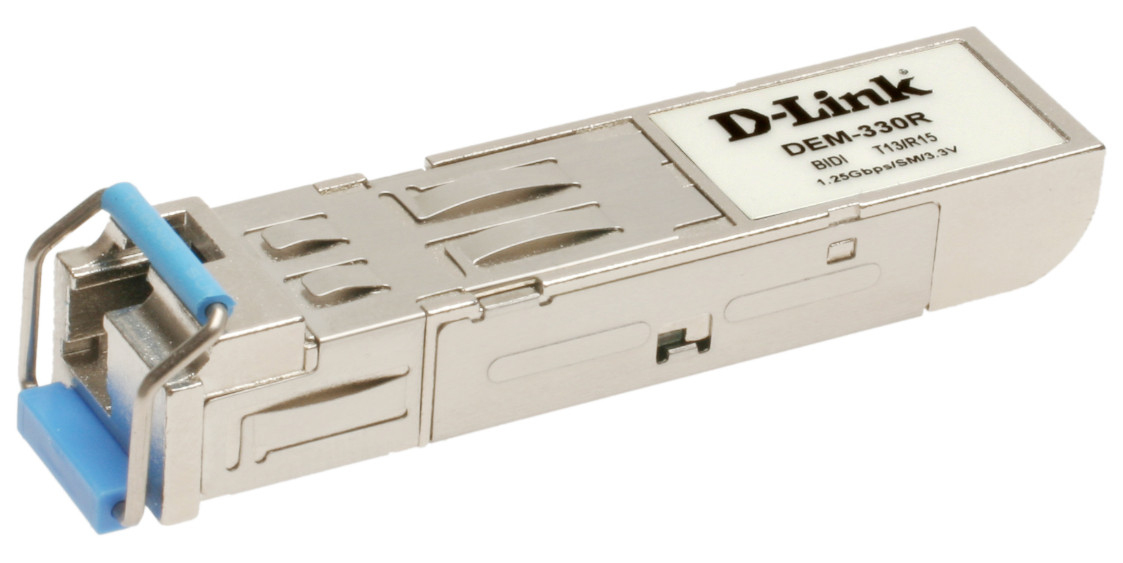

Dem-330r 1-port Mini-GBic Sfp To 1000baselx
ITCurry #: 12133755 | Article #: DEM-330R-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DEM-330T/330R and DEM-331T/331R Bidirectional Gigabit SFP Fiber Transceivers are external transceivers designed for insertion in SFP (Small Form-Factor Pluggable) slots of network devices for transmission and reception of data signals on the fiber cables. These transceivers provide the Gigabit operation and physical compactness to deliver the speed, reliable long-distance data transfer, and deployment flexibility that today’s fiber networks require.
Ideal for Long Distance Application
The DEM-330T/330R and DEM-331T/331R transceivers can be used to connect together switches, servers and fiber modules on a campus or metropolitan area network (MAN). Providing up to 10 km (DEM-330T/330R) or 40 km (DEM-331T/331R) of fiber cable distance, these highly integrated transceivers offer low jitter performance for extended optical link support without any degradation in performance.
Reliable Transmission
The DEM-330T/330R and DEM-331T/331R transceivers combine transmitting and receiving signals onto one fiber strand using two wavelengths. These transceivers are used in pair. At one end, one transceiver uses one wavelength to transmit and a second wavelength to receive. At the other end, the other transceiver flips that relationship.
Standard Compliance
The DEM-330T/330R and DEM-331T/331R transceivers use standard simplex LC connectors for fiber cable
connection. They conform to industry standards and are interoperable with D-Link Gigabit switches. Hotswap capability allows network administrators to plug or unplug them from the SFP slots without having to turn off the power of the connected device.
Durable
The DEM-330T/330R and DEM-331T/331R transceivers are packed in a Small Form Pluggable (SFP) metal
housing to increase durability.
| Network | |
| Maximum data transfer rate | 1250 Mbit/s |
| Cabling technology | 1000BASE-BX-U |
| Performance | |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Sensitivity | -21 dBmW |
| Mean time between failures (MTBF) | 445890 h |
| Features | |
| Hot-swap | Yes |
| Compliance industry standards | IEEE802.3z |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Weight & dimensions | |
| Weight | 19.8 g |
| Certificates | |
| Safety | TUV, UL, FDA |
| Certification | FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B RoHS |
| Other features | |
| Transmit power range | -3 - -9 dBmW |
| Dimensions (WxDxH) | 13.4 x 55.5 x 11.28 mm |
| Interface | Gigabit Ethernet |
| Connector(s) | Simplex LC |
| Power requirements | 3.3 V, 250 mA |
| Power budget | 12 dB |
| Cable type | fiber |
| Fiber type | 9/125 æm |
