Thunderbolttm 4 Certified 16-in-1 Quadra Displays Docking Station With Displaylink
ITCurry #: M4192960 | Article #: CSV-1583-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

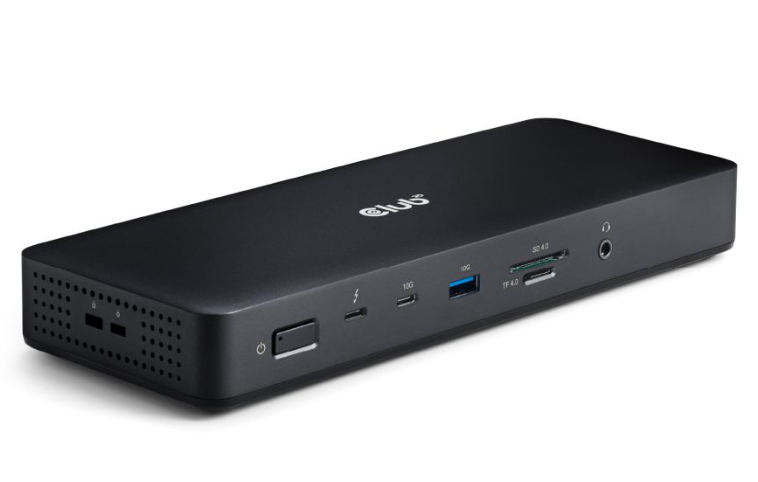

The Club 3D CSV- 1583 is a Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station with DisplayLink® which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output max 3 videos when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series NoteBooks and Windows NoteBooks. RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4™/USB4™ based PCs and compatible with /DP-Alt-mode PCs.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 3 |
| Thunderbolt 4 ports quantity | 4 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 40 Gbit/s |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Power | |
| Power cable length | 1 m |
| Thunderbolt 4 cable length | 0.8 m |
| Software | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Yes |
| Weight & dimensions | |

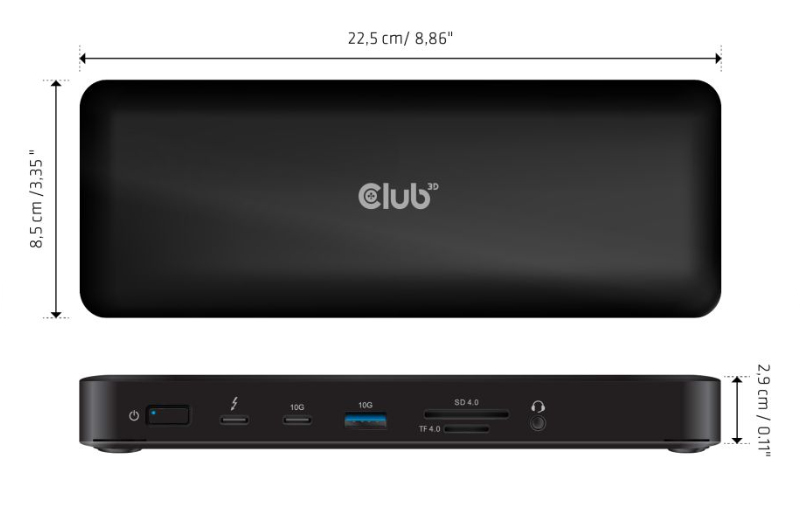

| Width | 85 mm |
| Depth | 225 mm |
| Height | 22 mm |
| Weight | 594 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 125 mm |
| Package depth | 275 mm |
| Package height | 87 mm |
| Package weight | 796 g |
| Packaging content | |
| Cables included | Power |
| Warranty | |
| Base Warranty | Non Non |
