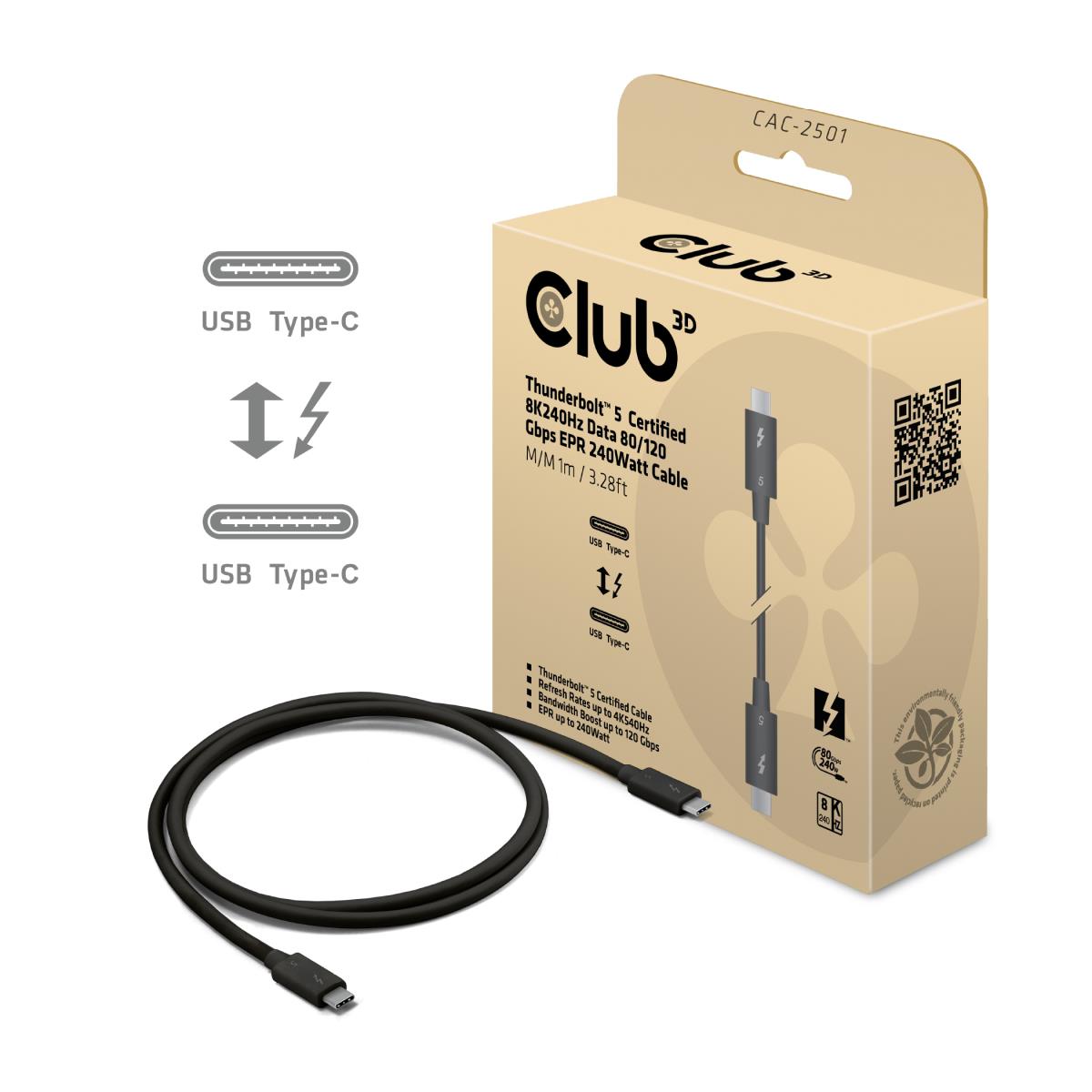

Thunderbolt 5 8k 240hz Data 80/120 Gbps Epr 240 Watt Cable M/m 1m
ITCurry #: M4192968 | Article #: CAC-2501-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
• HIGH PERFORMANCE: 1m / 3.28ft Thunderbolt™ 5 cable supports 80 Gbps, 8K video, and 240W EPR power; USB Type-C® to Type-C® connectors offer universal compatibility with Thunderbolt™ 3 & 4, USB80Gbps, and other USB Type-C® devices
• THUNDERBOLT CERTIFIED: Intel Thunderbolt™ certified for guaranteed compatibility with Thunderbolt™ hosts and devices; DisplayPort™ 2.1 with DSC supports up to 4K540Hz or dual 8K240Hz; Compliant with PCI Express 64 Gbps for external PCIe devices
• QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain reliefs for durability; Twisted Pair wire with braided alloy shield for enhanced EMI protection; Durable TPE outer jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant
• APPLICATIONS: Versatile connectivity with Thunderbolt™ 5 and USB Type-C® laptops, iPad Pro (5th gen and newer), docking stations, 4K/8K monitors, external PCIe chassis and storage drives; Low-latency performance with Thunderbolt™ 5 networking 64Gbps and audio devices
• SPECS: 1m / 3.28ft; Black; Thunderbolt™ 5 (80/120Gbps); USB 80Gbps and lower versions; DisplayPort™ 2.1 w/ DSC; 8K240Hz or Dual 4K144Hz; PCIe 64Gbps ; 240W PD; Twisted Pair Cable Outer Diam.: 4.8mm / 0.19inch
| Features | |
| Connector 1 | Male |
| Connector 2 | Male |
| Cable length | 1 m |
| Data transfer rate (max) | 120 Gbit/s |
| Product colour | Black |
| Connector contacts plating | Nickel |
| Cable shape | Round |
| Thunderbolt version | 5 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 240 W |
| Weight & dimensions | |
| Weight | 45 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 100 mm |
| Package depth | 100 mm |
| Package height | 35 mm |
| Package weight | 69 g |
| Packaging composition | |
| Plastic packaging weight | 2 g |
| Paper/cardboard packaging weight | 22 g |
| Total plastic packaging weight | 10 g |
| Total paper/cardboard packaging weight | 110 g |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
| Warranty | |
| Base Warranty | Non Non |
