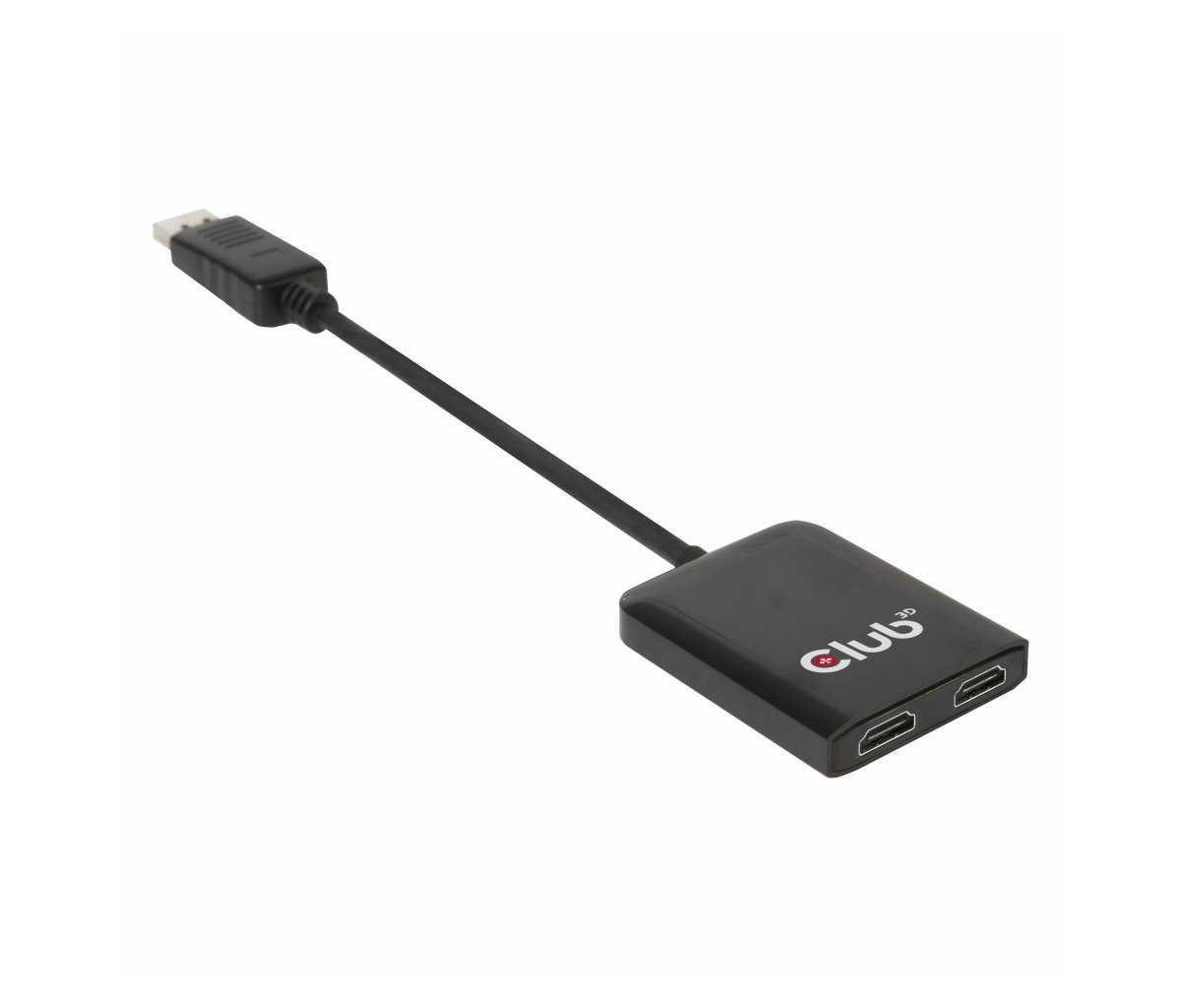

Multi Stream Transport Hub DisplayPort 1.2. To Hdmi Dual Monitor
ITCurry #: M4192770 | Article #: CSV-6200H-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
CSV-6200H - The Club3D SenseVision MST Hubs utilise Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected HDMI™ screens.
The Club3D MST Hubs do not increase the bandwidth of the DisplayPort™ 1.2 output of the source system, but it enables the optimal use of it.
The CSV-6200H is Plug & Play and does not require any driver installation.
Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.
| Ports & interfaces | |
| Video port type | HDMI |
| Video in | DisplayPort 1.2 |
| Video out | 2x HDMI |
| HDMI version | 1.4 |
| Video ports quantity | 2 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| Cable length | 0.2 m |
| HD-Ready | Yes |
| HDCP | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Certification | EMI CA, FCC, ROHs, WEEE |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Power | |
| AC input voltage | 5 V |
| Input current | 2 A |
| USB powered | Yes |
| Weight & dimensions | |
| Dimensions (WxDxH) | 244 x 49 x 11 mm |
| Weight | 54 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package length | 24 cm |
| Package width | 160 mm |
| Package depth | 18 mm |
| Package weight | 9 g |
| Package type | Polybag |
| Plastic packaging weight | 11 g |
| Paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Cables included | Micro-USB |
| User guide | Yes |
| Packaging content | -Multi Stream Transport (MST) Hub DisplayPort 1.2 to HDMI Dual Monitor -USB to Micro USB Cable for power -Quick Installation Guide |
| Technical details | |
| Connection to system unit | DisplayPort 1.2 |
| Technical features | Resolution Support up to 2 x 3840 x 2160 at 30Hz or 2 x 2560 x1600 at 60Hz |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
| Products per master (outer) case | 5 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
