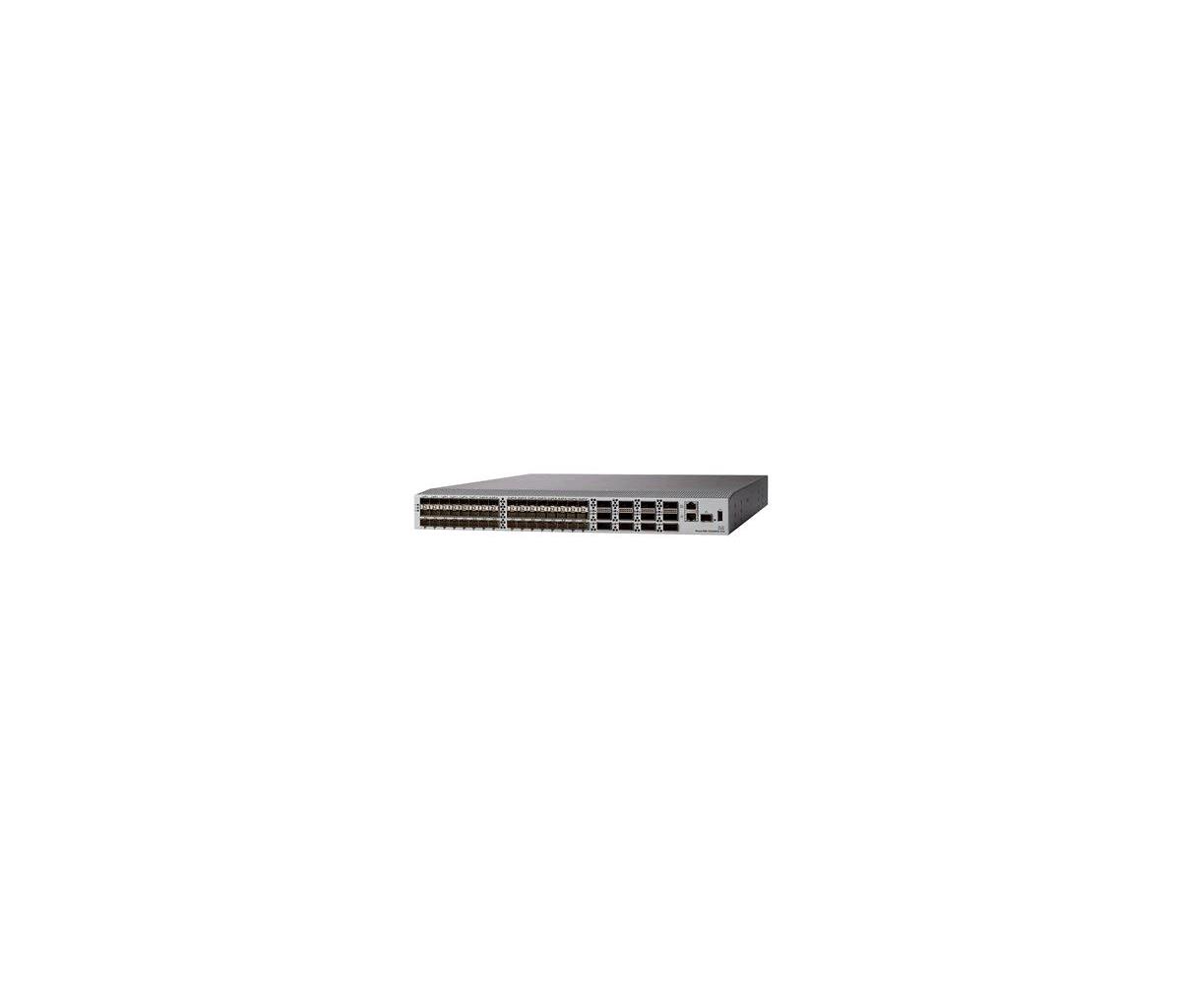

Nexus 9300 With 48p 10/25g Sfp+ And 12p 100g Qsfp28
ITCurry #: 0918Q012 | Article #: N9K-C93240YC-FX2-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Cisco Nexus 93240YC-FX2 Switch is a 1.2RU switch that supports 4.8 Tbps of bandwidth and over 2.5bpps. The 48 ports of downlinks support 1/10/25-Gbps. The 12 uplinks ports can be configured as 40- and 100-Gbps ports, offering flexible migration options. The switch is ideal for a non-oversubscribed solution in a compact form factor. The switch has FC-FEC and RS-FEC enabled for 25Gbps support over longer distances.
The Cisco Nexus® 9300-FX2 Series switches belongs to the fixed Cisco Nexus 9000 platform based on Cisco Cloud Scale technology. The platform support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platform is built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
Cisco Nexus 9300-FX2 series is an extension of Nexus 9300-FX series switches with higher bandwidth capacity. The switches offer a variety of interface options to transparently migrate existing data centers from 1-Gbps, and 10-Gbps speeds to 25- Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100- Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
Cisco provides two modes of operation for Cisco Nexus 9000 Series Switches. Organizations can use Cisco NX-OS Software to deploy the switches in standard Cisco Nexus switch environments (NX-OS mode). Organizations can also deploy the infrastructure that is ready to support the Cisco Application Centric Infrastructure (Cisco ACI™) platform to take full advantage of an automated, policy-based, systems-management approach (ACI mode).
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 48 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 12 |
| USB 2.0 ports quantity | 1 |
| Network | |
| 10G support | Yes |
| VLAN support | Yes |
| Number of VLANs | 3967 |
| Data transmission | |
| MAC address table | 256000 entries |
| Security | |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) ingress | 5000 |
| Access Control List (ACL) IPv4 entries | 2000 |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| Performance | |
| Internal memory | 24000 MB |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 298 W |
| Power consumption (max) | 708 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 4000 m |
| Weight & dimensions | |
| Width | 439 mm |
| Depth | 591 mm |
| Height | 53 mm |
| Weight | 10 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
