Ip Phone 6861 - Voip Phone - Ieee 802.11n (Wi-Fi) - Sip, Srtp - 4 Lines - Charcoal
ITCurry #: 0918AA86 | Article #: CP-6861-3PW-CE-K9=-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

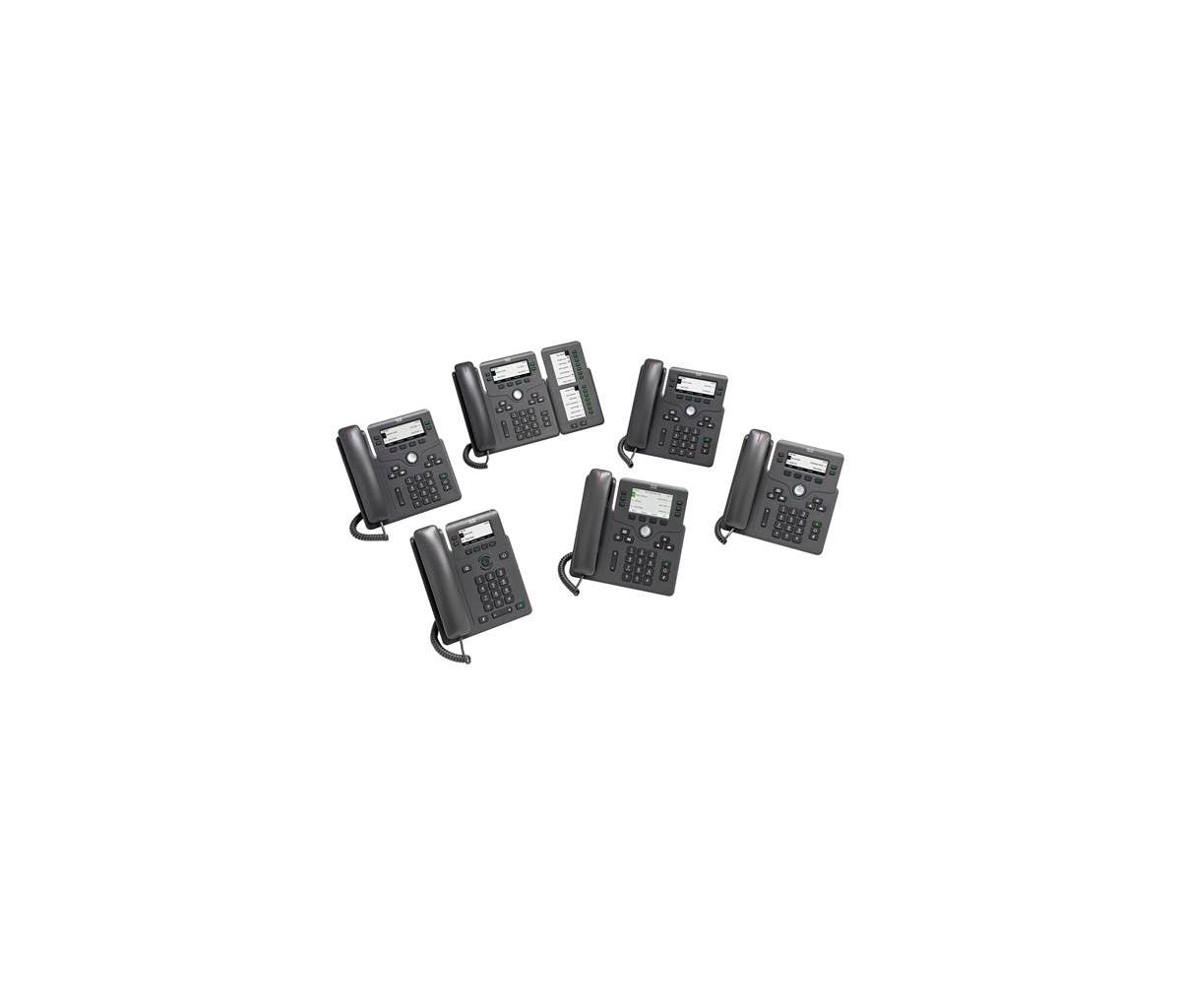

The Cisco® IP Phone 6800 Series with Multiplatform Phone (MPP) Firmware is a cost-effective, high-fidelity voice communications portfolio designed to improve your organization’s person-to-person communications while reducing your operating costs on approved Unified- Communications-as-a-Service (UCaaS) platforms.
The 6800 Series combines an attractive, new ergonomic design with “always-on” reliability and secure encrypted communications. The phones deliver advanced IP telephony features and wideband audio capabilities with an easy-to-use, full-featured voice communications experience.
The line buttons on each model are fully programmable. You can set up line buttons to support either SIP registrations, or call features, such as speed dialing. You can also boost productivity by handling multiple calls for each SIP registration, using the multiple-calls-per-line appearance feature. Tricolor LEDs on the line buttons support the calling features and make the phone simple to use.
Fixed function buttons on the 6800 series phones give you one-touch access to service, messaging, directory, hold/resume, transfer, and conference features. A full-duplex speakerphone lets you set up clear multiparty conferences for flexible, productive collaboration. The 6800 series provides exceptional noise isolation when used with a Cisco 500 Series Headset.
The Cisco IP Phone 6800 Series maintains the same usability standards and standards for a context-sensitive user experience as the Cisco IP Phone 7800 Series.
The 6861 has a 3.2-inch (320x120-pixel) LCD.
The 6800 Series is also energy-efficient and eco-friendly, to support green initiatives.
The 6841, 6851, 6861 and 6871 support a power-save option that reduces power consumption during off-hours, saving costs by increasing energy efficiency.
The 6861 phone is Wi-Fi enabled phone in 6800 series. It supports built-in dual band Wi-Fi up to 802.11n. Also provides reliable wireless connection and convenient connection to access point via WPS (Wi-Fi Protected Setup).
The 6800 Series is ideal for businesses that want to update their phone systems from traditional analog or digital-based systems to an IP communications system with supported multiplatform call control systems.
| Design | |
| Product type | IP Phone |
| Handset type | Wired handset |
| Product colour | Black |
| Backlight keypad | Yes |
| Mounting | Desk/Wall |
| Phone features | |
| Lines quantity | 4 lines |
| Call waiting | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
| Conference call | Yes |
| Caller ID | Yes |
| Anonymous call rejection | Yes |
| Call transfer | Yes |
| Message-waiting indicator (MWI) | Yes |
| Management features | |
| Volume control | Digital |
| Display | |
| Display | LCD |
| Display diagonal | 8.13 cm (3.2") |
| Backlight display | Yes |
| Camera | |
| Front camera | No |
| Audio | |
| Speakerphone | Yes |
| Microphone mute | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Supported network protocols | SIP, IPv4, IPV6, DNS, DHCP, SNTP, NUT, STUN, UDP, TCP, LLDP |
| DHCP client | Yes |
| Networking standards | IEEE 802.3 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 1 |
| DC-in jack | Yes |
| Certificates | |
| Safety | UL 60950, CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, AS/NZS 60950 |
| Compliance industry standards | TIA 810, TIA 920 |
| Certification | CE 2004/108/EC, 2014/30/EU EMC - Emissions 47CFR Part 15 (CFR 47) Class B, AS/NZS CISPR32:2015 Class B, CISPR 32: 2015_COR1:2016 Class B, EN55032: 2015+AC:2016, ICES003 Class B, EN61000-3-2:2014, IEC 61000-3-2:2014, EN61000-3-3:2013, IEC61000-3-3:2013 EMC - Immunity EN55024, CISPR24, Armadillo Light Telecom FCC Part 68 HAC, CS-03-HAC, AS/ACIF S004, AS/ACIF S040, NZ PTC 220 |
| Power | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 207 mm |
| Depth | 206 mm |
| Height | 33 mm |
| Weight | 670 g |
| Packaging content | |
| Number of handles included | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
| Warranty | |
| Base Warranty | Non Non |
