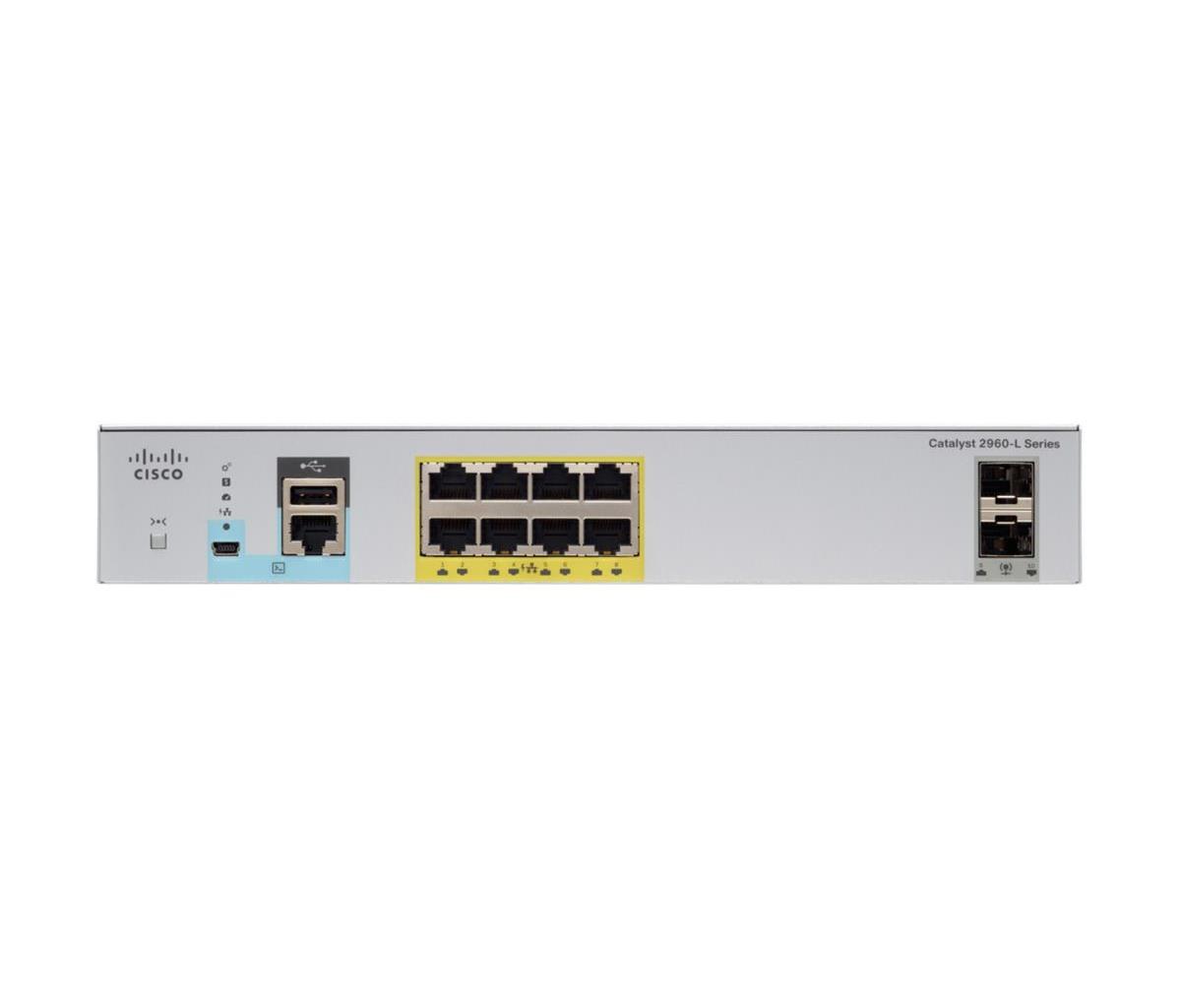

Cisco Catalyst 2960-cx 8 Port Poe Lan Base Remanufactured
ITCurry #: 0918V001 | Article #: WS-C2960CX-8PCL-RFFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
649.35
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information
The Cisco Catalyst 2960CX-8PC-L Network Switch is ideal for high-speed data connectivity, Wi-Fi backhaul and PoE+ connectivity in places where space is at a premium. Featuring a compact design and quiet, fanless operation, this managed switch can come out of the server room and be placed closer to users, meaning shorter cable runs and greater flexibility for your network deployment.
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10GBASE-T |
| Full duplex | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.9 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9198 |
| Security | |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | Telnet, RIP, SNMP, NTP, TACACS+, RMON, HTTP, RADIUS |
| Data link protocols | UDP, TFTP, IP, TCP, FTP |
| Supported network protocols | ICMP, ARP, BOOTP, OSPF, DHCP |
| Design | |
| Rack mounting | No |
| Product colour | White |
| LED indicators | Yes |
| Market segment | Business |
| Safety | UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825 |
| Performance | |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Mean time between failures (MTBF) | 569530 h |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 1.5 - 3.25 A |
| Power consumption (typical) | 24.5 W |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 124 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 øC |
| Storage temperature (T-T) | -25 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 648.3 BTU/h |
| Weight & dimensions | |
| Width | 269 mm |
| Depth | 238 mm |
| Height | 44.4 mm |
| Weight | 2.27 kg |
| Packaging data | |
| Package width | 327.7 mm |
| Package depth | 349.2 mm |
| Package height | 160.3 mm |
| Package weight | 2.27 kg |
| Technical details | |
| Products per shipping (inner) case | 1 pc(s) |
| Certificates | |
| Certification | FCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
