Catalyst 2960-xr 24 Gige 4 X 1g - Refurb
ITCurry #: 0918AP32 | Article #: WS-C2960XR24TSI-RF-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

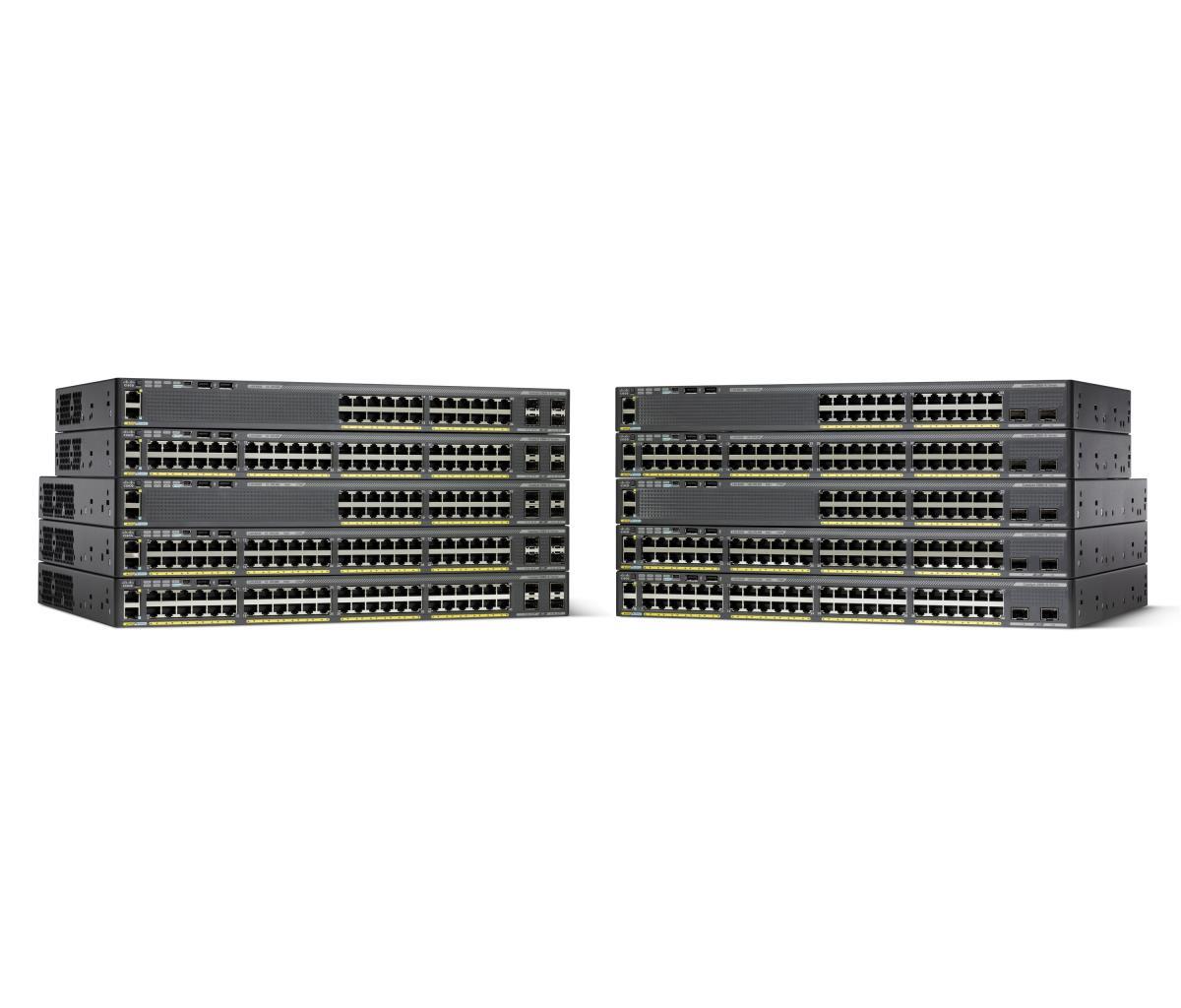

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Data transmission | |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 71.4 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SSH |
| SSH/SSL support | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3, RMON I/II |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 600 MHz |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Mean time between failures (MTBF) | 557320 h |
| Power | |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.5 - 1 A |
| Power consumption (typical) | 36.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 øC |
| Storage temperature (T-T) | -25 - 70 øC |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 408 mm |
| Height | 44.5 mm |
| Weight | 5.9 kg |
| Warranty | |
| Base Warranty | Non Non |
