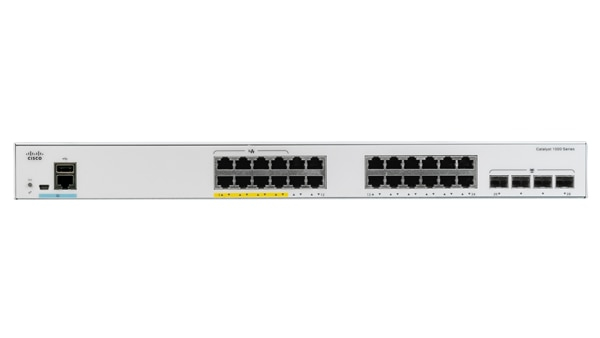

Catalyst 1000 24port Ge Full Poe 4x1g Sfp Refurb
ITCurry #: 0918AH23 | Article #: C1000-24FP-4G-L-RF-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Simplicity, flexibility, and security
Cisco Catalyst 1000 Series switches provide enterprise-grade network access sized for small businesses. With a wide range of Power over Ethernet (PoE) and port combinations, these easy-to-manage switches provide the performance a modern small office needs.
Quiet and compact
The compact, fanless design means Catalyst 1000 switches can hide in plain sight in open-plan spaces.
Simplified management
Catalyst 1000 switches run on classic Cisco IOS and can be configured with an intuitive on-box web UI, making management simple and easy.
Enhanced security
With Catalyst 1000 switches' larger-scale access-control tables and additional security features, you can segment traffic for greater security.
Power over Ethernet
With a range of PoE options featuring Perpetual PoE, Catalyst 1000 switches make installing IoT devices as easy as plugging in cables.
Compare Catalyst 1000 models
The Catalyst 1000 Series switch platform provides a range of options to fulfill almost any small-business network’s requirements. All models include an easy-to-use web UI for configuration, management, and monitoring.
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.67 Mpps |
| MAC address table | 16000 entries |
| Static route | Yes |
| Number of static routes | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Security | |
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| IGMP entries | 1024 |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Web-based authentication |
| Authentication type | RADIUS |
| Multicast features | |
| Multicast support | Yes |
| IPv4 multicast entries | 1024 |
| IPv6 multicast entries | 1024 |
| Design | |
| Product colour | Grey |
| LED indicators | Yes |
| Performance | |
| Built-in processor | Yes |
| Processor model | ARM7 |
| Processor frequency | 800 MHz |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Mean time between failures (MTBF) | 698220 h |
| Power | |
| AC input voltage | 110 - 220 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 øC |
| Storage temperature (T-T) | -25 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 4.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
