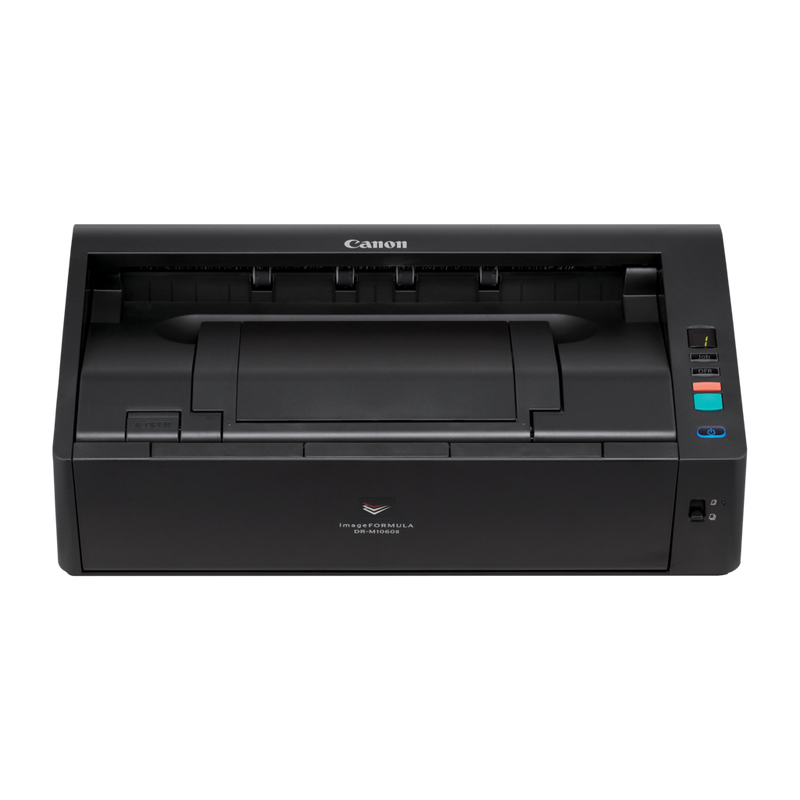

Imageformula Dr-m1060ii - Document Scanner - 60ppm/120ipm 600dpi - Adf 80sheet - USB
ITCurry #: 0874M578 | Article #: 6049C003-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
A uniquely compact, eco-friendly and reliable A3 desktop scanner that helps creating smooth workflows and capturing multiple document types and formats.
Superior efficiency from a uniquely compact A3 scanner
Enjoy quick and effortless scanning with the high-speed, high-quality imageFORMULA DR-M1060II. Save time with easy maintenance and deliver enhanced sustainability via a compact device.
Optimise productivity
Boost document workflows with the ultra-fast duplex scanning speeds of up to 120ipm, the 80-sheet automatic document feeder and the advanced image processing features
Reliable and versatile scanning
Scan a variety of documents, including ID embossed/plastic cards and up to 3m long documents, and choose between the U-turn Paper Path and Straight Path feeding mechanisms
High-quality documents
Enhance image quality and consistency with the high-performance image processing features like the Advanced Text Enhancement, Auto Colour Detection, Auto Size and Deskew Correction, Text Orientation Correction and Customised Colour Dropout
Reduced environmental impact
Minimise your environmental impact using energy-efficient device made from more than 20% recycled materials and with environmentally friendly packaging
| Scanning | |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Design | |
| Scanner type | Sheet-fed scanner |
| Product colour | Black |
| Built-in display | No |
| Performance | |
| Sensor type | CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 13000 pages |
| Paper handling | |
| Scanning media types supported | Business Card, Plastic Card |
| Long-paper mode | Yes |
| Maximum ISO A-series paper size | A3 |
| Media thickness (min) | 0.04 mm |
| Maximum scan width | 30 cm |
| Maximum scan length | 3 m |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 32.5 W |
| AC input frequency | 50/60 Hz |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.9 W |
| Weight & dimensions | |
| Width | 424 mm |
| Depth | 440 mm |
| Height | 210 mm |
| Weight | 6.1 kg |
| Folded width | 42.4 cm |
| Folded depth | 24.6 cm |
| Folded height | 12 cm |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 32.5 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Warranty | |
| Base Warranty | Non Non |
