9600w-16e Pci-e 4.0 Tri-mode Raid Adapters And Ehbas
ITCurry #: N2042203 | Article #: 05-50108-00Flash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
961.93
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

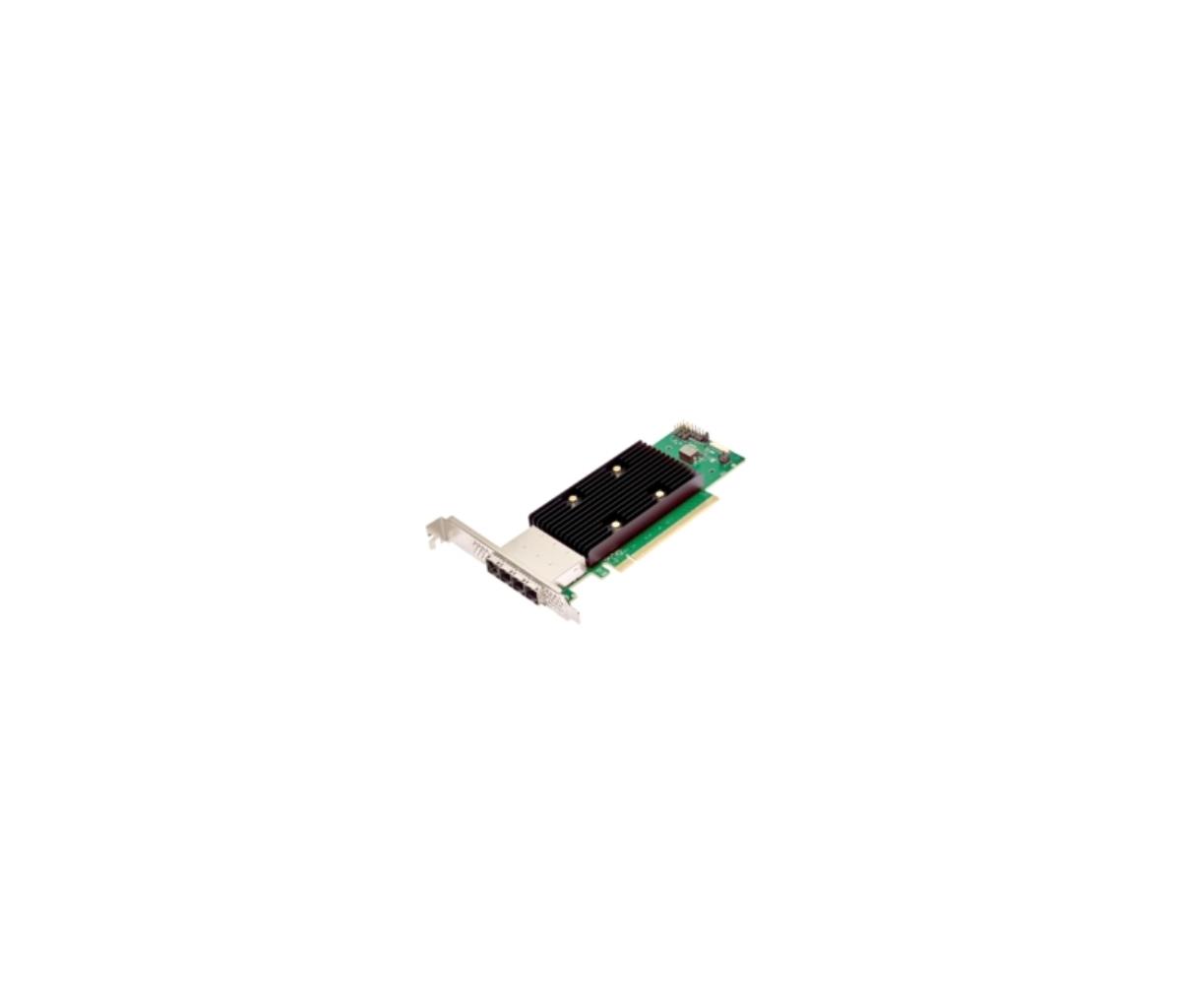

The 9600W-16e Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9600W-16e eHBA delivers the performance and scalability needed by critical applications.
| Ports & interfaces | |
| Host interface | PCIe |
| Output interface | SAS, SATA |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 4.0 |
| NVMe | Yes |
| External mini-SAS ports | 4 |
| Design | |
| Internal | Yes |
| Product colour | Green, Silver |
| Mean time between failures (MTBF) | 5000000 h |
| Certification | Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020) |
| Features | |
| Data transfer rate (max) | 12 Gbit/s |
| S.M.A.R.T. support | Yes |
| Plug and Play | Yes |
| Power | |
| Power consumption (typical) | 18 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Compliance certificates | RoHS, WEEE |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | SUSE Linux Enterprise Server |
| Other operating systems supported | Yes |
| Weight & dimensions | |
| Width | 167.6 mm |
| Depth | 68.9 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Channels quantity | 16 channels |
| Warranty | |
| Base Warranty | Non Non |
