Product Information

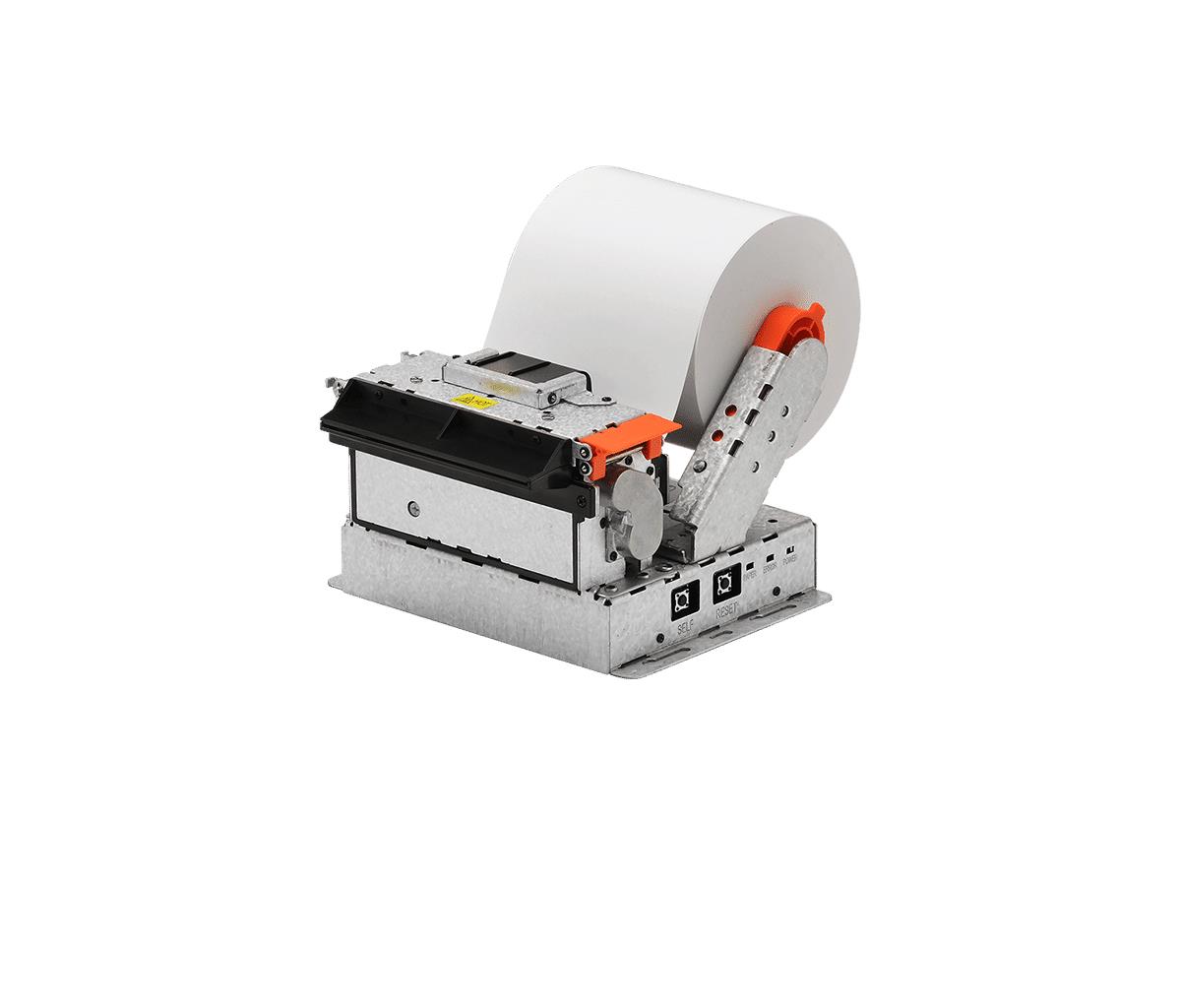

3-inch (up to 80mm) open frame kiosk printing mechanism
A compact, flexible and highly reliable 3-inch (up to 80mm) open frame kiosk printing mechanism. Designed for standalone self-service kiosk installations, the BK3-31 direct thermal printer operates at print speeds up to 250mm per second with 203dpi resolution to produce high quality text, graphics and barcodes. Presenting a larger paper roll capacity than traditional packaged kiosk printers, the BK3-31 support media roll diameters of 80 / 102 / 120mm and various media widths of 83 / 80 / 60 / 58 / 20mm for a range of printing applications from wider lottery ticketing to narrow token printing. The kiosk printer also provides a paper saving mode through BIXOLON’s simple Unified Utility reducing paper wastage resulting in paper savings up to 25% and decreased CO2 emissions.
With compact, lightweight design the BK3-31 kiosk printer supports a range of kiosk mounting options to provide design flexibility for the kiosk builder. With seamless paper feeding with additional roller-tension, multi-position near end sensor for easy monitoring of the paper, removable bezels and an adjustable media width frame the printing mechanism can be personalised for a range of kiosk designs. The kiosk printing mechanism also has a USB V2.0 and Serial (9 pin male or 5 pin connector) with a DC Jack or 2 pin power connector connectivity as standard.
Supported by BIXOLON’s wide range of drivers, utilities and SDKs, the BK3-31 is compatible with Windows® major OS system and OPOS-based systems from Android™, Windows® and Linux™ for smart based devices. Supporting by an industry leading 2 year warranty as standard.
| Printing | |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 250 mm/sec |
| Character size | 24 x 24 mm |
| Print technology | Direct thermal |
| Type | POS printer |
| Paper handling | |
| Paper loading type | Easy Paper Loading |
| Maximum roll diameter | 12 cm |
| Supported paper width | 80/58 mm |
| Maximum printing width | 7.2 cm |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Connectivity technology | Wired |
| Network | |
| Ethernet LAN | Yes |
| Features | |
| Built-in barcodes | 1D, 2D, Code 93, Code-128 Codabar Library, Code-39 Library, Data Matrix, EAN13, EAN8, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, GS1-128, ITF, PDF417, QR Code, UPC-A, UPC-E |
| Internal memory | 0.032 MB |
| Autocutter durability | 1.5 million cuts |
| Print head life | 100 km |
| Mounting position | Vertical |
| Wall mountable | Yes |
| Receive buffer | 64 KB |
| Design | |
| Product colour | Stainless steel |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Other features | |
| Buffer size | 64 KB |
| Warranty | |
| Base Warranty | Non Non |
