Q3839-spve Dome Camera
ITCurry #: 13836879 | Article #: 03201-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

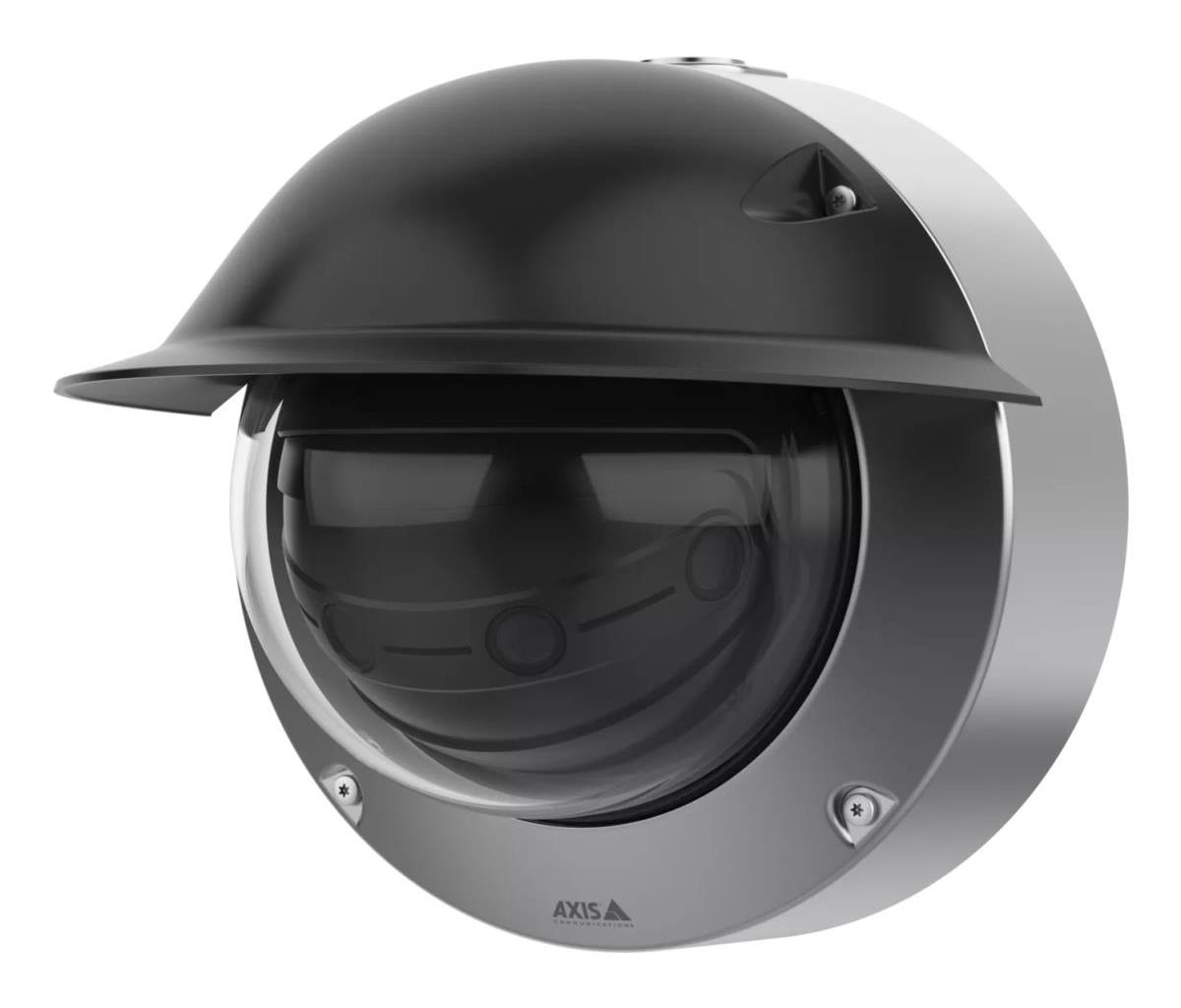

Enclosed in a marine-grade stainless steel casing, this AI-powered, multisensor camera is made for the toughest conditions. It delivers ultra-high 180° panoramic overviews with no blind spots for complete situational awareness.
Robust and secure in corrosive areas
AXIS Q3839-SPVE comes in a stainless steel (EN1.440 SS 316L) casing and can withstand the corrosive effects of seawater, making it ideal for wide area surveillance in marine environments such as on ships and in harbors. Plus, it can operate in temperatures from -50 °C to 55 °C (-58 ºF to 131 ºF). Easy to clean and maintain, and resistant to cleaning chemicals, it’s also certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. What’s more, this robust camera comes with Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-2 Level 2 certified key storage and operations.
Ultra clear overview with no blind spots
Get the benefits of four cameras while paying for just one with this cost-effective device. It ensures fast, cost-efficient installation, and there’s a variety of mounting options available. It offers 180° horizontal coverage and 90° vertical coverage with no blind spots. And with up to 8K horizontal resolution at 30 fps and seamless stitching of all four images, you’ll enjoy smooth and cohesive 180° panoramic overviews. Thanks to lossless zoom, it’s possible to zoom in without degrading image sharpness. Edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images.
AI-powered for valuable insights
Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful features and analytics on the edge. For instance, AXIS Object Analytics can detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, when AXIS Q3839-SPVE is paired with an Axis radar device, you can take advantage of AXIS Radar Data Visualizer, a powerful application that adds value to and increases the functionality of Axis multisensor cameras.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Multi |
| Built-in heater | Yes |
| Dynamic range | 120 dB |
| Certification | UL/cUL, BIS, CE, KC, VCCI, RCM |
| Design | |
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | Black |
| Housing material | Plastic |
| Protection features | Water resistant |
| International Protection (IP) code | IP66, IP67, IP68, IP69K |
| IK code | IK10 |
| Camera | |
| Minimum illumination | 0.03 lx |
| Lens viewing angle, horizontal | 180ø |
| Lens viewing angle, vertical | 90ø |
| Tilt angle range | 30 - 88ø |
| Pan range | -176 - 176ø |
| Camera shutter speed | 1/8500 - 1/5 s |
| Image sensor | |
| Number of sensors | 4 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Detect distance | 88.3 m |
| Observe distance | 35 m |
| Recognize distance | 17.7 m |
| Maximum aperture number | 1.8 |
| Identify distance | 8.8 m |
| Fixed focal length | 4.6 mm |
| Night vision | |
| Night vision | Yes |
| Video | |
| Maximum resolution | 7552 x 3776 pixels |
| Total megapixels | 8.3 MP |
| Video compression formats | H.264, H.265 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Automatic gain control | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness, White balance |
| Privacy masking | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 1-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, PCM |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Built-in microphone | Yes |
| Sample rates | 8 - 48 kHz |
| Network | |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP©, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Wi-Fi | No |
| Bluetooth | No |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| Internal memory | 4000 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
| Security | |
| Security algorithms | 802.1x RADIUS, EAP-TLS, MSCHAPv2, PEAP |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Line crossing detection |
| Human and vehicle targets classification | Yes |
| Network access storage (NAS) | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 9.74 W |
| Power consumption (max) | 19.1 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 195.2 mm |
| Diameter | 25.6 cm |
| Weight | 4.8 kg |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Number of cameras | 1 |
| User guide | Yes |
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| Other features | |
| I/O ports | Audio in/out |
| Technical details | |
| Iris | Yes |
| Warranty | |
| Base Warranty | Non Non |
