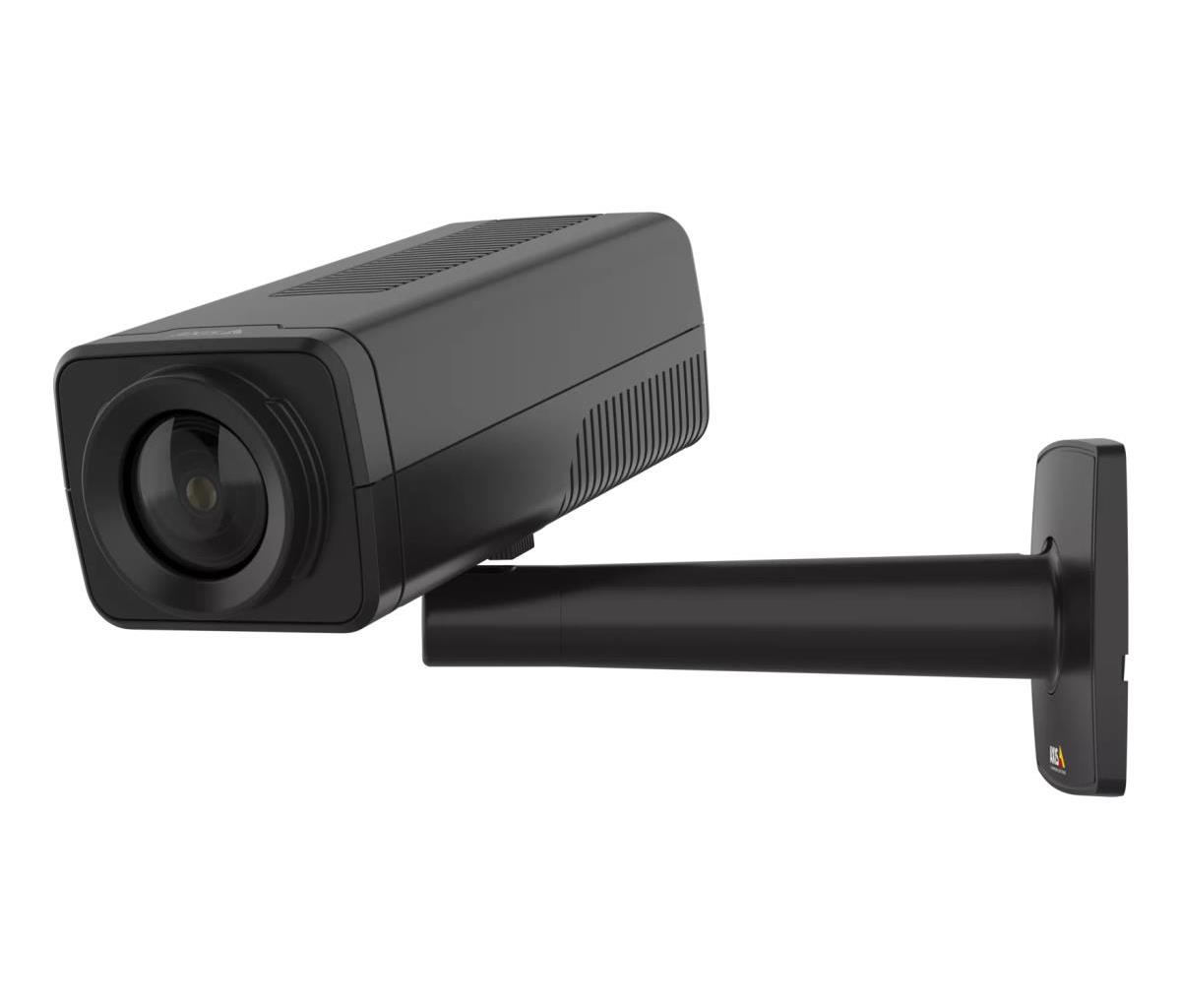

Q1726 Block Camera
ITCurry #: 13836926 | Article #: 03392-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Built on ARTPEC-9, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. It’s possible to use your existing housing or upgrade to new housing, making it a more environmentally friendly option.
Superior image quality
AXIS Q1726 offers 4 MP resolution at 60 fps and features a large 1/1.8" sensor to ensure consistent performance even in low light. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. What’s more, it’s available with a wide (4.7-10 mm) lens with a 101.08°-44° horizontal field of view for surveillance in wide, open areas. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.
Flexible today and tomorrow
With the flexibility to use various types of enclosures, this compact and lightweight camera with integrated optics helps ensure you preserve the value of your investment. That’s because it has a standardized design that can fit into most enclosures including Axis, third-party housing, and custom enclosures. It’s also backward compatible so you can mount it in your existing outdoor enclosure. Plus, this future-proof camera can also be mounted in new enclosures ensuring you have the flexibility to respond to future requirements.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.
Powerful with strong security
Featuring a deep learning processing unit (DLPU), this AI-powered camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under exposed, or redirected. In addition, with AXIS Live Privacy Shield preinstalled, it addresses privacy laws and regulations and offers AI-based dynamic masking so you can detect movement and activities while safeguarding privacy. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Processor model | ARTPEC-9 |
| Built-in processor | Yes |
| Number of languages | 19 |
| Languages support | English, German, French, Italian, Spanish, Russian, Simplified Chinese, Traditional Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Turkish, Finnish, Thai, Vietnamese |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Aluminium, Plastic |
| Camera | |
| Minimum illumination | 0.002 lx |
| Lens viewing angle, horizontal | 101.8 - 44ø |
| Lens viewing angle, vertical | 54 - 24.6ø |
| Camera pixel size | 2.9 æm |
| Camera shutter speed | 1/49500 - 2 s |
| Image sensor | |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Focal length range | 4.7 - 10 mm |
| Auto focus | Yes |
| Maximum aperture number | 1.2 |
| Minimum aperture number | 1.1 |
| Detect distance (wide) | 65 m |
| Detect distance (tele) | 141 m |
| Observe distance (wide) | 26 m |
| Observe distance (tele) | 56 m |
| Recognize distance (wide) | 13 m |
| Recognize distance (tele) | 28 m |
| Identify distance (wide) | 6.4 m |
| Identify distance (tele) | 14 m |
| Closest focusing distance | 0.5 m |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Video | |
| Maximum resolution | 2688 x 1512 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265, AV1, M-JPEG |
| Video recording | Yes |
| Frame rate | 120 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Saturation, Contrast, Brightness, Sharpness, White balance |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Audio | |
| Audio formats supported | AAC-LC, G.711, OPUS, G.726, LPCM |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1 |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 4096 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 2 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection |
| Mirror | Yes |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 6.1 W |
| Power consumption (max) | 12.95 W |
| DC output voltage | 10, 12, 15, 16, 24, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 575 g |
| Sustainability | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), ICES, RCM, UL, VCCI |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Warranty | |
| Base Warranty | Non Non |
