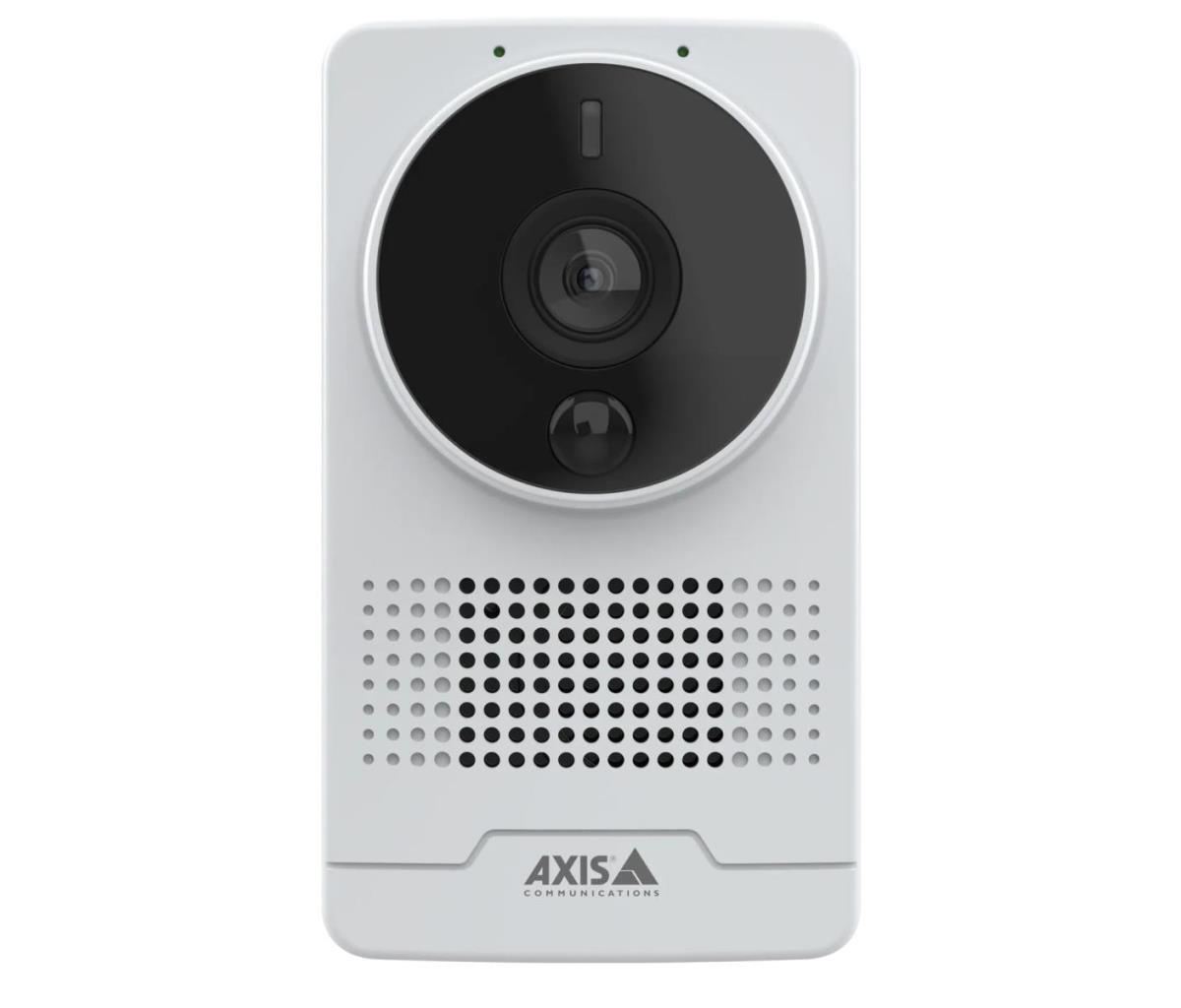

M1075-l Mk Il Box Camera
ITCurry #: 13836931 | Article #: 03280-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Ideal for residential care and small stores, this compact, easy-to-install camera offers two-way audio and great image quality - around the clock. AI-powered, it supports advanced features and powerful video and audio analytics on the edge.
Ensure privacy and security
This fully featured camera is designed with privacy and security in mind. Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. A tally LED indicates video streaming or recording. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy. Furthermore, AXIS TM1903 Privacy Cover is available as an accessory to temporarily protect privacy when needed. Plus, a built-in pencil privacy filter ensures discreet images that safeguard privacy.
AI-powered analytics
AXIS M1075-L Mk II includes a deep learning processing unit (DLPU) to run advanced features and powerful analytics on the edge. With AXIS Object Analytics preinstalled, it can detect, track, and count humans. It also includes AXIS Audio Analytics, which detects sounds such as breaking glass, screams, shouts, speech, and coughing fits, and provides instant alerts when these events occur. In addition, generated metadata can be gathered and visualized in a dashboard for valuable insights.
Extended possibilities
This compact camera supports PoE and includes a USB and I/O port for optional Wi-Fi-dongle connectivity. The I/O port also allows you to connect external devices, such as a panic button - ideal in elderly care facilities and small stores. It can be mounted in corners for complete coverage with a 103° field of view and features a built-in speaker and dual microphones. Plus, voice enhancer ensures great two-way audio communication. With an IR-corrected lens, it offers professional-quality video both day and night. What’s more, a passive infrared (PIR) sensor can detect movement in total darkness. And an HDMI port lets you display live video on a public viewing monitor.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| People counting function | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Processor model | Ambarella CV25 |
| Built-in processor | Yes |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Box |
| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Aluminium, Plastic |
| International Protection (IP) code | IP40 |
| Camera | |
| Minimum illumination | 0.18 lx |
| Lens viewing angle, horizontal | 103ø |
| Lens viewing angle, vertical | 55ø |
| Camera pixel size | 2.8 æm |
| Camera shutter speed | 1/19000 - 1/5 s |
| Image sensor | |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Detect distance | 42 m |
| Observe distance | 16 m |
| Recognize distance | 8 m |
| Maximum aperture number | 2 |
| Identify distance | 4 m |
| Fixed focal length | 3.16 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 18 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264H, H.264M, H.265 |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Image quality adjustment | Saturation, Contrast, Brightness, Sharpness, White balance |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, LPCM, G.711, PCM, ADPCM, OPUS |
| Built-in microphone | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at |
| Wi-Fi | No |
| Bluetooth | Yes |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Flash memory | 1024 MB |
| RAM capacity | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Terminal block port | Yes |
| Security | |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 5.4 W |
| Power consumption (max) | 12.95 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 60 mm |
| Depth | 93 mm |
| Height | 105 mm |
| Weight | 153 g |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Warranty | |
| Base Warranty | Non Non |
