F9111-r Mk Il Main Unit
ITCurry #: 13836677 | Article #: 02998-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

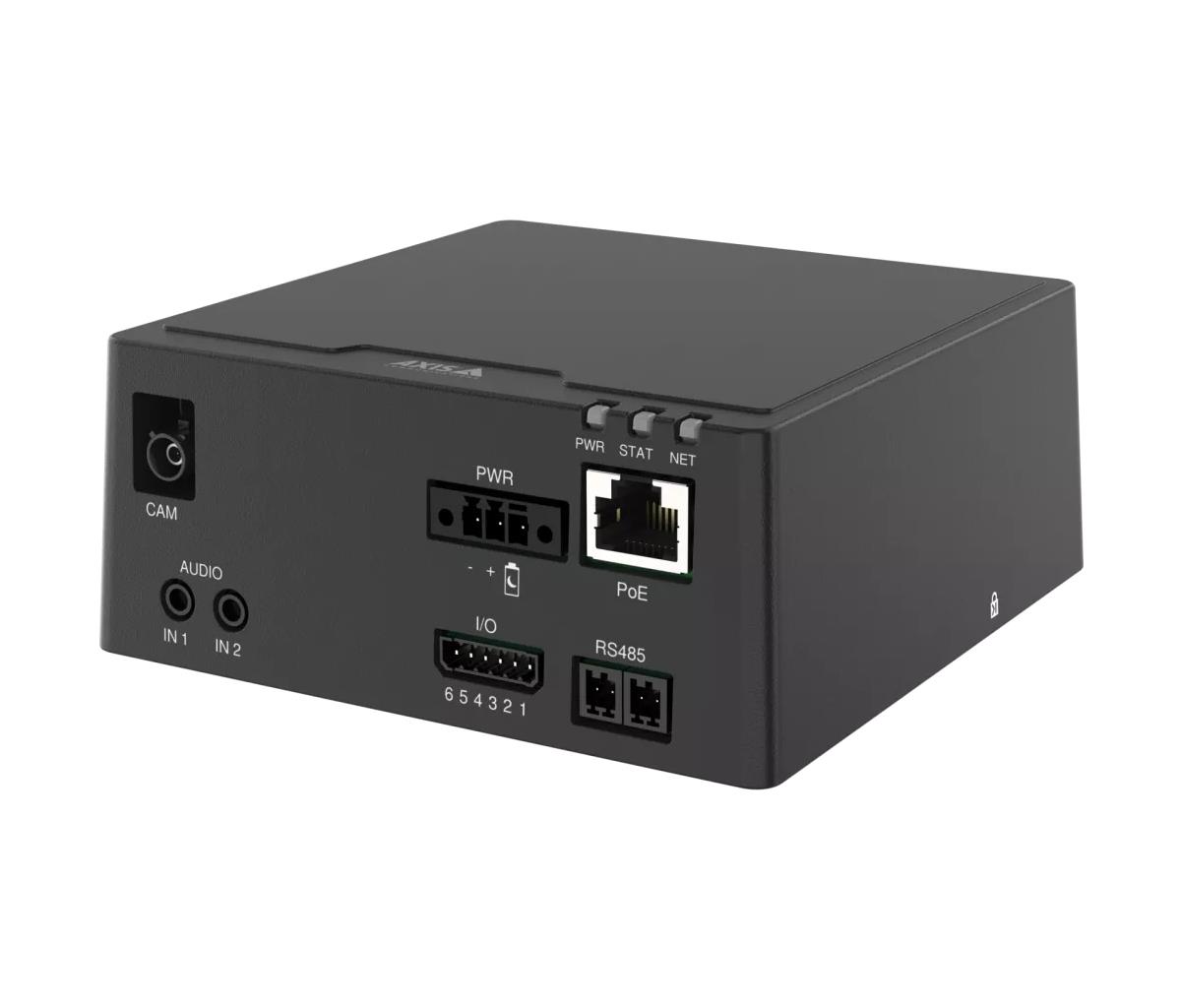

This rugged, 1-channel main unit is ideal for high-vibration environments. AI-powered, it supports advanced analytics based on deep learning at the edge. Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.
Flexible and cost-efficient
AXIS F9111-R Mk II offers one channel with 4K at 30 fps or 720p at up to 180 fps. You can choose one of seven different sensor units to suit your needs. This main unit delivers great forensic usability and lets you digitally zoom in and get all the details—ideal, for instance, within retail and banking environments. It can also be installed within machinery in production and processing environments where it delivers a high frame rate to monitor objects in fast-moving environments. Furthermore, WDR ensures high-quality video even in challenging light conditions.
Gain valuable insights
Featuring a deep learning processing unit (DLPU), this AI-powered main unit lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. With AXIS Sensor Metrics Dashboard preinstalled, you can gather information from connected devices including the integrated accelerometer sensor, as well as external Modbus sensor and GPS devices. What’s more, this main unit includes a built-in USB port that’s prepared for future applications.
Protected from the inside and out
With a rugged design, this one-channel main unit can withstand shock and vibrations, making it ideal for high-vibration environments. FAKRA connector provides a tight connection with the cable ensuring ruggedized installation. It includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. Furthermore, when installed in emergency vehicles and buses, the ignition control functionality with controlled shutdown ensures you don’t drain the vehicle’s battery
| Features | |
| Type | Base unit |
| Placement supported | Indoor |
| Brand compatibility | Axis |
| Product colour | Black |
| International Protection (IP) code | IP3X |
| Maximum number of cameras supported | 1 |
| LED indicators | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Memory card slot | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RS-485 ports | 2 |
| Line-in | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| DC-in jack | Yes |
| Power | |
| Input voltage | 10 - 48 V |
| Power consumption (typical) | 8.6 W |
| Power consumption (max) | 25.5 W |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 øC |
| Warranty | |
| Base Warranty | Non Non |
