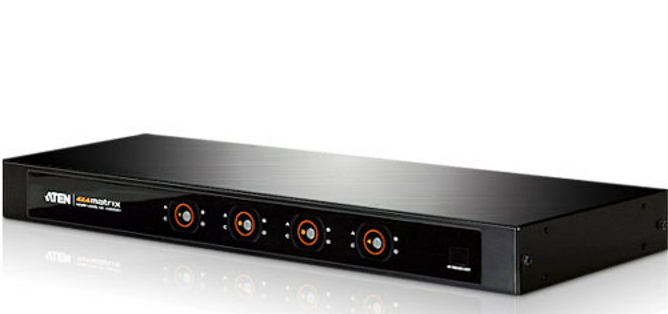

Hdmi 4k 4x4 Matrix Switch 4 Inputs 4 Outputs
ITCurry #: 90312990 | Article #: VM0404HA-AT-G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Features
- Connects any of four HDMI sources to any of four HDMI displays
- Toggle between HDMI sources and displays using remote control or front panel pushbuttons
- Cascade via other VM0404Hs to provide up to 64 HDMI sources/displas for digital signage systems
- Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
- HDCP 1.1 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- HDMI (3D, Deep Color)
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long-distance transmission – up to 20 m (24 AWG)
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Power On Detection – if one HDMI source is powered off, the VM0404H will automatically switch to the next powered-on source
- DDC compatible
- Signaling rates up to 2.25 Gbits in support of 1080p display
- All-metal casing
- Easy and affordable way to add four HDMI inputs to your multiscreen home theater system
- Rack Mountable
Package Contents
- 1x VM0404H 4x4 HDMI Matrix Switch
- 1x IR Remote Control Unit
- 1x 0AD6-1605-24EG Power Adapter
- 1x Rack Mount Kit
- 1x User Instructions
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI version | 1.3b |
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
| Features | |
| Material | Metal |
| Product colour | Black |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 20 m |
| Rack mounting | Yes |
| Supported graphics resolutions | 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080i, 1080p, 480p, 720p |
| Full HD | Yes |
| LED indicators | Yes |
| Power | |
| Power consumption (typical) | 9 W |
| Power requirements | 5.3 VDC |
| Weight & dimensions | |
| Weight | 1.86 kg |
| Dimensions (WxDxH) | 154 x 432 x 44 mm |
| Packaging content | |
| Remote control included | Yes |
| AC adapter included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
