Product Information

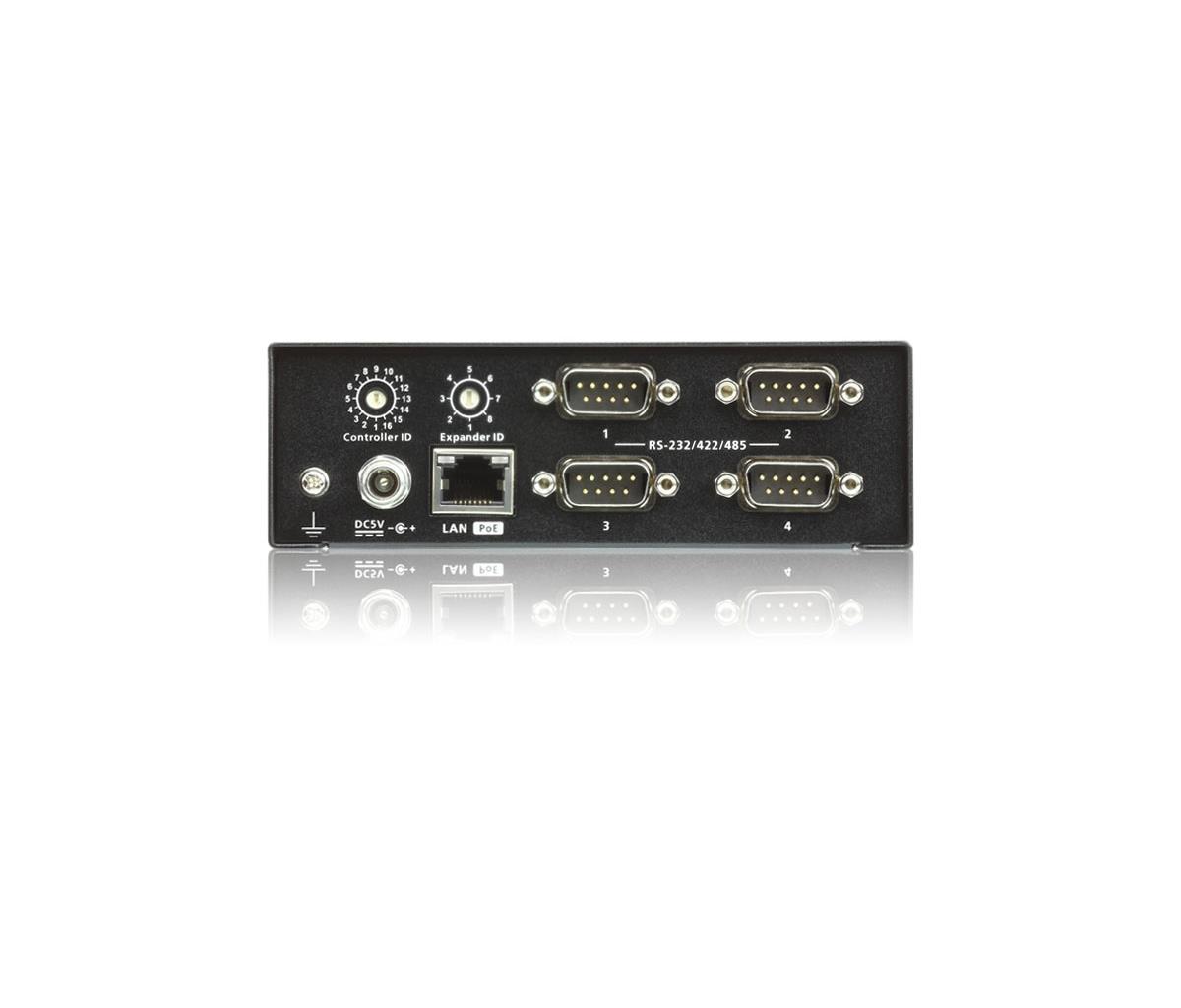

The VK224 provides Ethernet-to-serial connectivity with 4 bi-directional RS-232 / 422 / 485 serial ports. It allows users to remotely access serial devices from a PC or any system located anywhere. The complete Telnet CLI commands are fully integrated into users’ commercial and industrial applications.
What’s more, the VK224 serves as a flexible expansion box of the ATEN Control System, enabling users to control additional serial devices through an ATEN controller in any environments where more serial devices are required. With the advantage of Ethernet-based connection, the expansion box can be easily connected to controllers via LAN connection from a variety of locations across a network.
| Network | |
| Connectivity technology | Wired |
| Technical details | |
| Storage temperature (T-T) | -20 - 60 øC |
| Manual | Yes |
| Package height | 160 mm |
| Package width | 59 mm |
| Package weight | 710 g |
| Package depth | 239 mm |
| Product colour | Black |
| Material | Metal |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case width | 250 mm |
| Master (outer) case net weight | 2.75 kg |
| Ports & interfaces | |
| I/O ports | 4 x RS-232/422/485, 1 x RJ-45, 1 x USB Type A |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 øC |
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 3.89 kg |
| Weight & dimensions | |
| Dimensions (WxDxH) | 76 x 130 x 42 mm |
| Weight | 450 g |
| Warranty | |
| Base Warranty | Non Non |
