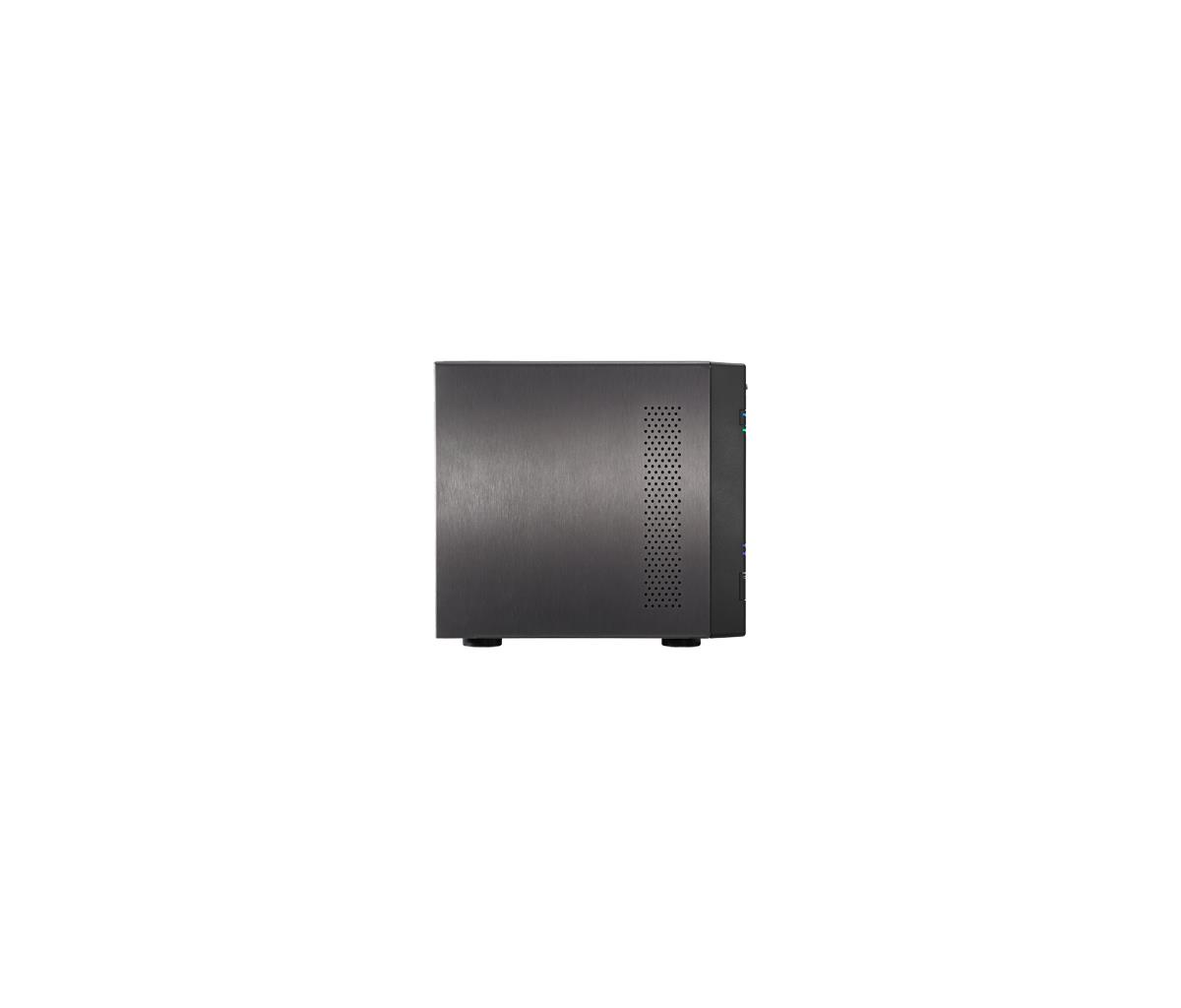

As-5008t 8bay Storage System 2.41GHz 1GB 4x Gbe 3x USB3 2x USB2 Hdmi
ITCurry #: T4062064 | Article #: 90IX00D1-BW3S10-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
High performance technology
An Intel Celeron 2.41GHz Dual-core processor and 1GB DDR3L memory, provide premium, energy efficient processing power. With read/write speeds of up to 112 MB/s, the AS50 series’ excellent performance is sure to satisfy your storage application needs.Furthermore, when AS50 series devices need more computing power, they can increase the CPU computing power from the original 2.41 GHz to 2.58 GHz, providing a smooth and seamless experience.
Effortlessly upgrade memory
Depending on your usage preferences, you can decide whether or not you want to upgrade memory. AS50/51 devices provide users with the ability to flexibly upgrade memory so there is no need to worry about the memory before you purchasing the device. When upgrading memory, you simply need to remove the cover of the NAS to do it (There are 2 expansion memory slots in total. Memory can be expanded up to a maximum of 8GB.), letting you easily improve system performance and allowing your NAS to simultaneously run more Apps.
*To purchase memory, please click here.
*For a list of compatible memory, please see:
*Memory installation Guide
Metallic design
Different from other NAS devices on the market which feature plastic cases and suboptimal cooling, the AS50/51 devices feature aluminum casing along with a rust and corrosion resistant coating which combines with the metallic hard disk trays to fully make use of the natural cooling properties of metal. This significantly enhances the entire cooling ability of the system.
4 times the network speed and increased reliability
The built-in quad Ethernet ports combined with the link aggregation function, allows your NAS to maintain its connection even if one of your Ethernet connections fail, significantly decreasing the likelihood of unexpected disconnections. Additionally, link aggregation provides faster transfer speeds than a single connection could, along with load balancing which automatically balances network traffic load across the two connections, making it the optimal choice for users who require high speed reliability.
Connect with a new generation of I/O technology for limitless possibilities
A professional grade NAS needs to be equipped with a diverse array of expansion functionality. ASUSTOR has built in USB 3.0, USB 2.0, eSATA, gigabit Ethernet and HDMI 1.4a ports along with a high fidelity audio S/PDIF port, allowing the NAS to connect to different types of external devices and not be limited to its internal capacity. ASUSTOR NAS redefines the meaning of flexibility and expandability in network storage.
High Quality Audio Output with S/PDIF
Turn your NAS into your digital music hub and let ASUSTOR's 50/51 Series devices take your local audio playback to another level. You can use SoundsGood or iTunes Server to play high quality digital music from your NAS and further combine it with S/PDIF high fidelity optical output for an unmatched listening experience that will truly bring your music to life.
Create the Ultimate Home Multimedia Center
Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. The built-in HDMI interface and variety of multimedia Apps let you to enjoy all of your favorite multimedia from your NAS by directly connecting it to an LCD/LED TV or amplifier.
ASUSTOR NAS supports Full HD (1080p) output, allowing you to savor your movies, TV shows, music and photos in high definition. What's more, through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and iTunes Server giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.
Additionally, you can also further add a surround sound amplifier to create an unprecedented high definition multi-channel listening experience. Imagine watching your favorite racing movie and being immersed in the roar of the engines. Feel the thrill and the sense of speed as you listen to the sounds of cars whizzing by. Prepare for an unparalleled entertainment experience that will have you on the edge of your seat.
*Currently, 2160p(4k) is only available on the 70 series.
**Currently, XBMC 13/Kodi is only available on the 50/51/70 series.
Even More Reliable After-Sales Service
ASUSTOR has extended the warranty period on all of its products to three years, continuing to make customer service a huge priority. It is ASUSTOR's mission to continue to provide its customers with products of the highest quality along with only the most reliable and attentive after-sales service and technical support.
Backup Everything
No matter if you are using Windows, Mac or even Linux, ASUSTOR provides you with suitable backup solutions and protocols to help you backup all your data.
Windows Environment ASUSTOR's exclusive Backup Plan utility lets you configure up to 6 different backup plans simultaneously. You can configure regularly scheduled backups of your important data and also sync the ever-changing files on your desktop to your NAS.
Mac Environment
ASUSTOR NAS supports Apple Time Machine backups allowing you to backup your Mac to your NAS. Different Mac users can also safely backup their computers to the same ASUSTOR NAS device.
Linux Environment
ASUSTOR NAS supports NFS/Rsync/SAMBA protocols giving you added flexibility when setting up your backup environment.
Quick and Easy File Access
The built-in File Explorer App allows you to access the files on your NAS through a Web browser. Enjoy drag and drop file transfers along with a directory structure view that lets you easily organize your data. Accessing files on your NAS never been easier.
Create a Stable, Reliable and High Quality Surveillance System
The powerful 50 Series devices provide you with stress free reliability when installing a surveillance system in your home or office environment. Installing the Surveillance Center App from App Central instantly turns your NAS into 24/7, high definition surveillance system. Surveillance Center provides comprehensive cross-platform support, allowing both Windows and Mac users to use familiar web browsers to access their surveillance feeds. Furthermore, ASUSTOR also offers the free AiSecure mobile app that gives users access to all their surveillance feeds while on the go. AiSecure also provides the ability to receive instant push notifications from Surveillance Center, allowing users to keep up with the latest developments. No matter if you need to protect individual assets, loved ones or your business, the powerful 50 Series devices are your optimal choice when creating a comprehensive surveillance system.
*Surveillance Center comes with 4 free IP camera channel licenses, which is higher than the industry standard. Users can also purchase add-on camera licenses to flexibly add new camera channels.
*Two different camera license packages are offered: single channel and 4 channels. Currently, the 50 Series devices can be expanded up to a maximum of 12 channels.
*The maximum number of cameras is based on the test results for each channel using 720P (1280x720), 30 FPS and H.264. Actual performance may vary due to camera settings and NAS load.
*In order to provide stable surveillance system resources, the local display function will be shut off after the NAS has enabled add-on licenses.
| Storage | |
| Storage drive interface | Serial ATA II, Serial ATA III |
| Storage drive size | 2.5/3.5" |
| Maximum supported storage capacity | 64 TB |
| RAID support | Y |
| RAID levels | 0, 1, 5, 6, 10 |
| Hot-swap drive bays | Y |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| Storage drives installed | N |
| Number of storage drives supported | 8 |
| Installed storage drive type | N |
| Supported storage drive types | HDD & SSD |
| Processor | |
| Processor family | Intel© Celeron© |
| Processor frequency | 2.41 GHz |
| Processor cores | 2 |
| Memory | |
| Internal memory type | DDR3L |
| Maximum RAM supported | 8 GB |
| Memory slots | 2 |
| Internal memory | 1 GB |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP, HTTPS, Proxy, SNMP, Syslog |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| eSATA ports quantity | 2 |
| HDMI ports quantity | 1 |
| Design | |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 12 cm |
| Performance | |
| Type | NAS |
| Backup function | Y |
| Backup features | Cloud |
| Number of users | 4096 user(s) |
| Noise level | 22 dB |
| Security algorithms | 256-bit AES |
| MAC address filtering | Y |
| Access Control List (ACL) | Y |
| Browser supported | Internet Explorer 9, FireFox, Chrome, Safari |
| System log | Y |
| Share folder | Y |
| Software | |
| Operating system installed | ADM |
| Operating system version | 2.5 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Linux operating systems supported | Y |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2013 |
| Power | |
| Power consumption (typical) | 59 W |
| Power consumption (sleep) | 3.2 W |
| AC input voltage | 100-240 V |
| Weight & dimensions | |
| Width | 293 mm |
| Depth | 230 mm |
| Height | 215.5 mm |
| Weight | 6.1 kg |
| Technical details | |
| Harmonized System (HS) code | 84714100 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK |
| Warranty | |
| Base Warranty | Non Non |
