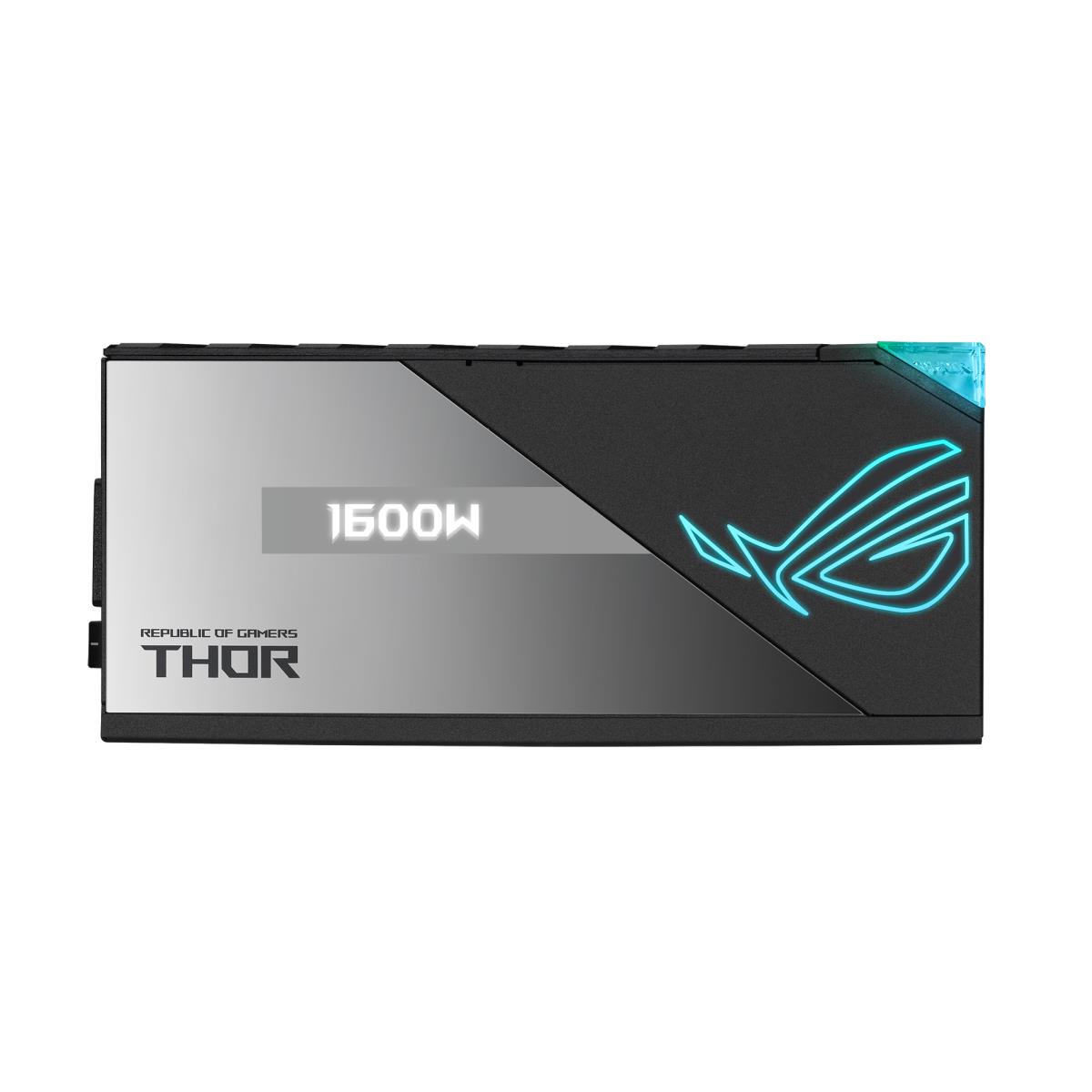

Titanium Power Supply Unit ROG-THOR-1600T-GAMING - 1600W 20+4 Pin ATX12V
ITCurry #: 8881AN99 | Article #: 90YE00K0-B0NA00-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
THE QUIETEST 1600W POWER SUPPLY
The ultimate expression of Thor wields a redesigned core that brings higher power efficiency, improved cooling, and lower noise to monstrous rigs that slay everything in their path.
Based on Cybenetics PSU test result database entries before October 2021.
COMPONENTS
GAN MOSFETS
Gallium nitride MOSFETs are the source of Thor’s power. Boasting lower switching losses and improved efficiency compared to conventional silicon transistors, GaN FETs allow the 1600W Thor to swing massive amounts of current without being needlessly wasteful.
DIGITAL POWER CONTROL
A digital controller provides precise control over the GaN power array, facilitating lightning-fast response to load changes.
80 PLUS TITANIUM CERTIFICATION
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying Thor to reliably fuel your build for years to come.
THERMAL CONTROL
ROG HEATSINKS
Integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the PSU, further extending component lifespan.
135MM PWM FAN
The PWM-controlled Axial-tech fan shifts 21% more air and needs fewer revolutions to cool critical components. And because Thor is designed from the ground up to stay cool, the fan shuts off entirely when the PSU load is 50% or below.
LAMBDA A++ CERTIFICATION
Thor Titanium cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
EXPERIENCE
SLEEVED CABLES
A range of sleeved cables are bundled with Thor, and we also provide a 20% CableMod discount.
PCIE GEN 5.0 READY
Each ROG Thor 1600W Titanium PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
EXPERIENCE
10-YEAR WARRANTY
We're so confident about the reliability of the ROG Thor 1600W Titanium that we back it with a 10-year* warranty.
*Core product operation is guaranteed for 10 years. The OLED panel and RGB LEDs are subject to a 3-year warranty.
| Power | |
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Overcharge, Overheating, Overload, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 10 |
| PCI Express power connectors (16-pin) | 1 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Design | |
| Product colour | Black, Silver |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Illumination | Yes |
| On/off switch | Yes |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Certificates | |
| Compliance certificates | CE, Low Voltage Directive (LVD), RoHS |
| Weight & dimensions | |
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.69 kg |
| Packaging data | |
| Package weight | 2.71 kg |
| Package type | Box |
| Technical details | |
| Sustainability compliance | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Warranty | |
| Base Warranty | Non Non |
