Symmetra Px Power Module 10/16kw 400v
ITCurry #: 02806828 | Article #: SYPM10K16HFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
7048.83
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

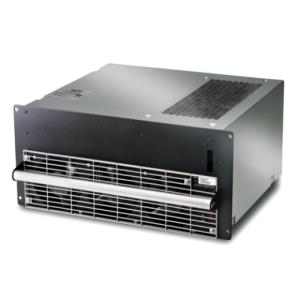

"A 16 kW high efficiency power module for the Symmetra PX 160 kW & PX 48 kW." "This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10 kW of power protection if installed in a PX 80 kW, 40 KW or 20 kW all-in-one."
| Features | |
| Product type | Power module |
| Product colour | Black, Grey |
| Noise level | 63 dB |
| Power | |
| Load capacity | 16000 VA |
| Capacity | 16000 W |
| Input voltage | 400 3 phases |
| Input frequency | 40/70 Hz |
| Output voltage | 230 V |
| Number of phases | 3 |
| Maximum total current draw per phase | 33 A |
| DC input voltage | 400 V 3 phases |
| Output power capacity | 16 kVA |
| Output connection type | hard wire 5-wire (3P + N + E) for 1 zone(s) |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 40 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1015 m |
| Non-operating altitude | 0 - 4572 m |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 700 mm |
| Height | 132 mm |
| Weight | 28.5 kg |
| Packaging data | |
| Package width | 700 mm |
| Package depth | 595 mm |
| Package height | 225 mm |
| Package weight | 59.5 kg |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | f4c2965e-f80d-4830-8cd4-be926afb0f45 |
| Mounting | front |
| Logistics data | |
| Country of origin | Philippines |
| Export Control Classification Number (ECCN) | EAR99 |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85079080 |
| Total carbon footprint (kg of CO2e) | 14940.59030343892 |
