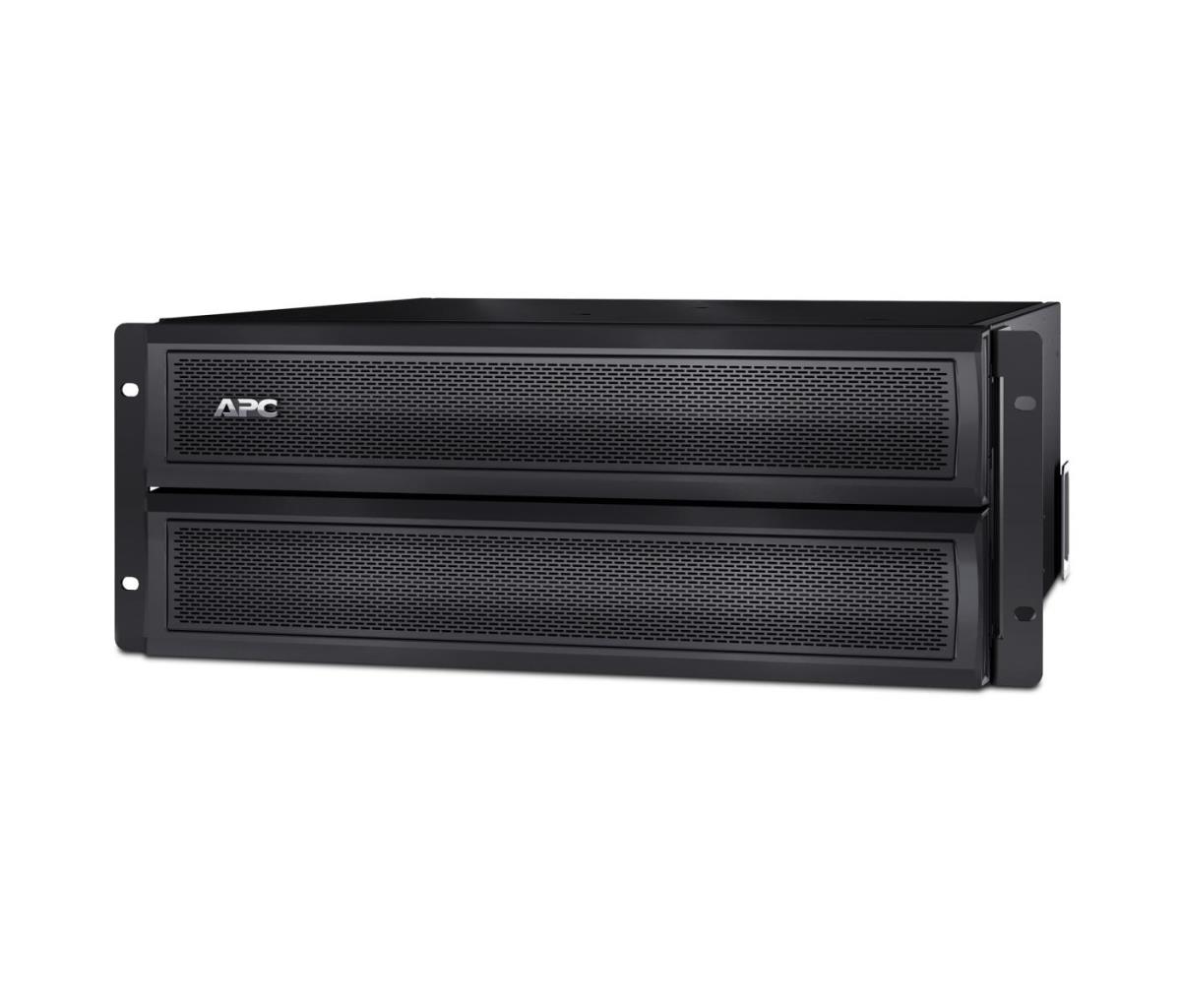

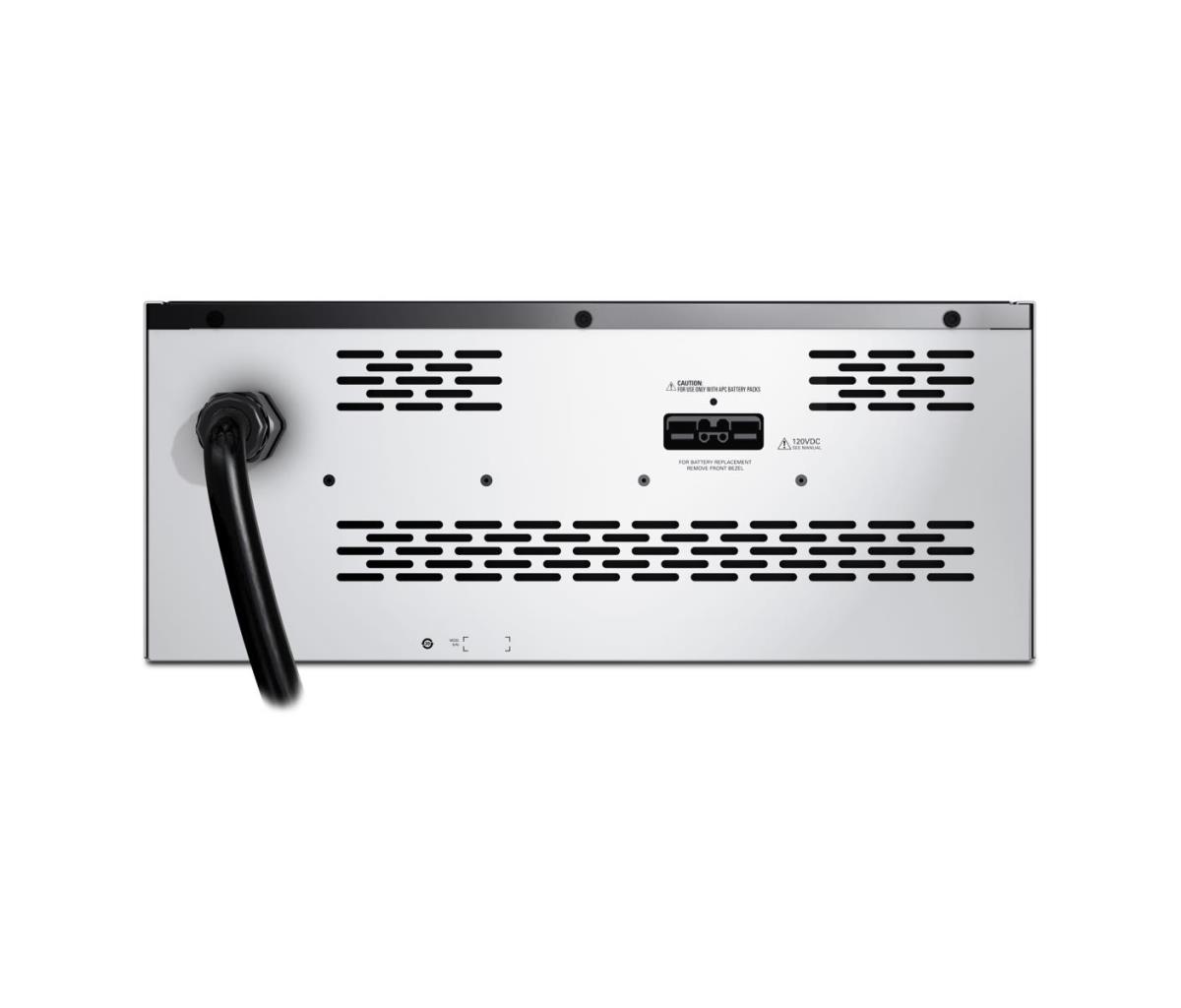

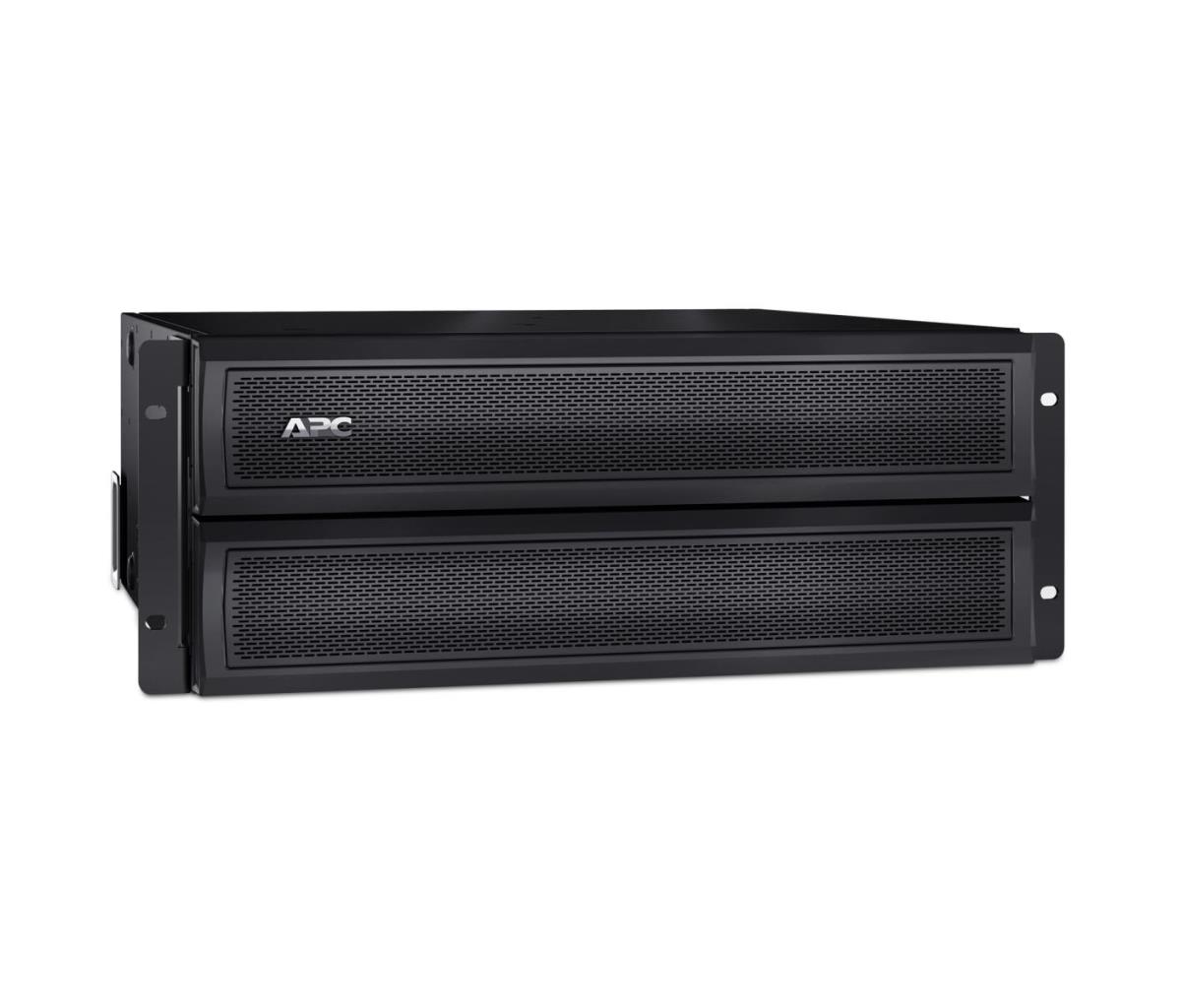

Smart-UPS X 120V External Battery Pack Rack/Tower
ITCurry #: 0280K369 | Article #: SMX120BP-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

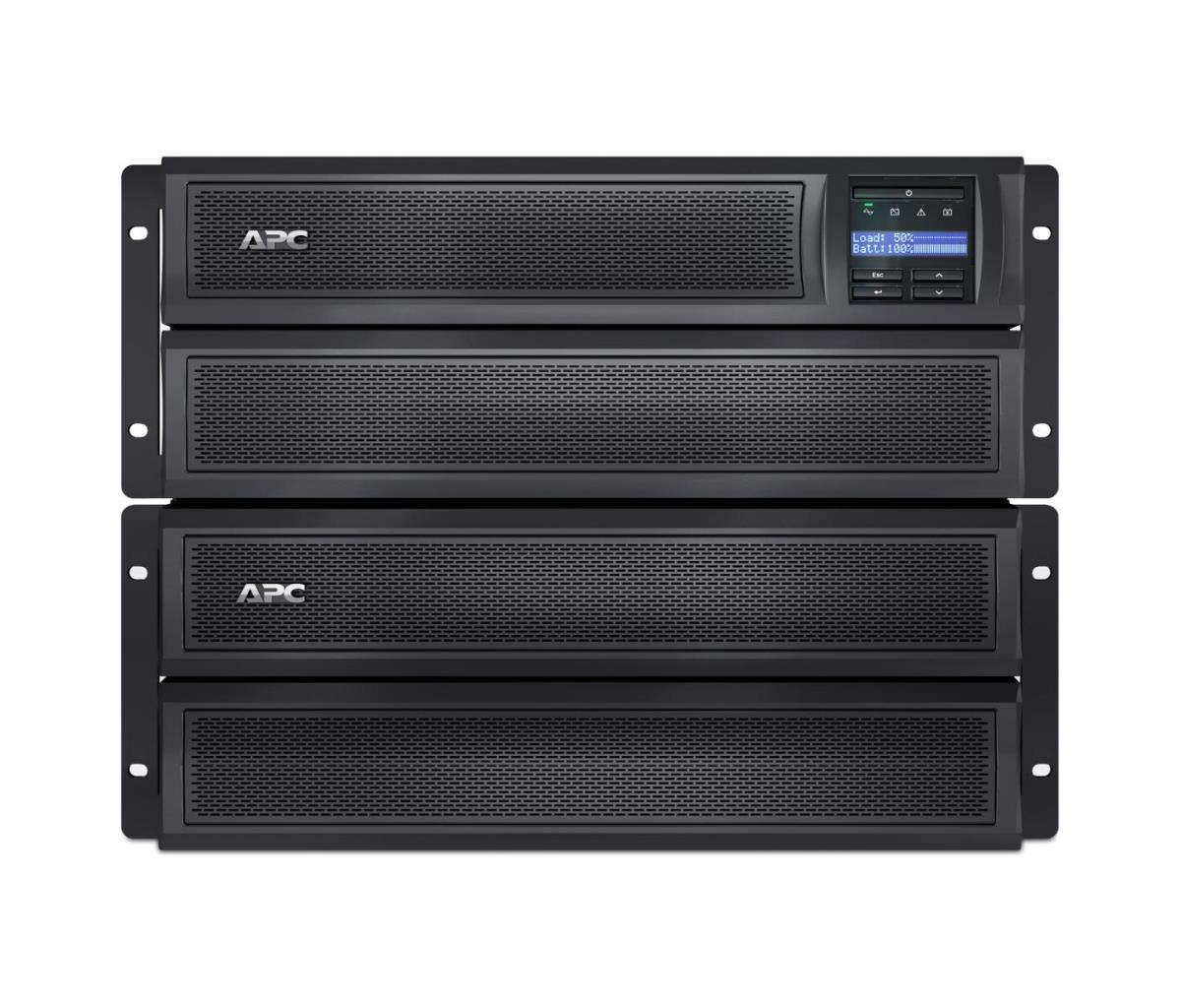

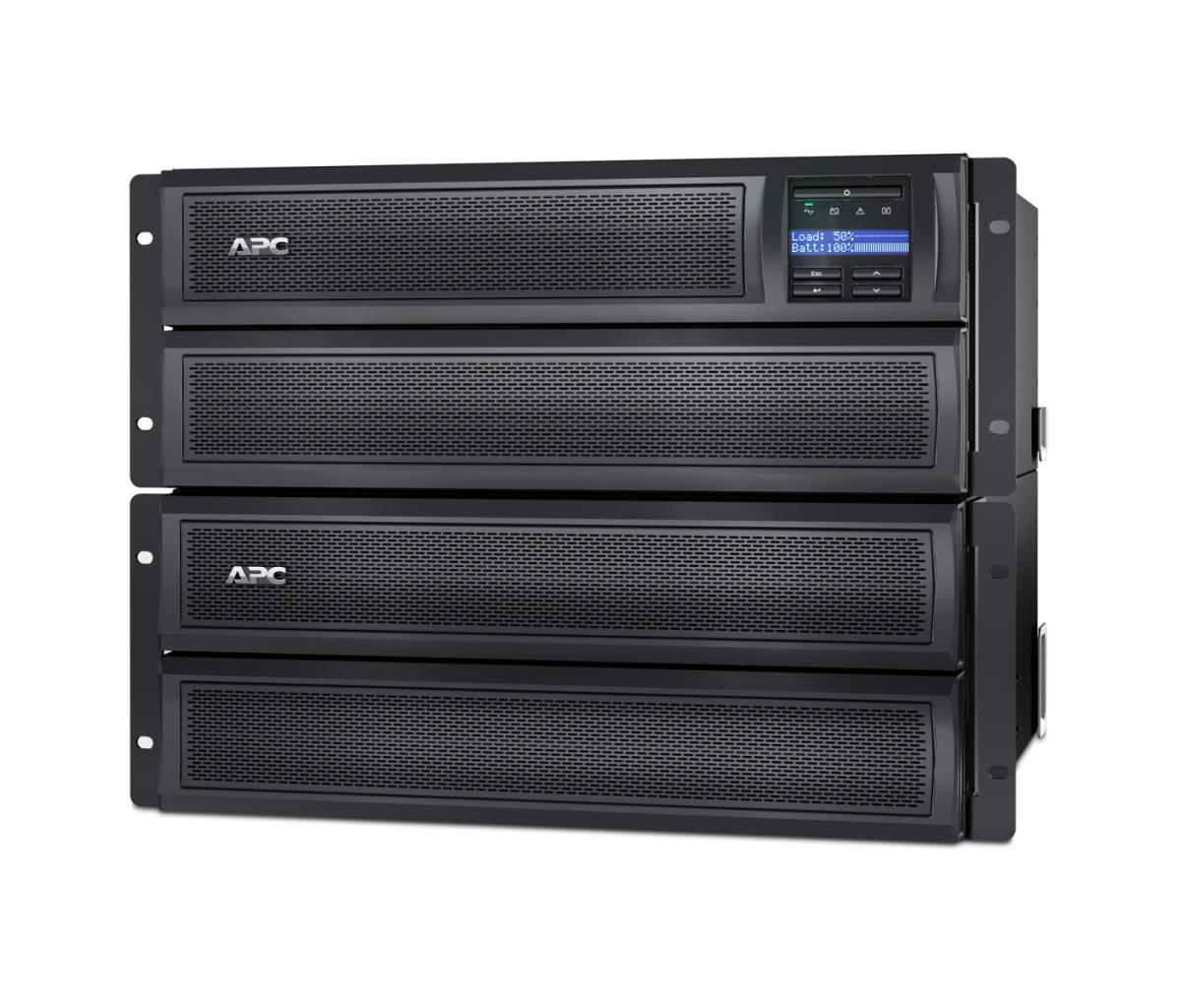

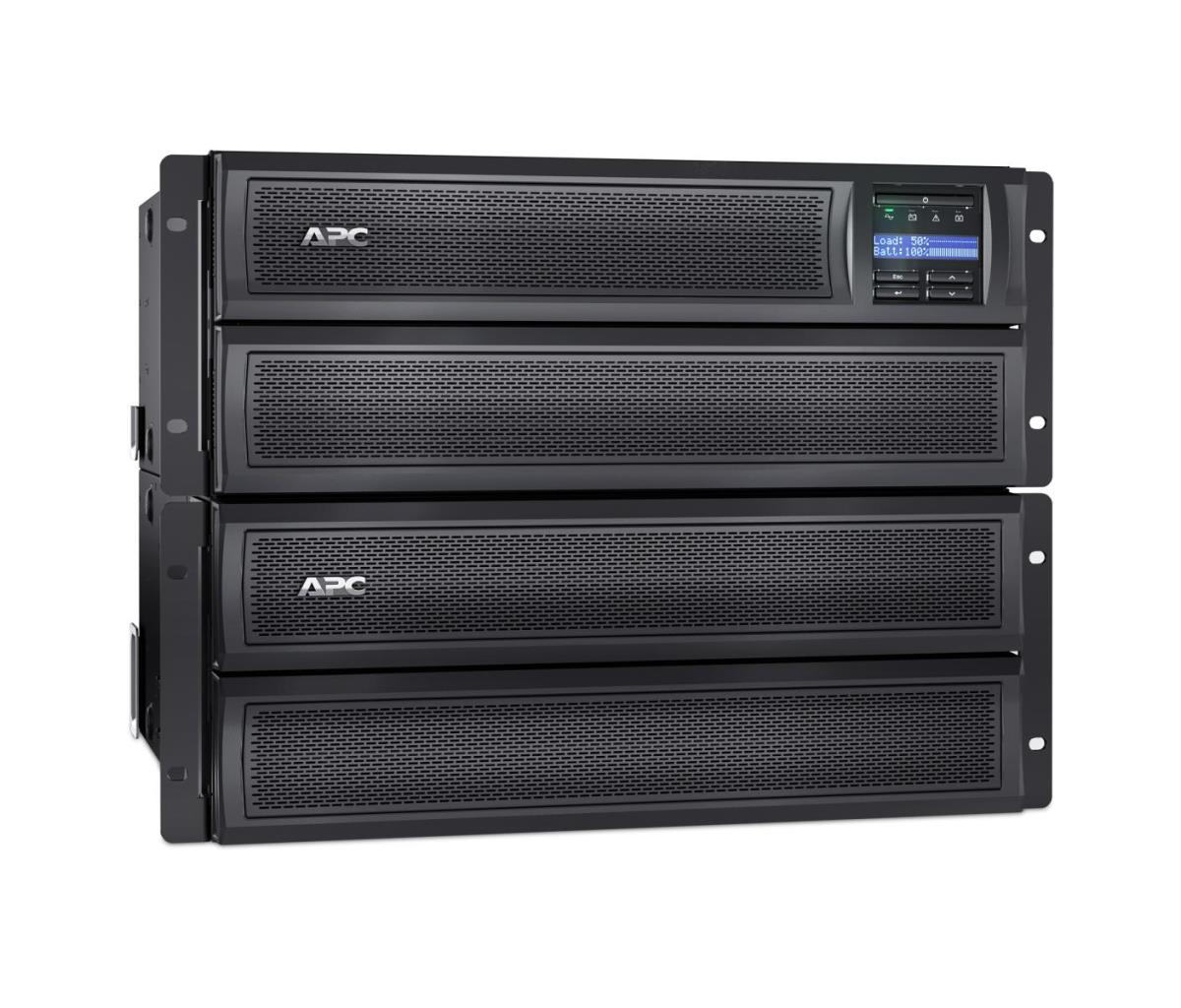

Easily connect this external battery pack to an existing APC Smart-UPS X to instantly increase the amount of battery runtime to connected devices during a power outage. Please refer to your APC Smart-UPS X manual to confirm compatibility with this external battery back. The battery pack offers easy plug-and-play installation onto an operating APC Smart-UPS, ensuring power availability while runtime capacity is added. Through the APC Smart-UPS’ intelligent battery management and precision charging, the battery pack maintains the UPS system’s performance, reliability, and useful life. The APC battery pack provides scalable runtime to the APC Smart-UPS X, allowing multiple battery packs to be quickly added if the need arises. The battery pack operates equally in tower configuration, standing next to an APC Smart-UPS, or in rack-mount configuration, mounted below the UPS. Package Includes APC SMX120BP External Battery Pack, installation guide, and rack-mounting brackets.
| Features | |
| Product colour | Black |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 120 V |
| Battery capacity | 1200 VAh |
| Battery life | 3 year(s) |
| Hot-swap battery | Yes |
| Certification | REACH |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 299.69 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 60.9 kg |
| Width | 432 mm |
| Height | 178 mm |
| Depth | 483 mm |
| Packaging data | |
| Package width | 586 mm |
| Package height | 330 mm |
| Package depth | 633 mm |
| Package weight | 65.5 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
| Warranty | |
| Base Warranty | Non Non |
