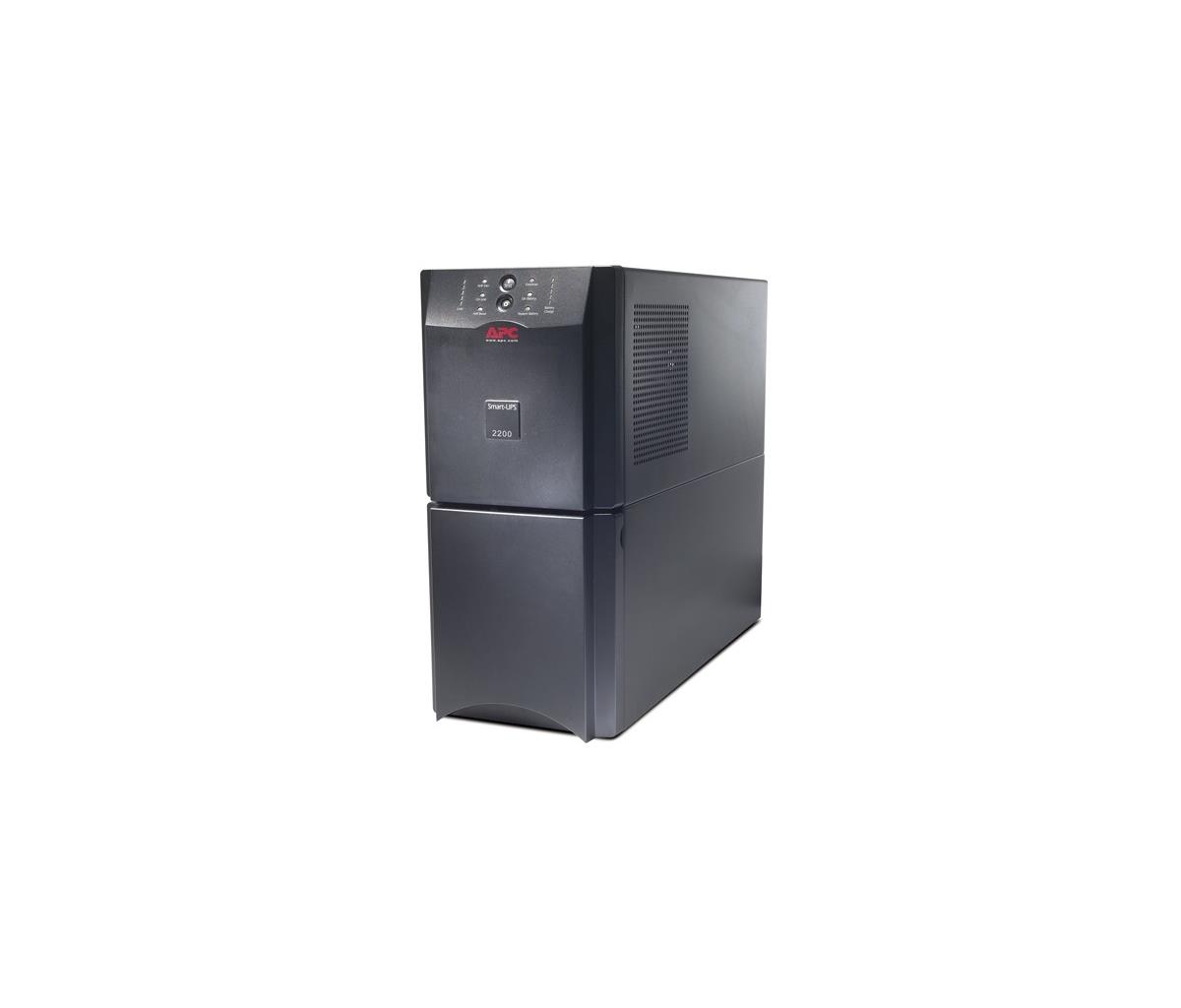

Smart UPS 2200va USB And Serial 230v
ITCurry #: 02803205 | Article #: SUA2200I-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
APC Smart-UPS® protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS® is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
Features:
Adjustable voltage sensitivity
Adjustable voltage-transfer points
Audible alarms
Automatic restart of loads after UPS shutdown
Automatic self-test
Boost and Trim Automatic Voltage Regulation (AVR)
Cold-start capable
Generator compatible
Hot-swappable batteries
Intelligent battery management
LED status indicators
Network manageable
Power conditioning
Predictive failure notification
Resettable circuit breakers
Safety-agency approved
Serial Connectivity
SmartSlot
Temperature-compensated battery charging
| Features | |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Surge energy rating | 320 J |
| Emergency Power Off (EPO) | Y |
| Noise level | 45 dB |
| Audible alarm(s) | Y |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 6.7 min |
| Typical backup time at half load | 24.1 min |
| Replacement battery cartridge | RBC55 |
| Design | |
| Product colour | Black |
| Compatibility | C-tick, CE, EN 50091-1, EN 50091-2, GOST, PCBC, VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Weight | 50.9 kg |
| Package weight | 60.9 kg |
| Other features | |
| I/O ports | 1x DB-9 RS-232 1x USB 1x SmartSlot |
| Output connections | 8x IEC 320 C13 1x IEC 320 C19 3x IEC Jumpers |
| Dimensions (WxDxH) | 196 x 546 x 432 mm |
| Nominal output voltage | 230 V |
| Output voltage note | 220/230/240 V |
| Nominal input voltage | 230 V |
| Filtering | Y |
| Package dimensions (WxDxH) | 381 x 762 x 559 mm |
