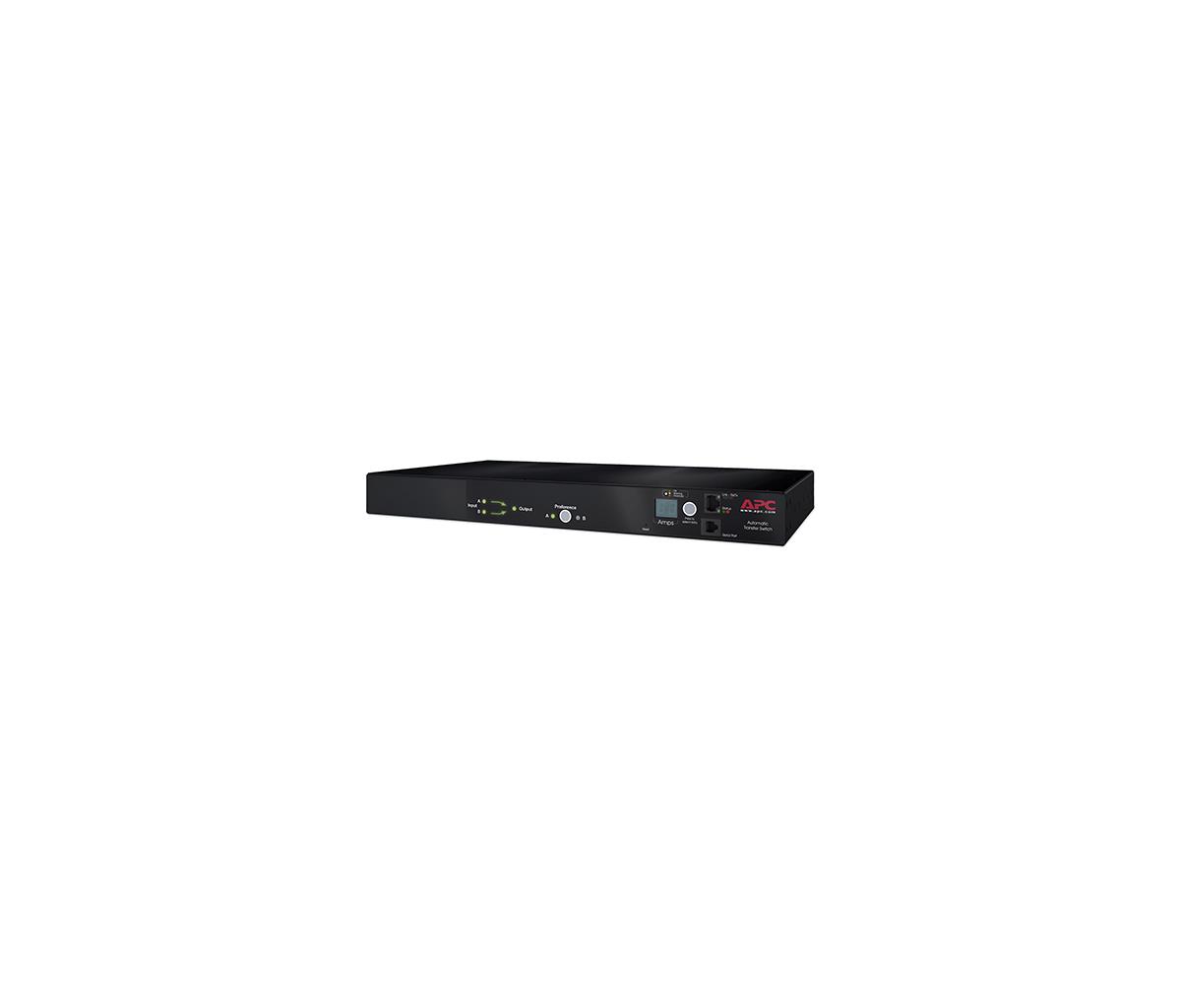

Rack ATS 100-120v 15a L5-15 In (10) 5-15r Out
ITCurry #: 0280D657 | Article #: AP7750A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Dual Input Power Sources
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.
| Design | |
| PDU types | Switched |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | NEMA 5-15P |
| AC outlet types | NEMA 5-15R |
| Features | |
| LED indicators | Yes |
| Cable length | 2.44 m |
| Power | |
| Nominal input voltage | 100 - 120 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 100 - 120 V |
| Load capacity | 1440 VA |
| Maximum input current per phase | 15 A |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC 15 A, ICES-003, TUV-C, TUV-NURTL, VCCI A |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 øC |
| Storage temperature (T-T) | -25 - 65 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 236 mm |
| Height | 44 mm |
| Weight | 4.7 kg |
| Packaging data | |
| Package weight | 6.48 kg |
| Package width | 600 mm |
| Package depth | 356 mm |
| Package height | 114 mm |
| Warranty | |
| Base Warranty | Non Non |
