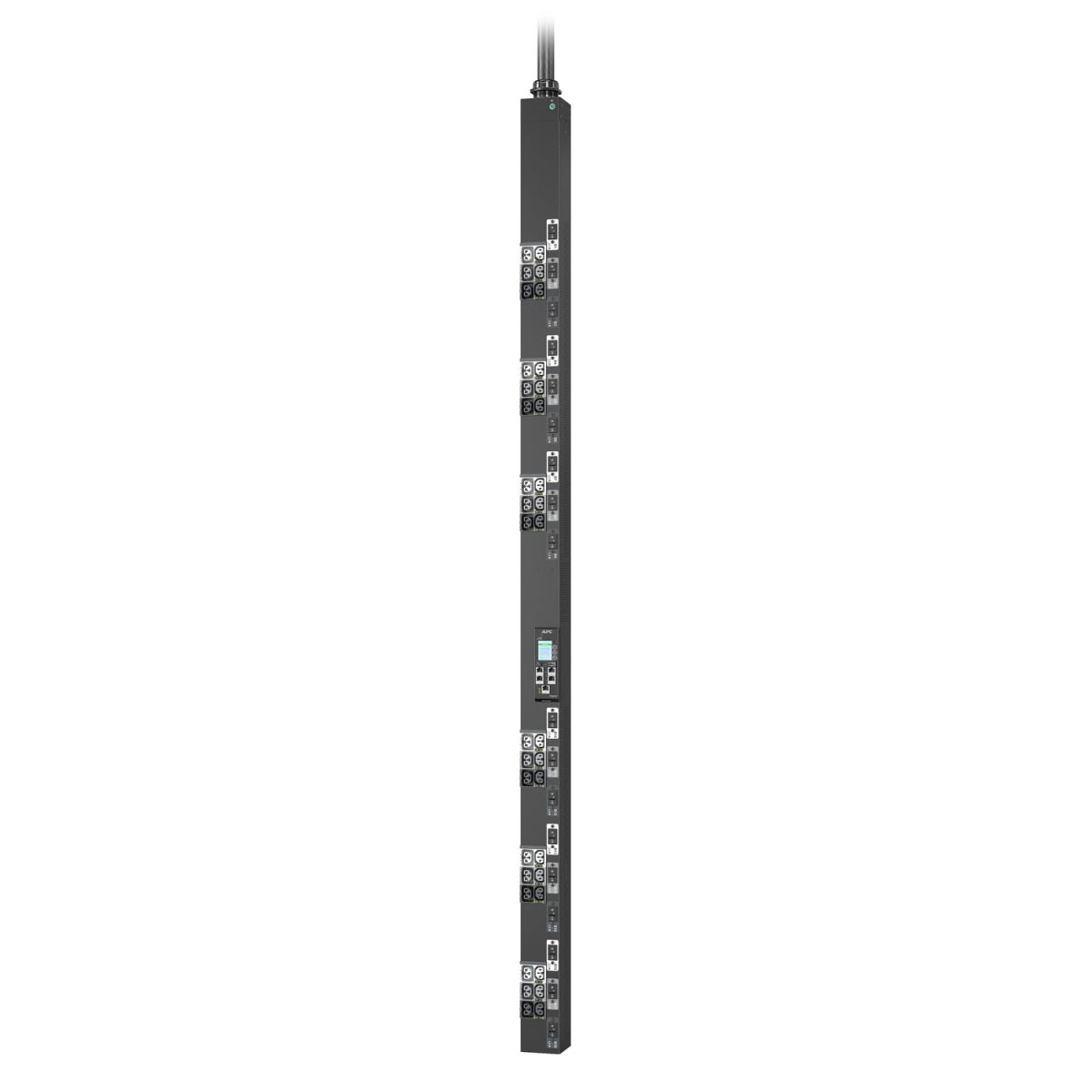

NetShelter Rack PDU Advanced Switched, 0U, 3 Phase, 415V, 69.0kVA 100A, 36 Outlets
ITCurry #: 0280M265 | Article #: APDU11550SW-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks in ZeroU form. PDU level power metering provides power visibility and notification of potential overload. 50 percent of outlets on model are designed as 4 in 1 combination outlets which can be used as either C13, C19, C15, or C21 to provide unparalleled deployment flexibility. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today s high density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is 5125P6W 100A and features 18 count C13/C15 and 18 count C13/C15/C19/C21 outlets. A 9.8 foot (3 meter) input cord makes it easier for the PDU to reach the power supply.
| Design | |
| PDU types | Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Upgradeable | Yes |
| Ports & interfaces | |
| AC outlets quantity | 18 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Input connection type | IEC 309 100 A |
| Features | |
| International Protection (IP) code | IP67 |
| Management features | |
| Management platform | NMC3 |
| Power | |
| Nominal input voltage | 415 3 phases |
| AC input frequency | 50/60 Hz |
| Maximum current | 100 A |
| Output voltage | 415 V AC 3 phases |
| Load capacity | 69000 VA |
| Number of phases | 3 |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainability | |
| Doesn't contain | Silicone |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 60 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | 0 - 15240 m |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 85 mm |
| Height | 1980 mm |
| Weight | 20.2 kg |
| Packaging data | |
| Package weight | 26 kg |
| Package width | 350 mm |
| Package depth | 165 mm |
| Package height | 2320 mm |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 7547f066-9302-46d9-96e9-461928dd6901 |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | Yes |
| Warranty | |
| Base Warranty | Non Non |
