Galaxy VL UPS 200 Scalable to 500 kW, 400/480 V, Start-up 5x8
ITCurry #: 0280M207 | Article #: GVL200K500DSFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
36893.92
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

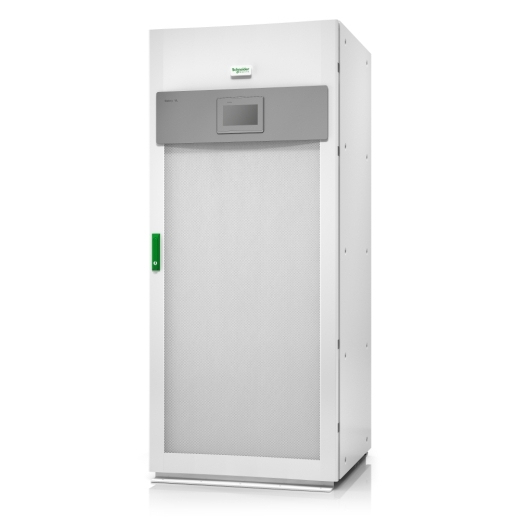

This Galaxy VL UPS GVL200K500DS is highly efficient, modular, high-density 200kW (400/480V) 3-phase UPS that is scalable up to 500kW. It delivers top performance for medium, large, and edge data centers, as well as critical infrastructure in commercial and industrial applications. It includes a 5x8 start-up service.
| Features | |
| Output power capacity | 500 kVA |
| Output power | 500000 W |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 480 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 480 V |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 97.2% |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Power protection features | Overload, Short circuit |
| Power source type | AC |
| Battery | |
| Battery voltage | 384 V |
| Design | |
| Form factor | Tower |
| Cooling type | Active |
| Built-in fan | Yes |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -25 - 55 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Certification | IEC 60721-4-2 level 2M2, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, UL 1778 5th edition, VFI-SS-111 |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 850 mm |
| Depth | 925 mm |
| Height | 1970 mm |
| Weight | 550 kg |
| Packaging data | |
| Package width | 1100 mm |
| Package depth | 950 mm |
| Package height | 2145 mm |
| Package weight | 620 kg |
| Warranty | |
| Base Warranty | Non Non |
