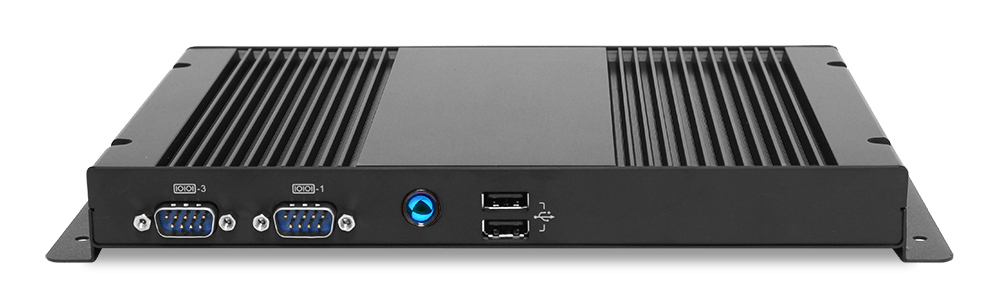

Digital Signage Media Player - Dex5750 - i5-1135g7 - 8GB Ram - 256GB SSD
ITCurry #: 91513012 | Article #: 491.DEP00.0100-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The first AOPEN Intel-based system capable of supporting hardware accelerated AV1 8K playback. As if that wasn’t enough, the DEX5750 has a 12 ~ 24V DC for automotive use and a legacy RS232/422/485 COM Port selectable by BIOS, making the system very suitable for automation purposes.
8K HDR content playback
This digital signage media player is capable of driving 8K content. With a resolution that goes up to 7680 x 4320 pixels, your content is displayed clearly.
Intel Core platform
This Digital Engine is based on the Intel Core platform. More specifically, on the 11th generation. These computing devices are available in i3 and i5, and therefore in different SKU’s.
Small form factor
This form factor ensures easy integration into kiosks or behind screens. The AOPEN small form factor is a standard that is used for Digital Engine (DE) models. The size of our Digital Engine series is set to a maximum of 240 x 25 x 158 mm. Do the math and you will see that a Digital Engine is an investment that will last, even after replacing the item in a kiosk or mount that already exists.
Fanless design without venting holes
This Digital Engine is passively cooled. The cooling ribs on its exterior make sure the device won’t overheat. This means the device doesn’t have moving parts which enhance its reliability. Furthermore, the device is quiet and dustproof.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i5 |
| Processor generation | 11th gen Intel© CoreT i5 |
| Processor model | i5-1135G7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 2.4 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 0.9 GHz |
| Tjunction | 100 øC |
| Processor socket | BGA 1449 |
| Memory | |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
| ECC | No |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | M.2 |
| Intel© OptaneT Memory module installed | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
| Performance | |
| Market positioning | Business |
| Product type | Mini PC |
| Network | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Line-out | Yes |
| Microphone in | Yes |
| DC-in jack | Yes |
| Serial ports quantity | 2 |
| On/off button | Yes |
| Power | |
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Design | |
| Chassis type | Mini PC |
| Volume | 0.95 L |
| Placement supported | Horizontal |
| Product colour | Black |
| Software | |
| Operating system installed | Windows 10 IoT |
| Processor special features | |
| Intel© High Definition Audio (Intel© HD Audio) | Yes |
| Embedded options available | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel© OS Guard | Yes |
| Intel Trusted Execution Technology | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Supported instruction sets | AVX 2.0, AVX-512, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
| Display | |
| Display included | No |
| Audio | |
| Audio chip | Realtek ALC897 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 øC |
| Storage temperature (T-T) | -30 - 60 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 25 mm |
| Height | 158 mm |
| Weight | 1.87 kg |
| Warranty | |
| Base Warranty | Non Non |
