USB-C 4K docking station for 1 HDMI monitor, Ethernet, USB-C, USB-A, card reader and PD pass-through
ITCurry #: T4057172 | Article #: AC7092-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Turn your laptop into a workstation

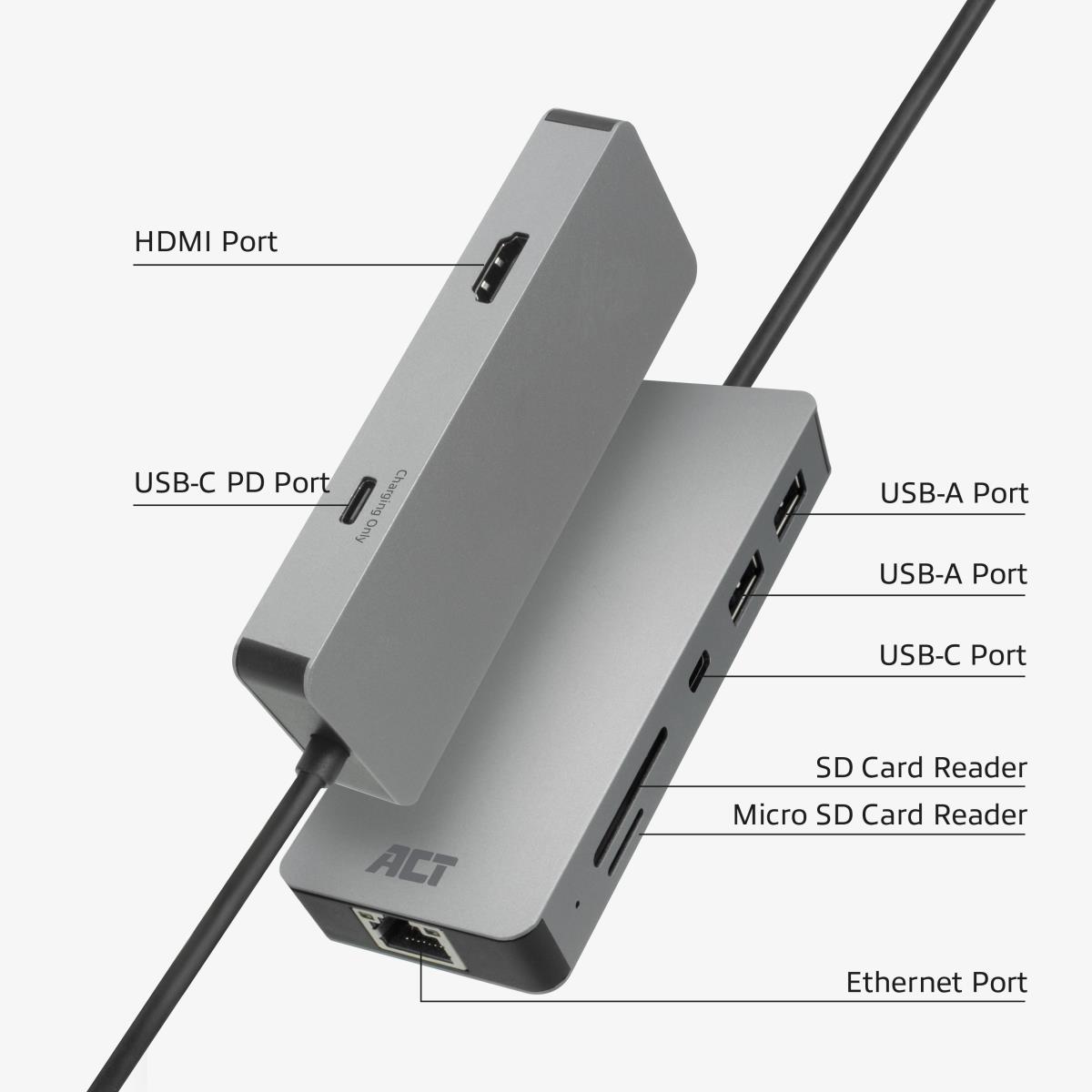

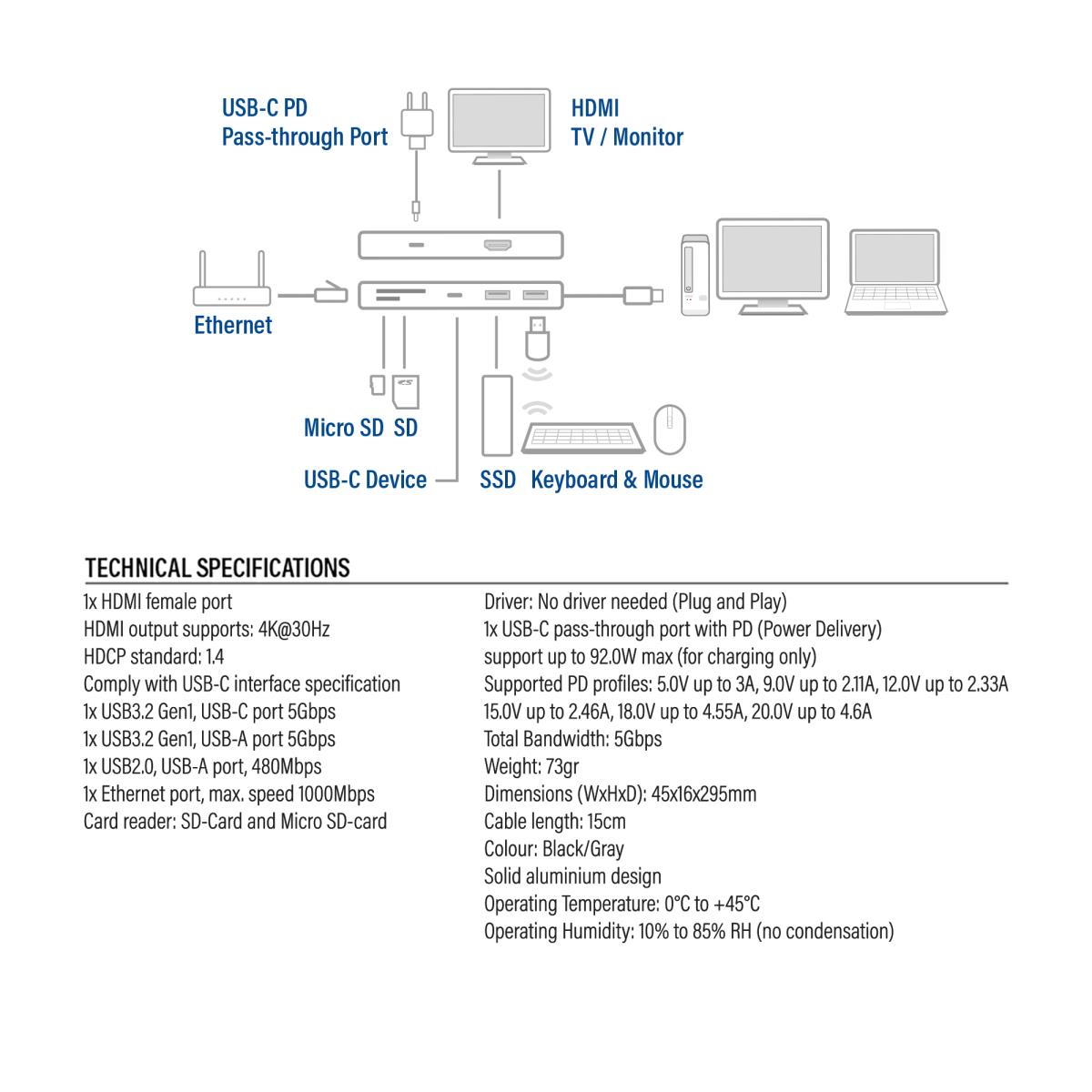

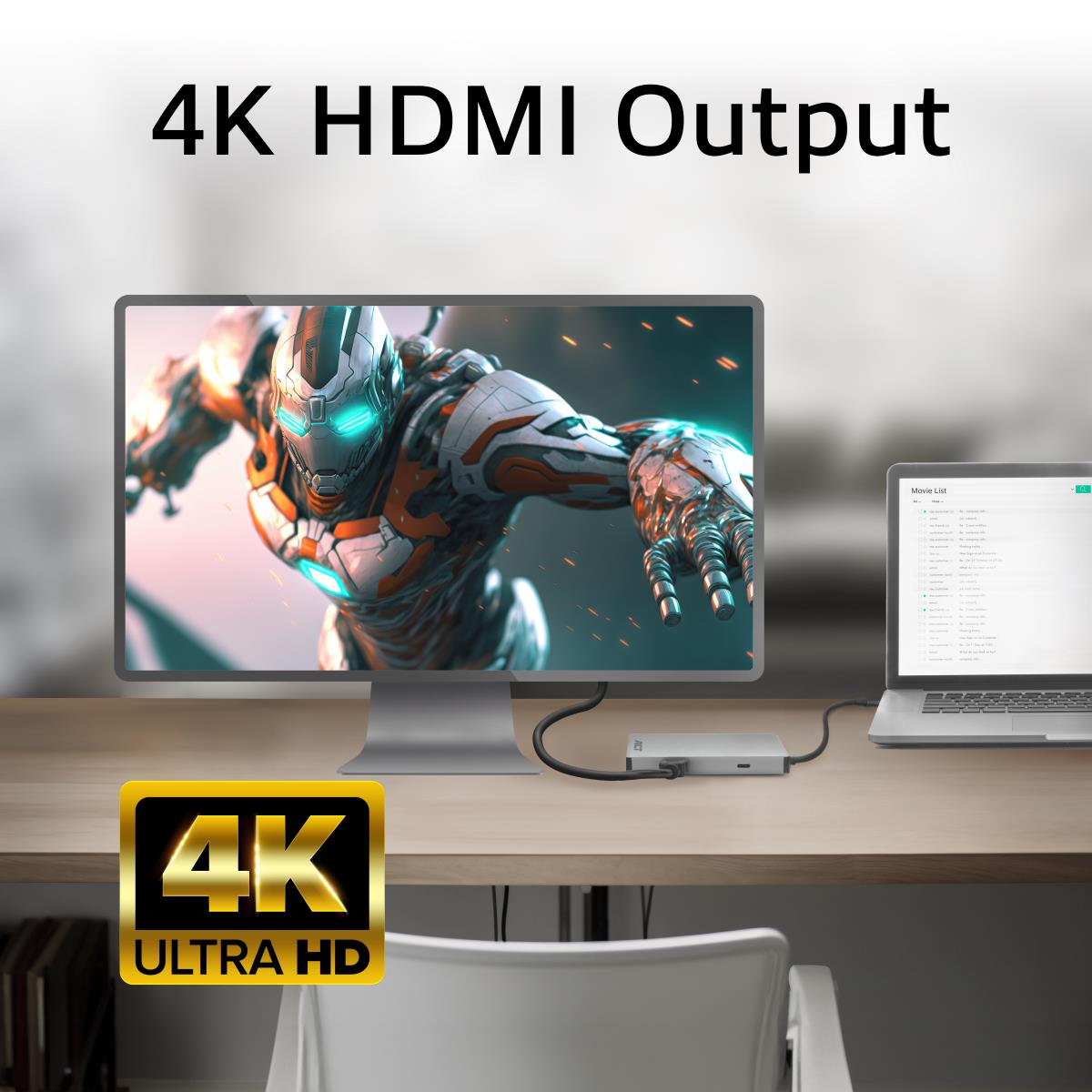

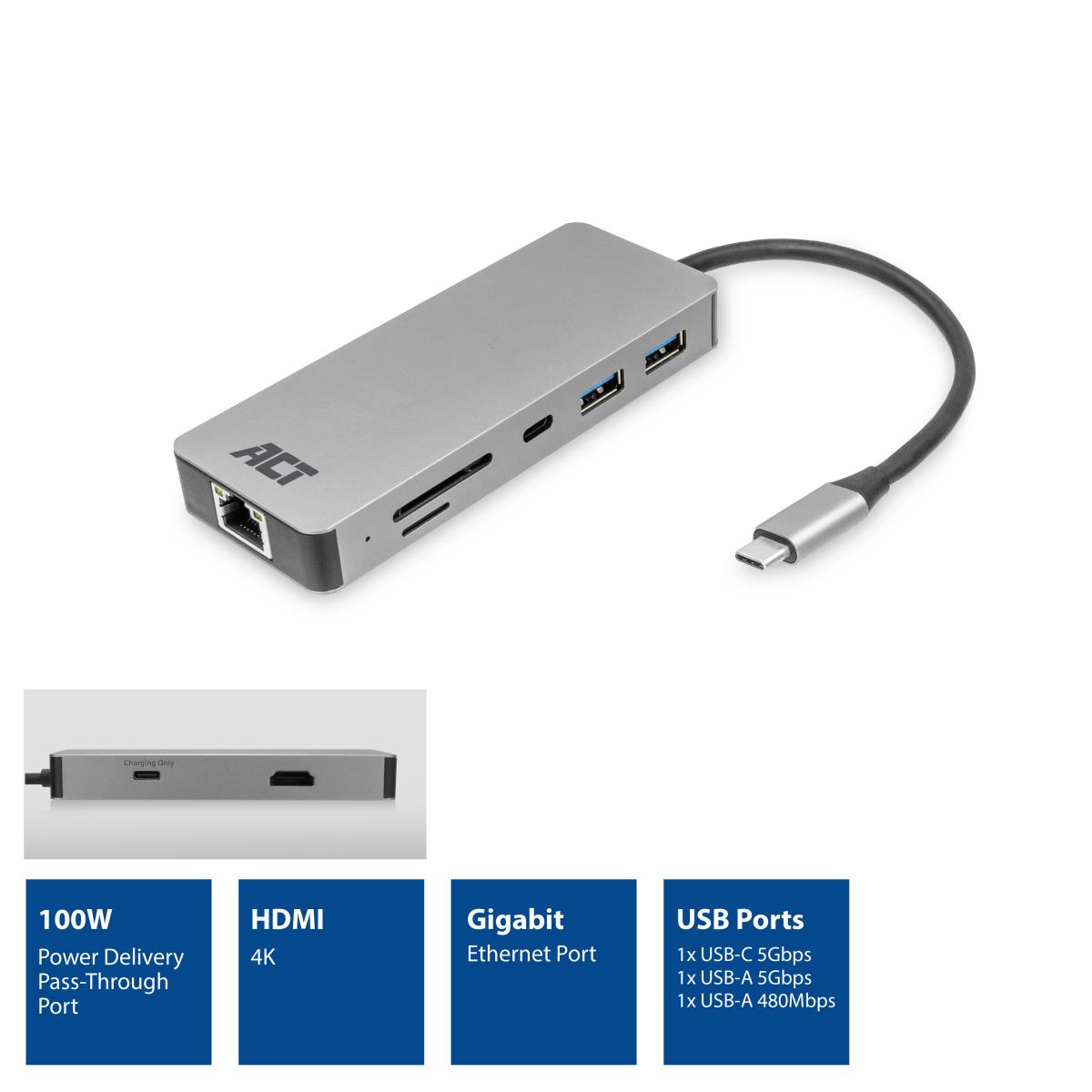

The AC7092 is a complete 7-in-1 portable docking station, also known as a multiport adapter. Add an external display by using the HDMI port. Suited for a monitor with a maximum resolution of 4K@30Hz.

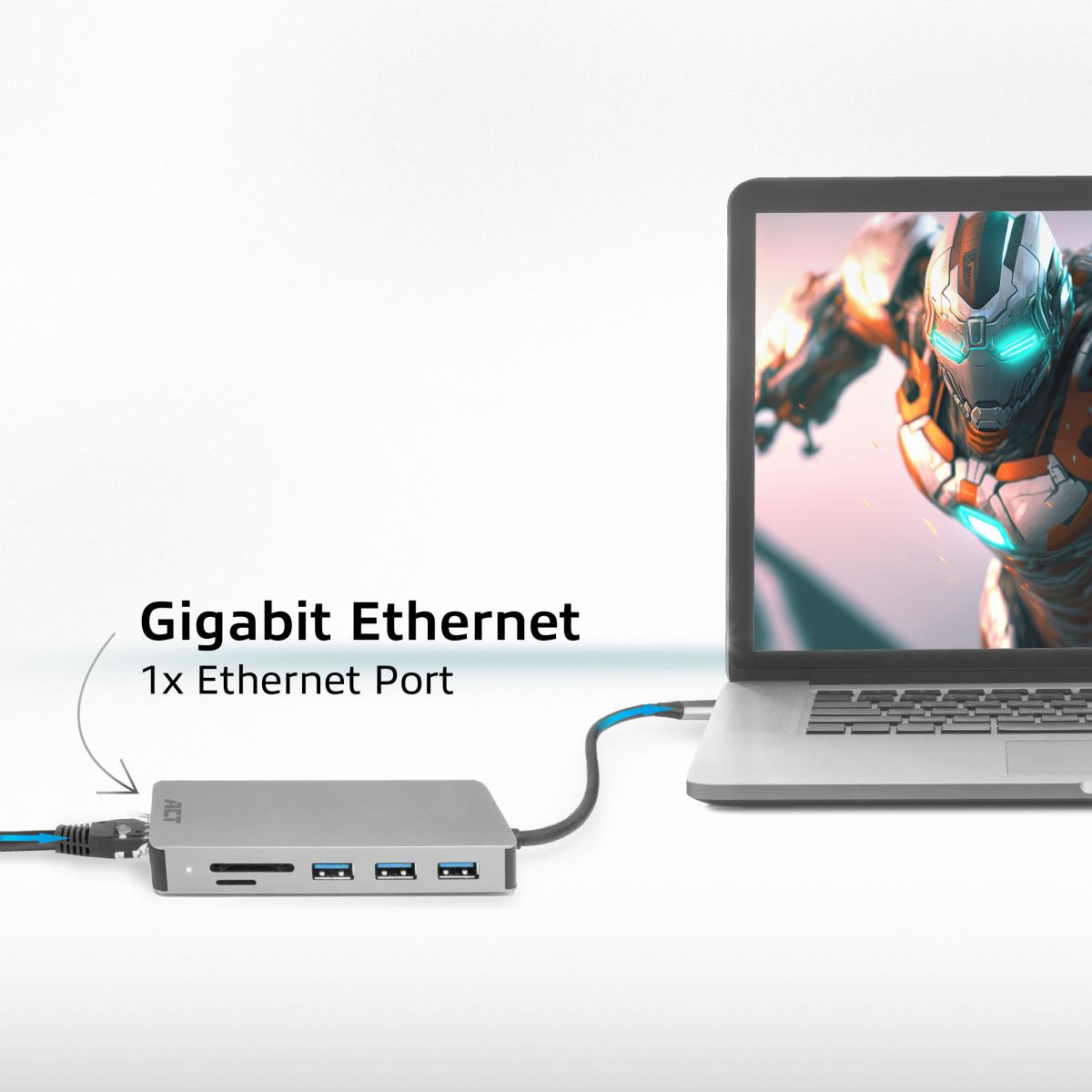

The AC7092 features Gigabit LAN. In most offices, Gigabit LAN is used to connect to the corporate network rather than the Wi-Fi network.

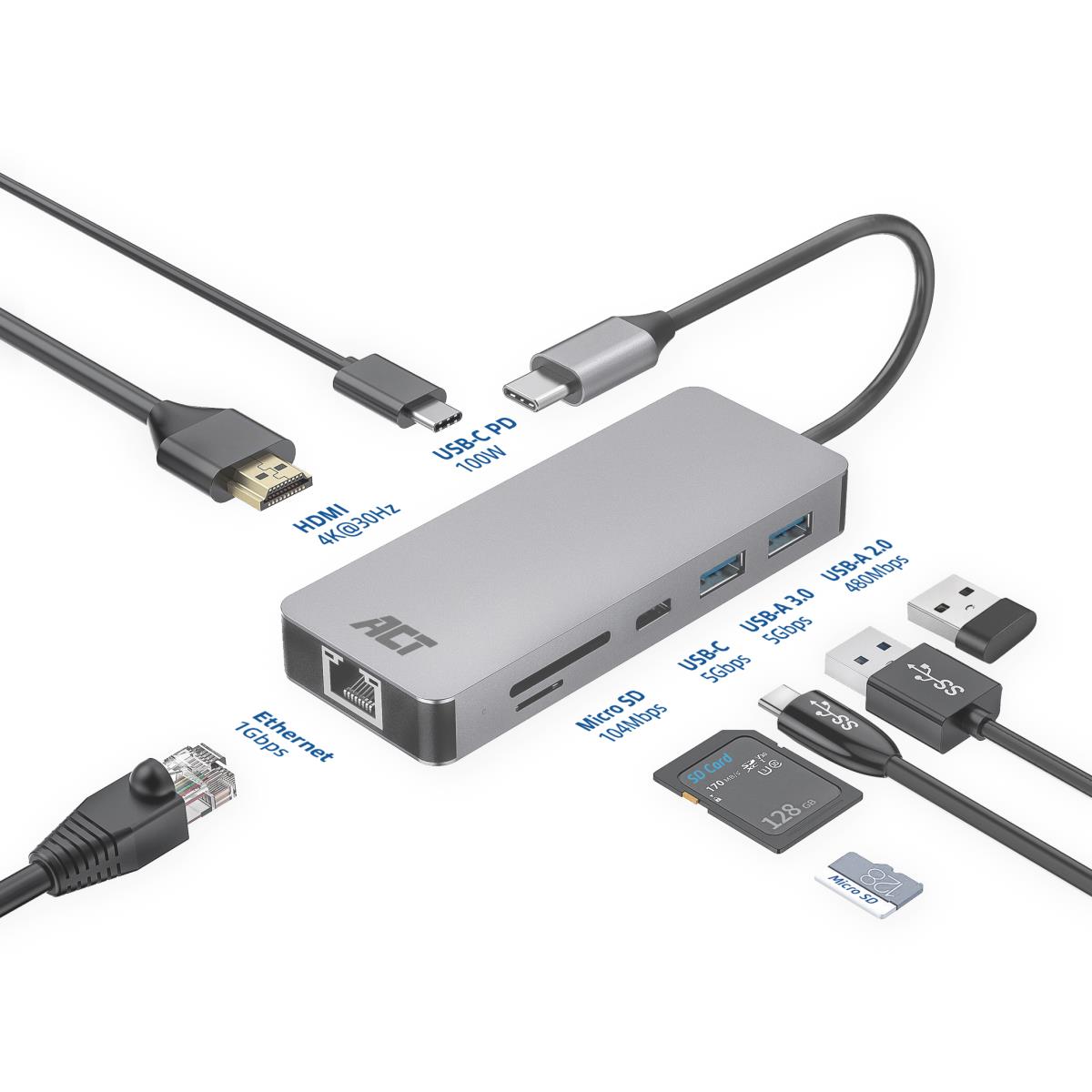

The built-in USB hub provides a USB-A 2.0 port for connecting peripherals, such as the receiver of your wireless keyboard and mouse and a USB-A 3.0 port for connecting a USB drive. Additionally, the multiport dock also has a USB-C 3.0 port, so you are ready for future products. The 3.0 ports offer SuperSpeed USB 5Gbps for transferring data to and from an external SSD or USB adapter. The built-in card reader accepts SD and Micro SD cards.

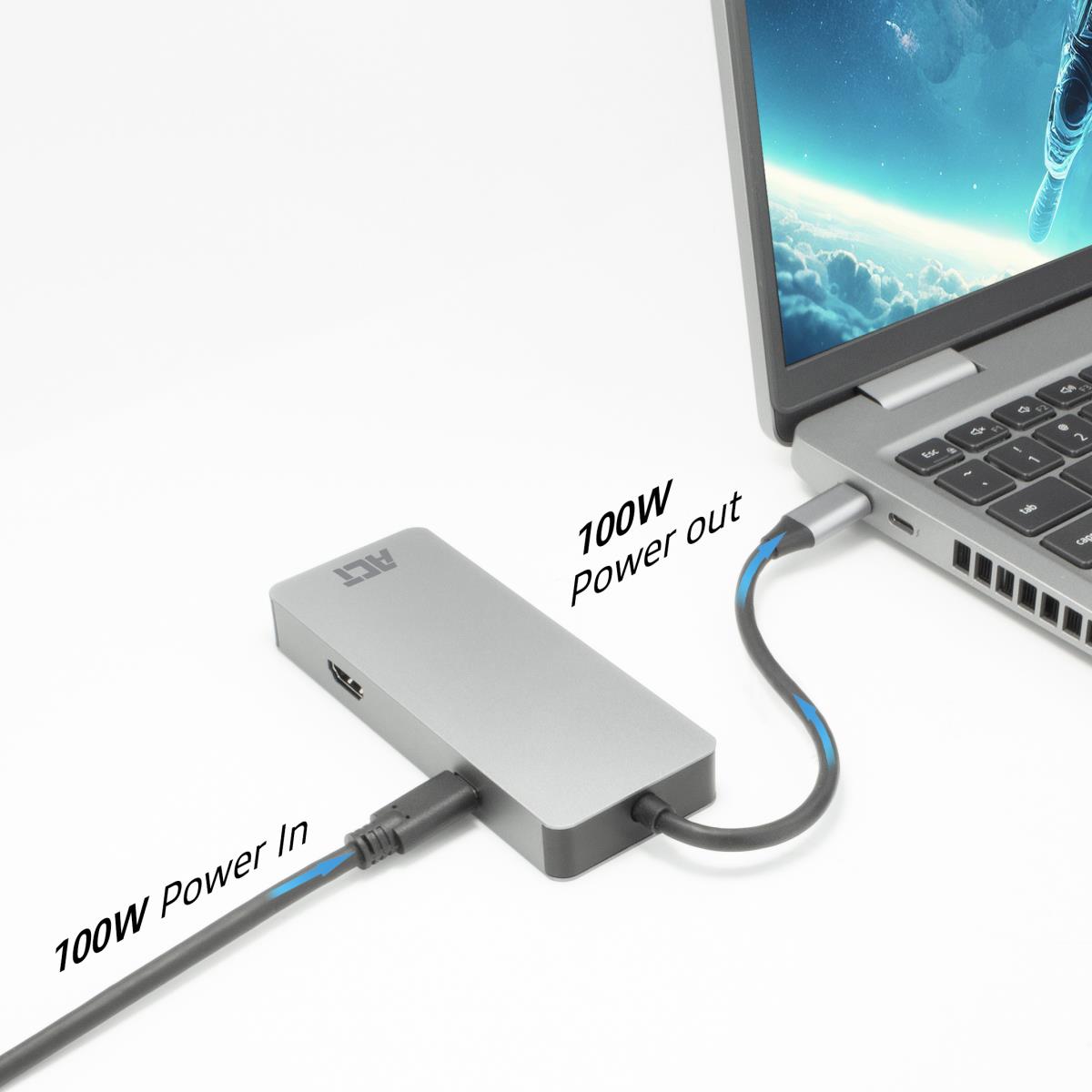

Supports Power Delivery pass-through
A USB-C port can generally support data, video, power or a combination of the three. If your notebook has a USB-C port that supports all three: data, video and power, the PD pass-through port on the AC7092 can be used to charge your laptop. Once connected to the multiport dock, the laptop is powered through the USB-C Power Delivery pass-through port, which is powered by the laptop’s USB-C power supply.
Portable aluminium design

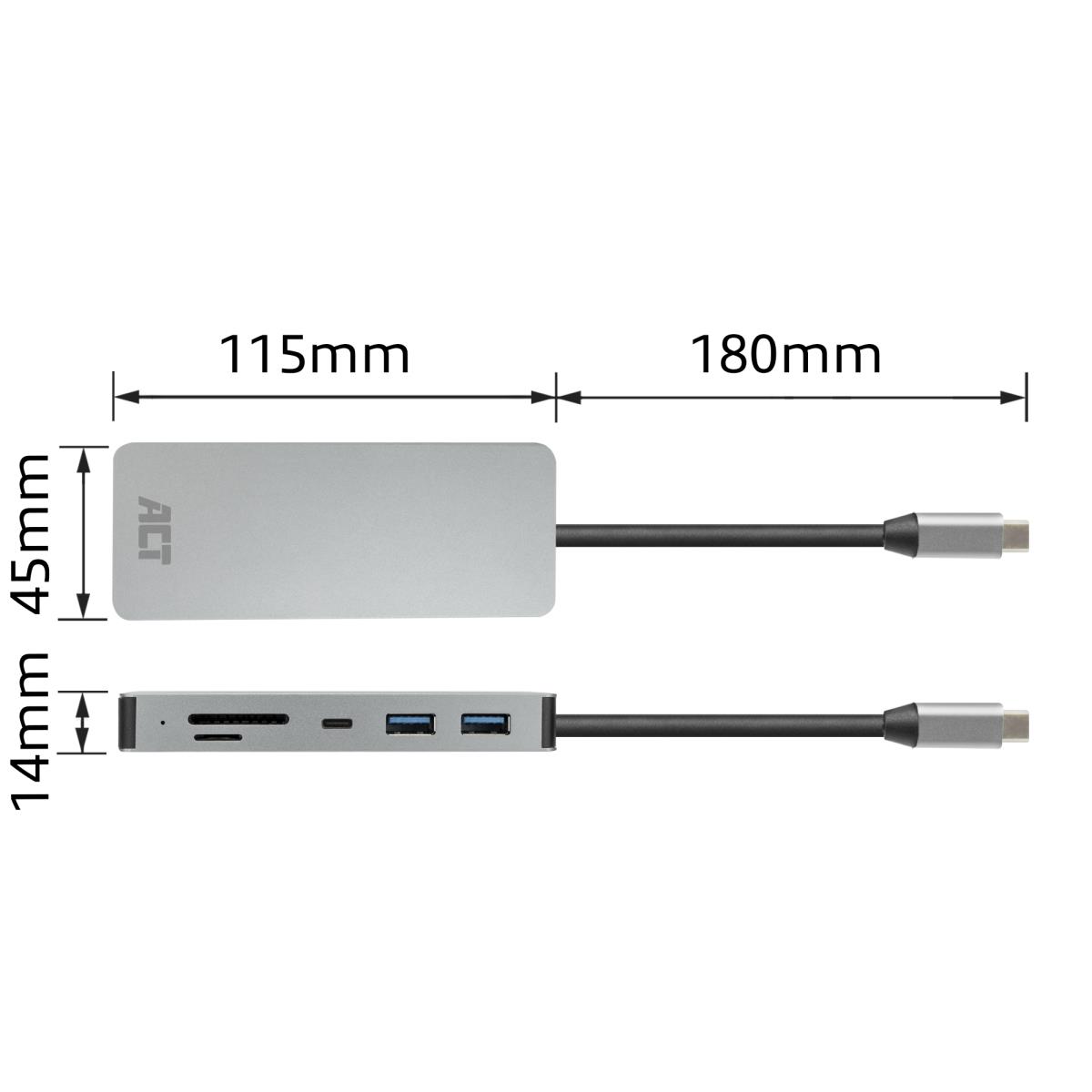

The AC7092 is a compact yet versatile device with a rugged aluminium body. Perfect for taking along in your laptop bag.
| Ports & interfaces | |
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | Yes |
| Card reader slot | 2 |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Features | |
| Supported graphics resolutions | 4096 x 2560 |
| Supported video modes | 2160p |
| Maximum resolution (HDMI) | 4096 x 2560 pixels |
| Product colour | Aluminium |
| Housing material | Aluminium |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| HD type | 4K Ultra HD |
| Cable length | 0.18 m |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Warranty | |
| Base Warranty | Non Non |
